NSM KR132 A - SINGLE PHASE ALTERNATOR 3.5 KVA AVR

  • New
NSM KR132 A - SINGLE PHASE ALTERNATOR 3.5 KVA AVR
search
  • NSM KR132 A - SINGLE PHASE ALTERNATOR 3.5 KVA AVR
  • NSM KR132 A - SAE SINGLE BEARING FORM
NSM
NSM KR132 A SAE4 disk 6.5
New product

Phase type: Single-phase
Maximum power Single-phase: 3.5 KW
Maximum power Single-phase: 3.5 KVA
Frequency: 50 Hz
Voltage: 230 V
Degree of protection: IP20
Alternator revolutions: 1500 rpm
Number of poles: 4
Efficiency: 74%
Weight: 38 Kg
Constant speed alternator
Brushes
Voltage Regulator: AVR

Technical features
Phase
Single phase
Maximum power single phase (KW)
3.5
Maximum power single phase (KVA)
3.5
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
3.5
Single-phase power (KVA)
3.5
Efficiency (%)
74
Protection degree
IP20
Motor insulation class
H
Brushes
Yes
PMG
No
Product type
Alternator
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
38
Details

NSM KR132 A

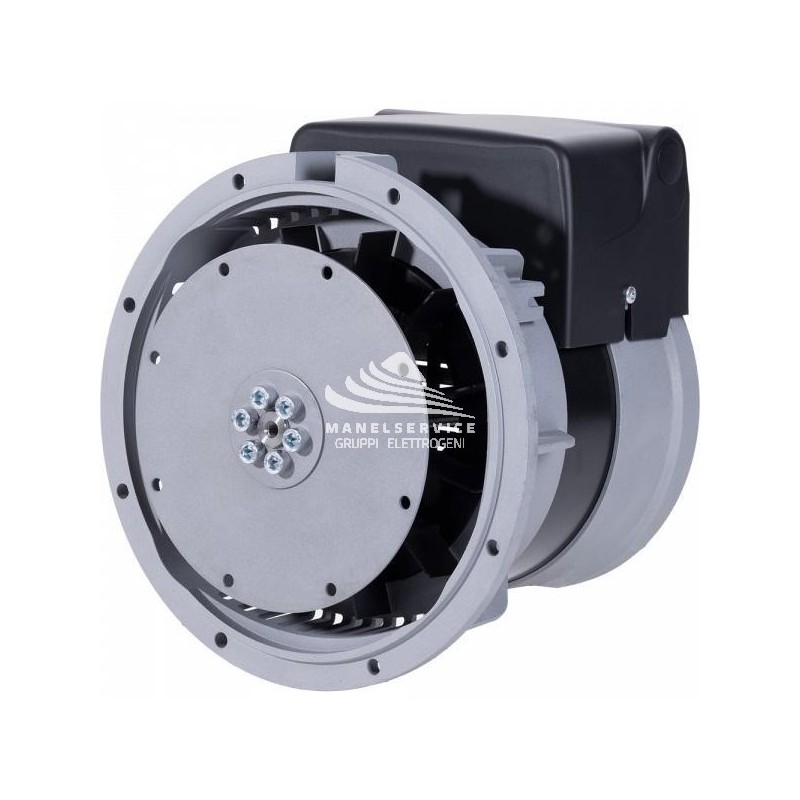

The NSM KR132 A is a 3.5 KVA single-phase constant speed alternator with AVR voltage regulator.
This alternator belongs to the industrial category with 4 poles of 1500 rpm.
The versatility of NSM products and their robust design make the industrial series suitable to meet the requirements of industry and the most demanding technological specifications required in various applications.
The digital AVR gives the user the peace of mind of having a reliable, high-performance product with protection for all types of loads and greater voltage accuracy in electrical equipment.

To couple the NSM KR132 A alternator to a main engine, you can choose between these flanges and discs:
- SAE 4 disc joint 6.5
- SAE 4 disc joint 7.5
- SAE 5 disc joint 6.5
- SAE 5 disc joint 7.5

Please check the compatibility of the available couplings with your engine before placing your order.


Not binding images and technical data.

Technical Sheet / Manuals
List price
€806.00 tax incl.
€806.00 tax excl.
Discounted Price
€475.00 tax incl.
€475.00 tax excl.
