Waveform: Pure Sine Wave Input Voltage: 12V AC cont. output at 25 °C (VA): 250 Continuous output at 25 °C / 40 °C: 200 / 175 W Maximum Power: 400 W Voltage: 110 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range (V DC): 9.2 - 17 Material and Color: aluminum (blue Ral 5012) Protection category: IP 21 Length: 260 mm Width: 165...

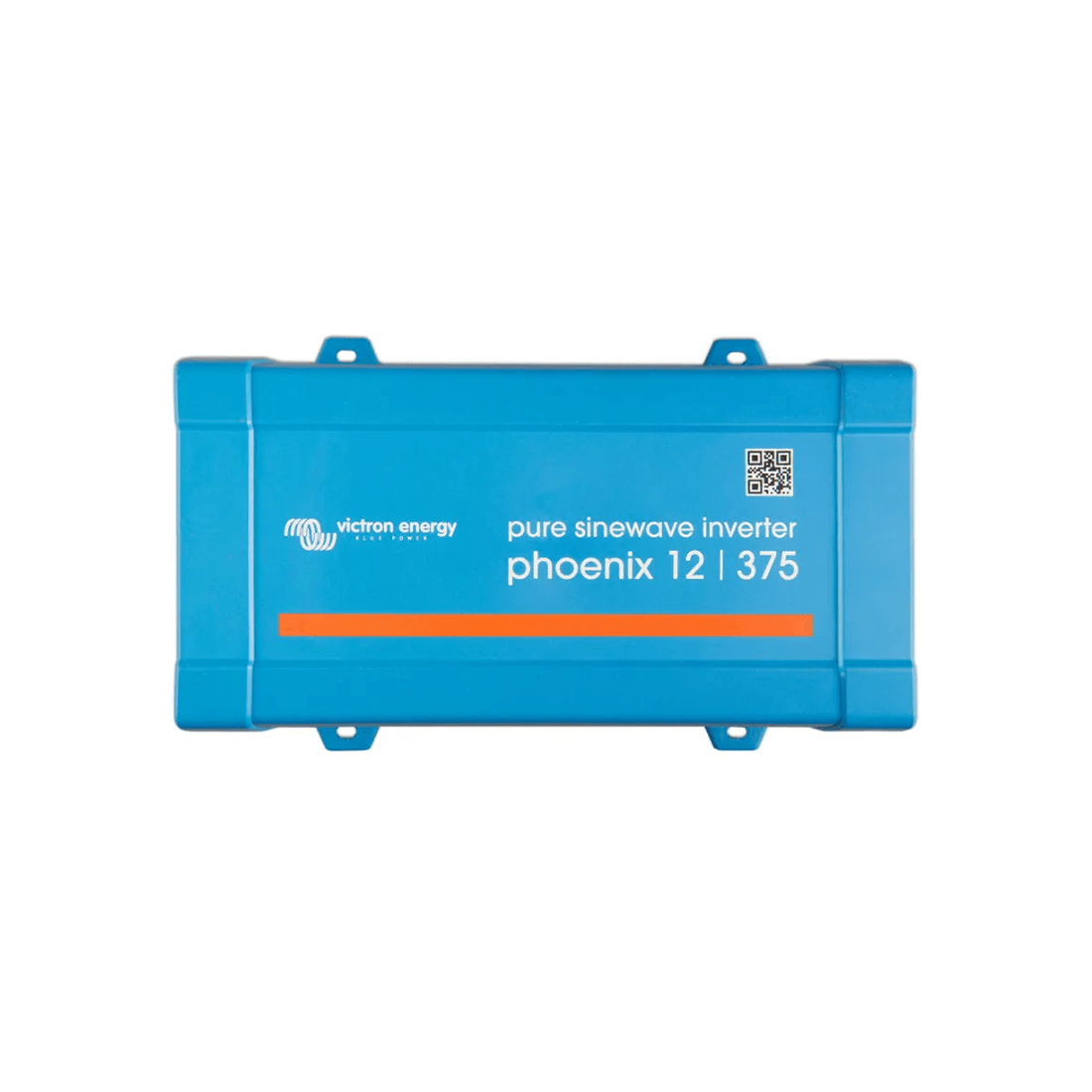

Waveform: Pure Sine Wave Input Voltage: 12V AC cont. output power at 25 °C: 375 Va Continuous power at 25 °C / 40 °C: 300 / 265 W Maximum Power: 700 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 89 / 90 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 12V AC cont. output power at 25 °C: 500 Va Continuous power at 25 °C / 40 °C: 400 / 350 W Maximum Power: 900 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 12V AC cont. output power at 25 °C: 800 Va Continuous power at 25 °C / 40 °C: 650 / 560 W Maximum Power: 1500 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 12V AC cont. output power at 25 °C: 1200 Va Continuous power at 25 °C / 40 °C: 1000 / 850 W Maximum Power: 2200 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 91 / 92 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 24V AC cont. output power at 25 °C (VA): 250 Continuous power at 25 °C / 40 °C: 200 / 175 W Maximum Power: 400 W Voltage: 110 / 230 Vac Frequency Output: 50 / 60 Hz Input voltage range (V DC): 9.2 - 17 Material and Color: aluminum (blue Ral 5012) Protection category: IP 21 Length: 260 mm Width: 165...

Waveform: Pure Sine Wave Input Voltage: 24V AC cont. output power at 25 °C: 375 Va Continuous power at 25 °C / 40 °C: 300 / 265 W Maximum Power: 700 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 89 / 90 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 24V AC cont. output power at 25 °C: 500 Va Continuous power at 25 °C / 40 °C: 400 / 350 W Maximum Power: 900 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 24V AC cont. output power at 25 °C: 800 Va Continuous power at 25 °C / 40 °C: 650 / 560 W Maximum Power: 1500 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 24V AC cont. output power at 25 °C: 1200 Va Continuous power at 25 °C / 40 °C: 1000 / 850 W Maximum Power: 2200 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 91 / 92 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 48V AC cont. output power at 25 °C (VA): 250 Continuous power at 25 °C / 40 °C: 200 / 175 W Maximum Power: 400 W Voltage: 110 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range (V DC): 9.2 - 17 Material and Color: aluminum (blue Ral 5012) Protection category: IP 21 Length: 260 mm Width: 165...

Waveform: Pure Sine Wave Input Voltage: 48V AC cont. output power at 25 °C: 375 Va Continuous power at 25 °C / 40 °C: 300 / 265 W Maximum Power: 700 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 89 / 90 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 48V AC cont. output power at 25 °C: 500 Va Continuous power at 25 °C / 40 °C: 400 / 350 W Maximum Power: 900 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 48V AC cont. output power at 25 °C: 800 Va Continuous power at 25 °C / 40 °C: 650 / 560 W Maximum Power: 1500 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 90 / 91 % Material and Color: aluminum (blue Ral 5012)<br...

Waveform: Pure Sine Wave Input Voltage: 48V AC cont. output power at 25 °C: 1200 Va Continuous power at 25 °C / 40 °C: 1000 / 850 W Maximum Power: 2200 W Voltage: 120 / 230 Vac Output Frequency: 50 / 60 Hz Input voltage range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0 Vdc Maximum efficiency: 91 / 92 % Material and Color: aluminum (blue Ral 5012)<br...

Supply Voltage (V DC): 9.5 – 17V Output Voltage: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous Output Power at 25°C (VA): 1200 Continuous Output Power at 25°C / 40°C / 65°C (W): 1000 / 900 / 600 Maximum Power (W): 2400 Maximum Efficiency 12/ 24 /48V (%): 92 / 94 / 94 Zero Load Power 12 / 24 / 48V (W): 8 / 10 / 12 Zero Load Power in AES mode (W): 5 / 8 / 10<br...

Input Voltage (V DC): 9.5 – 17V Output Voltage: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous Output Power at 25ºC (VA): 1600 Continuous Output Power at 25ºC / 40ºC / 65ºC (W): 1300 / 1200 / 800 Maximum Power (W): 3000 Maximum Efficiency 12/24/48V (%): 92 / 94 / 94 No-Load Power Consumption 12 / 24 / 48V (W): 8 / 10 / 12 No-Load Power Consumption in AES mode...

Input Voltage (V DC): 9.5 – 17V Output Voltage: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous Output Power at 25°C (VA): 2000 Continuous Output Power at 25°C / 40°C / 65°C (W): 1600 / 1450 / 1000 Maximum Power (W): 4000 Maximum Efficiency 12/24/48V (%): 92 / 92 No-Load Power Consumption 12 / 24 / 48V (W): 9 / 11 No-Load Power Consumption in AES mode (W): 7 /...

OUT OF PRODUCTION Supply voltage (V DC): 19 - 33V Output Output: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous power output 25ºC (VA): 1200 Continuous power output 25ºC / 40ºC / 65ºC(W): 1000 / 900 / 600 Maximum power output (W) 2400 Maximum efficiency 12/ 24 /48V (%) 92 / 94 / 94 Zero load power 12 / 24 / 48V (W) 8 / 10 / 12 Zero load power in AES...

Supply voltage (V DC): 19 - 33V Output Output: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous power output 25ºC (VA): 1600 Continuous output power at 25ºC / 40ºC / 65ºC(W) 1300 / 1200 / 800 Maximum power output (W) 3000 Maximum efficiency 12/ 24 /48V (%) 92 / 94 / 94 Zero load power 12 / 24 / 48V (W) 8 / 10 / 12 Zero load power in AES mode (W) 5 / 8 / 10<br...

Supply voltage (V DC): 19 - 33V Output Output: 230V ± 2% / 50/60Hz ± 0.1% (1) Continuous power output 25ºC (VA): 2000 Continuous power output 25ºC / 40ºC / 65ºC(W): 1600 / 1450 / 1000 Maximum power output (W) 4000 Maximum efficiency 12/ 24 /48V (%) 92 / 92 Zero load power 12 / 24 / 48V (W) 9 / 11 Zero load power in AES mode (W) 7 / 9 Zero load power in...

Input voltage range 9.3 - 17 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 1600 VA Output cont. power at 25°C | 40°C | 65°C: 1300 W | 1200 W | 65°C 800 W Peak power 3000 W Max. efficiency 12V : 92% No-load power 12V : 8 W No-load power in ECO mode: 0.6W Programmable relay: Yes ECO mode start and stop power:...

Input Voltage Range: 9.3 – 17 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Continuous Output Power at 25°C: 2000 VA Continuous Output Power at 25°C | 40°C | 65°C: 1600 W | 1450 W | 65°C 1000 W Peak Power: 4000 W Maximum Efficiency at 12V: 92% No-Load Power at 12V: 8 W No-Load Power in ECO Mode: 0.6W Programmable Relay: Yes ECO Mode...

Input voltage range 9.3 - 17 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 3000 VA Output cont. power at 25°C | 40°C | 65°C: 2400 W | 2200 W | 65°C 1700 W Peak power 6000 W Max. efficiency 12V : 93% No-load power 12V : 12 W No-load power in ECO mode: 1.5W Programmable relay: Yes ECO mode start and stop power:...

Input voltage range 18.6 - 34 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 1600 VA Output cont. power at 25°C | 40°C | 65°C: 1300 W | 1200 W | 65°C 800 W Peak power 3000 W Max. efficiency 24V : 94 % No-load power 24V : 9 W No-load power in ECO mode: 1.3 W Programmable relay: Yes ECO mode start and stop...

Input voltage range 18.6 - 34 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 2000 VA Output cont. power at 25°C | 40°C | 65°C: 1600 W | 1450 W | 65°C 1000 W Peak power 4000 W Max. efficiency 24V : 94 % No-load power 24V : 9 W No-load power in ECO mode: 9 W Programmable relay: Yes ECO mode start and stop power:...

Input voltage range 18.6 - 34 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 3000 VA Output cont. power at 25°C | 40°C | 65°C: 2400 W | 2200 W | 65°C 1700 W Peak power 6000 W Max. efficiency 24V : 94 % No-load power 24V : 13 W No-load power in ECO mode: 1.9 W Programmable relay: Yes ECO mode start and stop...

Input voltage range: 37.2 - 68 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 1600 VA Output cont. power at 25°C | 40°C | 65°C: 1300 W | 1200 W | 65°C 800 W Peak power 3000 W Max. efficiency 48 V : 94 % No-load power 48 V : 11 W No-load power in ECO mode: 2.1 W Programmable relay: Yes ECO mode start and stop...

Input voltage range 37.2 - 68 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 2000 VA Output cont. power at 25°C | 40°C | 65°C: 1600 W | 1450 W | 65°C 1000 W Peak power 4000 W Max. efficiency 48V : 94 % No-load power 48V : 11 W No-load power in ECO mode: 2.1 W Programmable relay: Yes ECO mode start and stop...

Input voltage range: 37.2 - 68 V Output Voltage: 230 VAC ± 2% 50 Hz or 60 Hz ± 0.1% (1) Output cont. power at 25°C: 3000 VA Output cont. power at 25°C | 40°C | 65°C: 2400 W | 2200 W | 65°C 1700 W Peak power 6000 W Max. efficiency 48 V : 95 % No-load power 48 V: 15 W No-load power in ECO mode: 2.8 W Programmable relay: Yes ECO mode start and stop...

Supply Voltage (V DC): 9.5 – 17V Output Voltage: 120V ± 2% / 60Hz ± 0.1% (1) Continuous Output Power at 25°C: 3000 VA Continuous Output Power at 25°C / 40°C / 65°C (W): 2400 / 2200 / 1700 Maximum Power: 6000 W Maximum Efficiency at 12V: 93% Zero Load Power at 12V: 20 W Zero Load Power in AES mode: 15 W Zero Load Power in Search mode: 8 W Width:...

Supply Voltage: 19 – 33 Vdc Output Voltage: 120V ± 2% / 60Hz ± 0.1% (1) Continuous Output Power at 25°C: 3000 VA Continuous Output Power at 25°C / 40°C / 65°C (W): 2400 / 2200 / 1700 Maximum Power: 6000 W Maximum Efficiency at 12V: 94% Zero Load Power at 12V: 20 W Zero Load Power in AES mode: 15 W Zero Load Power in Search mode: 10 W Width: 258...

Supply Voltage: 38-66 Vdc Output Voltage: 230 V ± 2% / 50 / 60Hz ± 0.1% (1) Continuous Output Power at 25°C: 3000 VA Continuous Output Power at 25°C / 40°C / 65°C (W): 2400 / 2200 / 1700 Maximum Power: 6000 W Maximum Efficiency at 48V: 95% No-Load Power at 48V: 25 W No-Load Power in AES mode: 20 W No-Load Power in Search mode: 12 W Width: 258...

Supply voltage: 19-33 Vdc Output Output: 230 V ± 2% / 50 / 60Hz ± 0.1% (1) Continuous power output at 25ºC: 5000 VA Continuous power output at 25ºC / 40ºC / 65ºC (W): 4000 / 3700 / 3000 Maximum power output: 10000 W Maximum efficiency 24V: 94 % Zero load power 24V: 30 W Zero load power in AES mode: 25 W Zero load power in Search mode: 10 W Width:...

Supply voltage: 38 - 66 Vdc Output Output: 230 V ± 2% / 50 / 60Hz ± 0.1% (1) Continuous power output at 25ºC: 5000 VA Continuous power output at 25ºC / 40ºC / 65ºC (W): 4000 / 3700 / 3000 Maximum power output: 10000 W Maximum efficiency 48V: 95 % Zero load power 48V: 35 W Zero load power in AES mode: 30 W Zero load power in Search mode: 15 W<br...

Power supply (AC V): 3x400 Supply voltage range (VAC): 320-450 Frequency (Hz): 45-65 Power factor: 1 Boost" charge (V DC): 28.5 Float' charge (V DC): 26.5 Main charging current (A): 100 Auxiliary charge current (A): 4 Charging mode: IUoUo (3-stage charging) Battery capacity (Ah): 500-1000 Operating temperature: -40 to +50°C (-40 to 122°F)<br...

Supply voltage range (VAC): 3x400 Supply voltage range (VAC): 320-450 Frequency (Hz): 45-65 Power factor: 1 "Boost" charge (V DC): 28.5 "Float" charge (V DC): 26.5 Main charging current (A): 50 Auxiliary charging current (A): 4 Charging mode: IUoUo (3-step charging) Battery capacity (Ah): 250-500 Operating temperature: -40 to +50°C (-40 to...

PowerControl: No Parallel and three-phase operation: Yes Transfer switch: 16A INVERTER Input voltage range: 9.5 to 17 V Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% Continuous output power at 25℃: 500 VA Continuous output power at 25℃ / 40℃ / 65℃: 430 W / 400 W / 300W Peak power 900 W Maximum efficiency 90% Zero load power...

PowerControl: No Parallel and Three-Phase Operation: Yes Transfer Switch: 16A INVERTER Input Voltage Range: 9.5 – 17 V Output Voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% Continuous Output Power at 25°C: 500 VA Continuous Output Power at 25℃ / 40℃ / 65℃: 430 W / 400 W / 300W Peak Power: 900 W Maximum Efficiency: 91% Zero Load Power...

PowerControl: No Parallel and Three-Phase Operation: Yes Transfer Switch: 16A INVERTER Input Voltage Range: 38 - 66 V Output Voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1% Continuous Output Power at 25°C: 500 VA Continuous Output Power at 25℃ / 40℃ / 65℃: 430 W / 400 W / 300W Peak Power: 900 W Maximum Efficiency: 92% Zero Load Power...
