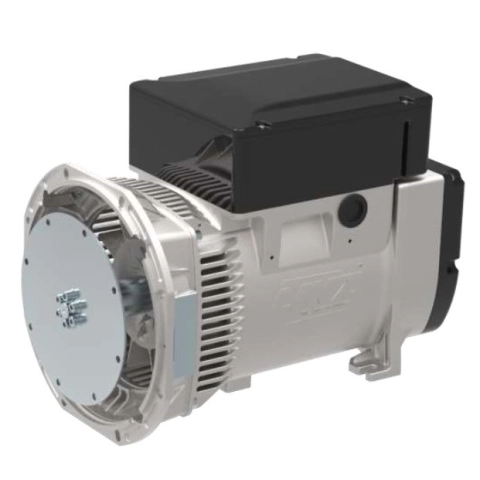

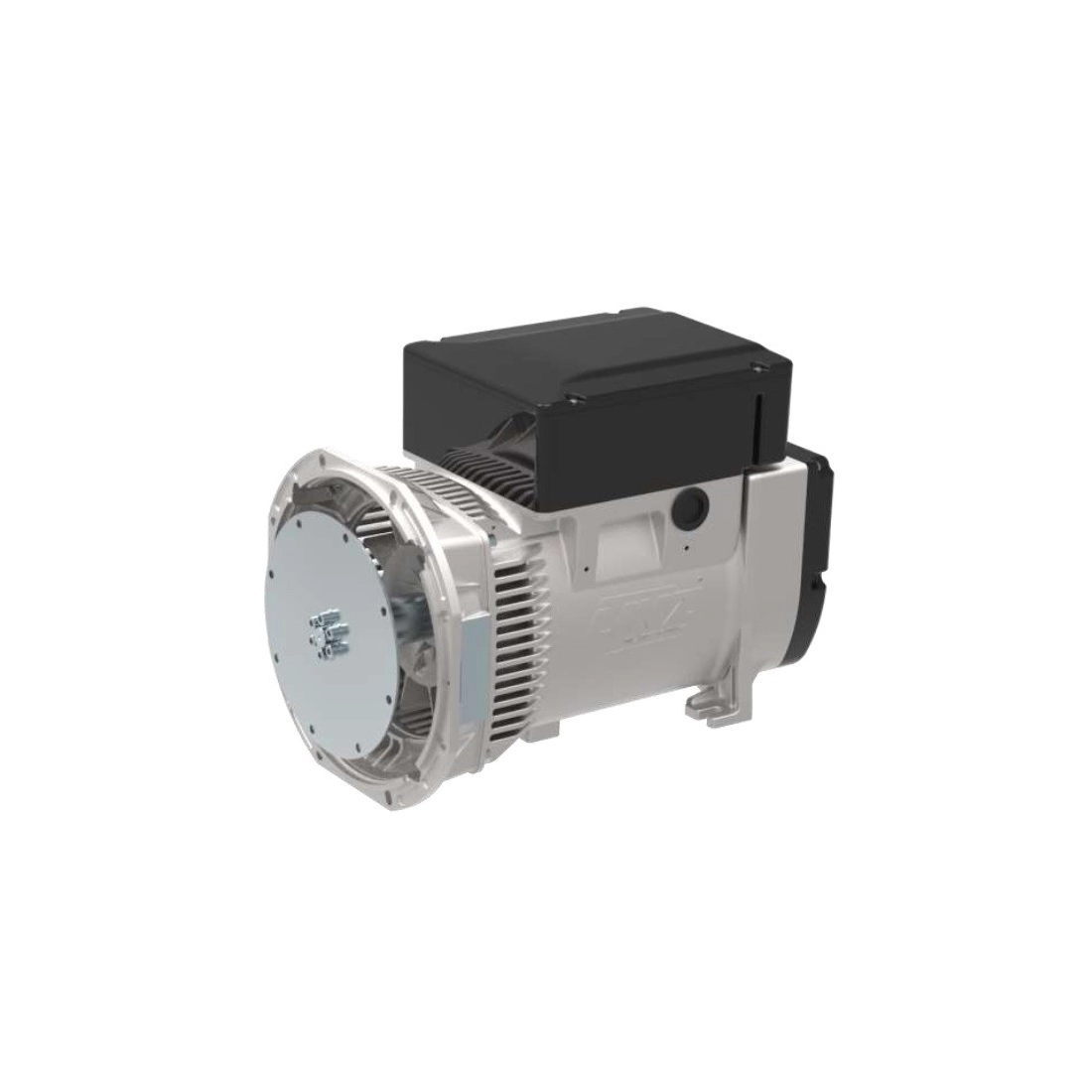

LINZ E1X13S A/4 Three-phase alternator 4 poles 6.5 kVA 50 Hz AVR

LINZ E1X13S A/4 Three-phase alternator 4 poles 6.5 kVA 50 Hz AVR
search
  • LINZ E1X13S A/4 Three-phase alternator 4 poles 6.5 kVA 50 Hz AVR
  • LINZ E1X13S A/4 Three-phase alternator 4 poles 6.5 kVA 50 Hz AVR
LINZ ELECTRIC
E1X13S A/4 50 Hz J609b
New product

Rated power at 50 Hz (kVA): 6.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 2.6 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
5.2
Continuous power three phase (KVA)
6.5
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
6.5
Protection degree
IP21
Motor insulation class
H

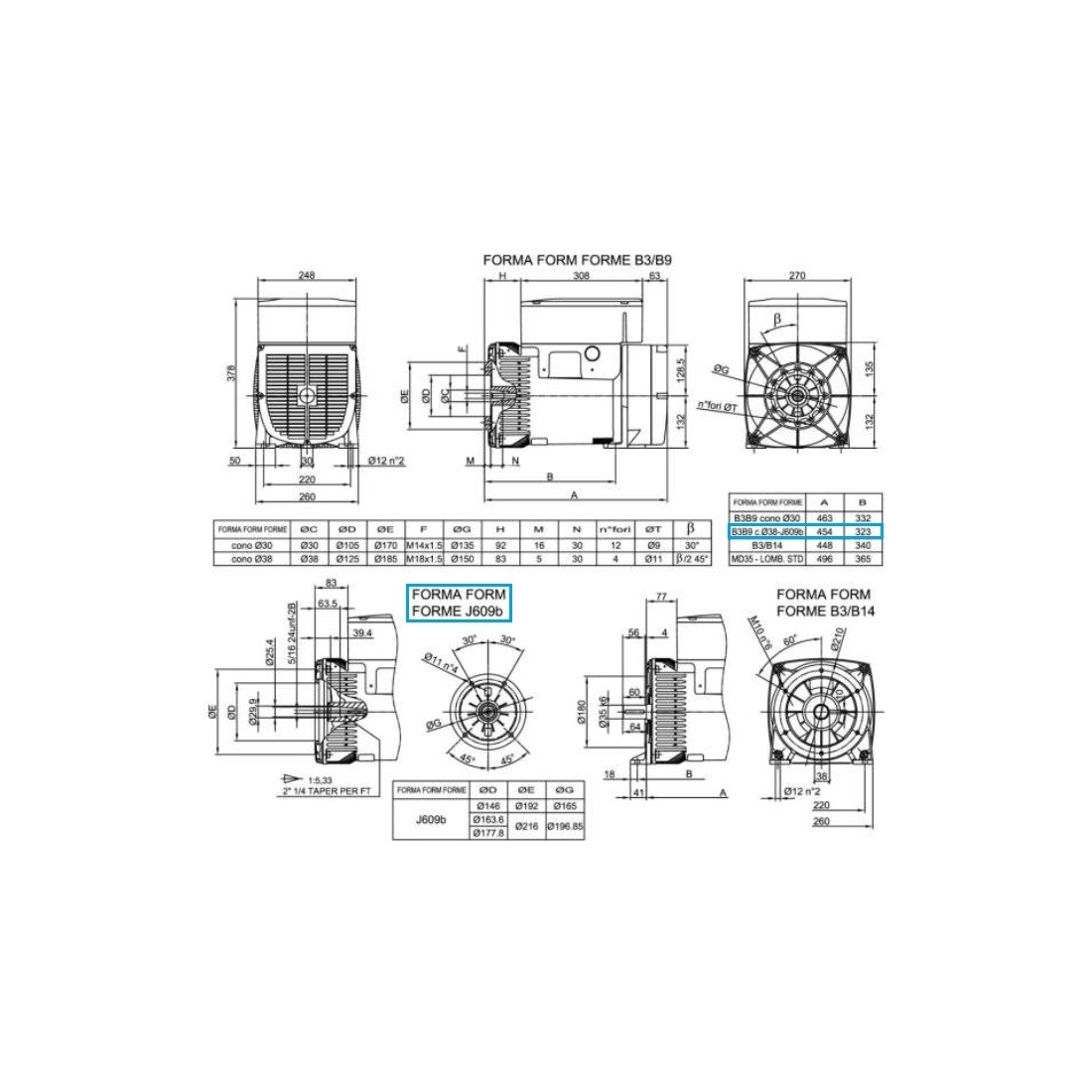

Length (mm)
454
Width (mm)
270
Height (mm)
378
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
59.4
Details

E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechnically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION

Technical Sheet / Manuals
Related Accessories
List price
1.659,20 € tax incl.
1.360,00 € tax excl.
Discounted Price
1.327,35 € tax incl.
1.087,99 € tax excl.
