Welcome to the dedicated eCommerce RAYWIN
Raywin Powertrain Technology is a joint company between YUCHAI Group (China's TOP500 Enterprises) and RATO Group (China's TOP500 Manufacturing Enterprises). Combining British, Italian, Japanese, prestigious experts and based on YUCHAI National Research and Development Center, they develop...
-
CATEGORIES

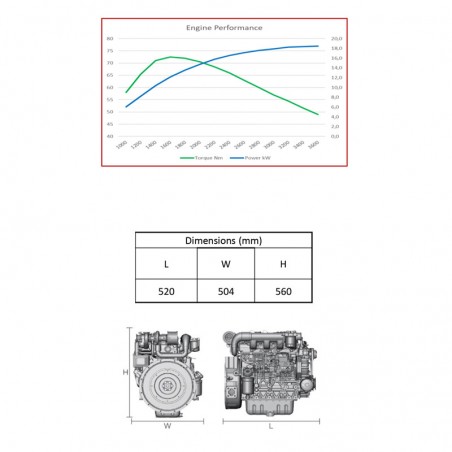

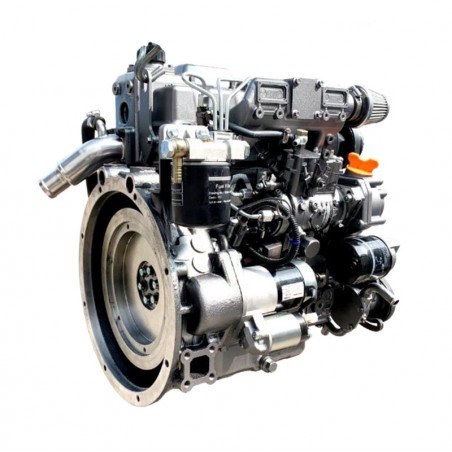

RAYWIN 3C11 MARINE ENGINE 18.5 KW DIESEL 3600 RPM
- Fuel
- Diesel
- Engine
- RAYWIN 3C1101 4 tempi
- Starting system
- Electric 12 Vcc
- Engine capacity (cm³)
- 1070
- Number cylinders
- 3
- Cylinders' position
- In line
- Cooling
- Liquid
- Bore x stroke (mm)
- 76 x 78.4
- Compression ratio
- 24 : 1
- Net power (kW)
- 18.5
- Nominal power continuous
- 1500 rpm 9 kW (12 HP) / 1800 rpm 10 kW (13 HP)
- Mechanical power (hp)
- 25
- Length (mm)
- 520
- Width (mm)
- 504
- Height (mm)
- 560
- Dry weight (Kg)
- 115
- Engine manufacturer
- RAYWIN

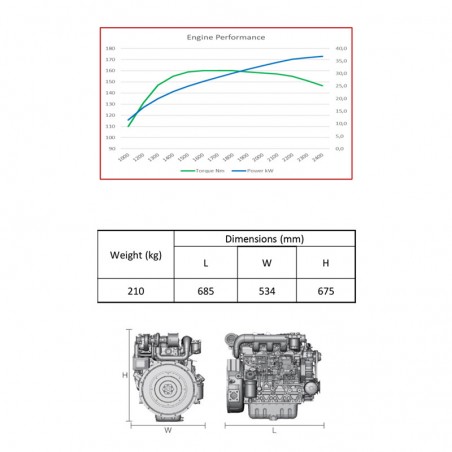

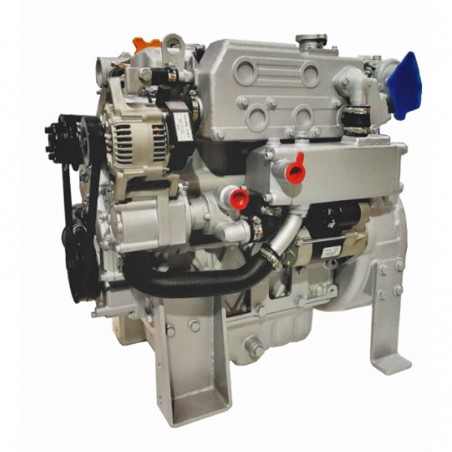

RAYWIN 4D24 MARINE ENGINE 36,8 KW DIESEL 2400 RPM
- Fuel
- Diesel
- Engine
- RAYWIN 4D2400 4 tempi
- Starting system
- Electric 12 Vcc
- Engine capacity (cm³)
- 2450
- Number cylinders
- 4
- Cylinders' position
- In line
- Cooling
- Liquid
- Bore x stroke (mm)
- 87 X 103
- Compression ratio
- 19 : 1
- Net power (kW)
- 36.8
- Nominal power continuous
- 1500 rpm 23 kW (30 HP) / 1800 rpm 27 kW (36 HP)
- Mechanical power (hp)
- 49
- Length (mm)
- 685
- Width (mm)
- 534
- Height (mm)
- 675
- Dry weight (Kg)
- 210
- Engine manufacturer
- RAYWIN
RAYWIN 4D24 MARINE ENGINE 36,8 KW DIESEL 2400 RPM

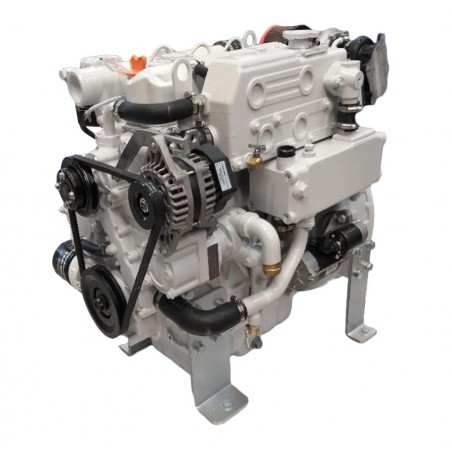

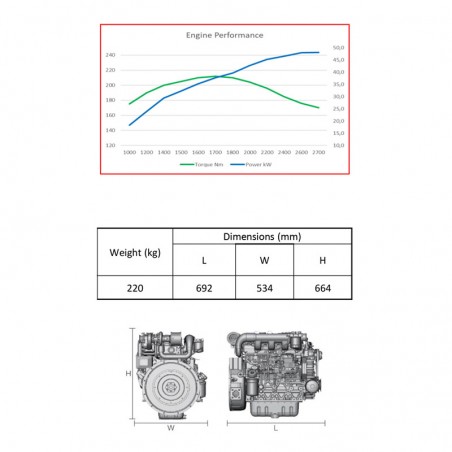

RAYWIN 4D24T MARINE ENGINE 48 KW DIESEL 2700 RPM
- Fuel
- Diesel
- Engine
- RAYWIN 4D24T00 4 tempi
- Starting system
- Electric 12 Vcc
- Engine capacity (cm³)
- 2450
- Number cylinders
- 4
- Cylinders' position
- In line
- Cooling
- Liquid
- Bore x stroke (mm)
- 87 X 103
- Compression ratio
- 17,8 : 1
- Net power (kW)
- 48
- Nominal power continuous
- 1500 rpm 36 kW (48 HP) / 1800 rpm 36 kW (48 HP)
- Mechanical power (hp)
- 64
- Length (mm)
- 685
- Width (mm)
- 534
- Height (mm)
- 644
- Dry weight (Kg)
- 220
- Engine manufacturer
- RAYWIN
RAYWIN 4D24T MARINE ENGINE 48 KW DIESEL 2700 RPM
Raywin Powertrain Technology is a joint company between YUCHAI Group (China's TOP500 Enterprises) and RATO Group (China's TOP500 Manufacturing Enterprises). Combining British, Italian, Japanese, prestigious experts and based on YUCHAI National Research and Development Center, they develop eco-friendly compact off-highway engines and energy systems. Each item is developed with reliable, compact, low noise, high efficiency and eco-friendly features.
As per the long-term strategic planning by YUCHAI Group and RATO Group, RAYWIN products range from 0.5L to 3.3L displacement, 2-cylinder, 3-cylinder and 4-cylinder water-cooled diesel engines. SQE professional team with multiple quality control plans ensure the standardized production. All products can meet the varied requirements in agriculture, construction, forest & garden, power generation, industry and marine applications.
