      MJB 400 MB4 SAE1 d14

      ALTERNATOR 1050KVA MJB 400 MB4

      Phase type: Three phase
      Maximum power 50Hz: 1050KVA
      Maximum power 50Hz: 840KW
      Maximum power 60Hz: 1320KVA
      Maximum power 60Hz: 1055KW
      Frequency: 50 - 60Hz
      Voltage: 400V / 480V
      Protection degree: IP23
      A alternator revolutions: 1500 / 2250rpm
      Number of poles: 4
      Yield: 96. 3%
      Weight: 2300 Kg
      Constant speed
      AVR

      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MARELLI MOTORI
      MJB 400 MB4 SAE1 d14

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power three phase (KW)
      840
      Maximum power three phase (KVA)
      1050
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Poles
      4
      Efficiency (%)
      96.3
      Protection degree
      IP23
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      2300

      Specific References

      New

      MARELLIMOTORI MJB 400MB4 ALTERNATOR 1050KVA THREE-PHASE

      MARELLIMOTORI MJB 400MB4 is a three-phase alternator capable of delivering a power of 1050KVA 744KW, comes complete with AVR.

      The frame of the alternator designed by MarelliMotori is equipped with side ribs to increase the resistance in addition the construction is made of strong welded steel
      The 1050KVA MarelliMotori alternators for continuous operation are designed to meet the vibration levels according to the standards, therefore they have a spheroidal cast iron or grey cast iron shielding.

      The shaft of the MJB 400MB4 is made of carbon steel and obtained by rolling. The shaft is obtained by forging from 290 mm diameter and is tested at the manufacturer in order to verify the absence of defects.

      The stator/motor core of MarelliMotori is laminated and enamelled on both sides to minimize eddy current losses
      The rotor of MJB 400MB4 is of salient pole type, made with class H flat copper wire insulated with enamel coating.
      The winding is held by high quality steel through rods.

      All MarelliMotori are equipped with a large damping cage and are suitable for parallel operation with other generators, if equipped with the parallelization unit.
      All MarelliMotori alternators can be designed to meet specific reactance values (x'd and x''d).

      The MarelliMotori alternators are all equipped with voltage regulators. For the correct voltage supply MARELLIMOTORI MJB 400MB4 1050KVA needs an electronic control system, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator). It guarantees the proper functioning of the machine and above all of the electrical network behind it.

      The AVR is an electronic device that converts alternating current with frequency and voltage variable over time into direct current and thus avoids current surges.

      The AVR designed by MarelliMotori is internally equipped with a radio noise filter, which allows to contain radio noise emitted by MarelliMotori generators within the limits set by the European regulations for industrial environments

      Each engine has a type of connection to be connected to the alternator, so it is necessary to pay attention to this aspect; a model can also have from 15 to 20 different forms of construction!
      It is always advisable to check with the help of the technical data sheets the construction form of the alternator desired.

      Select the alternator that reflects the technical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES OF THE ALTERNATOR 1050KVA THREE-PHASE MJB 400MB4

      Phase type: Three phase
      Maximum power 50Hz: 1050KVA
      Maximum power 50Hz: 840KW
      Maximum power 60Hz: 1320KVA
      Maximum power 60Hz: 1055KW
      Frequency: 50 - 60Hz
      Voltage: 400V / 480V
      Protection degree: IP23
      A alternator revolutions: 1500 / 2250rpm
      Number of poles: 4
      Yield: 96. 3%
      Weight: 2300 Kg
      Constant speed
      AVR

      Are you looking for a product with different characteristics? HERE you can find the entire range MARELLIMOTORI and other specialized brands.

      Images and technical data not binding and subject to change by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.

      Download

      Drawing 1 MJB 400

      double bearing assembly MJB 400

      Download (77.97KB)

      Drawing 2 MJB 400

      double bearing torsional MJB 400

      Download (99.6KB)

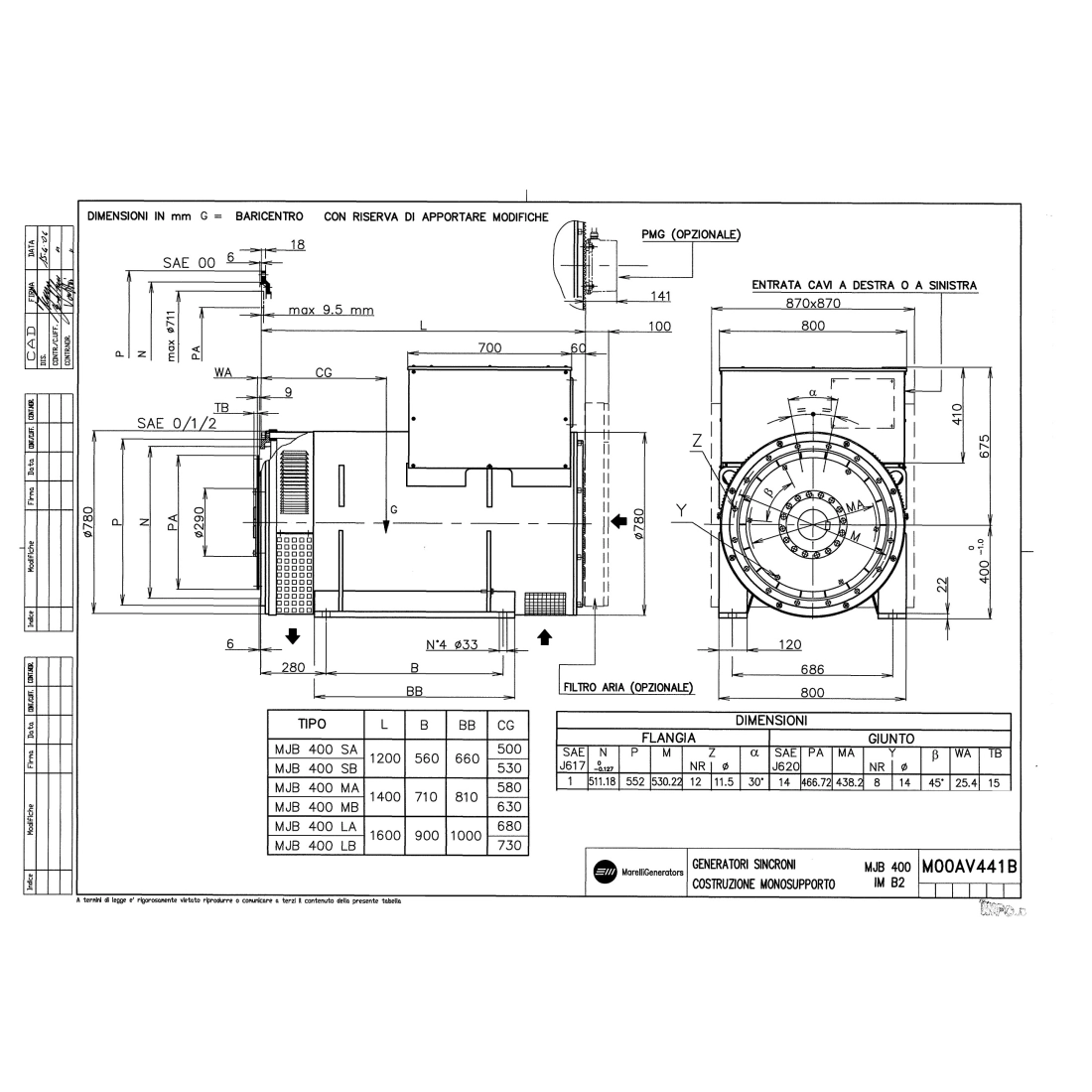

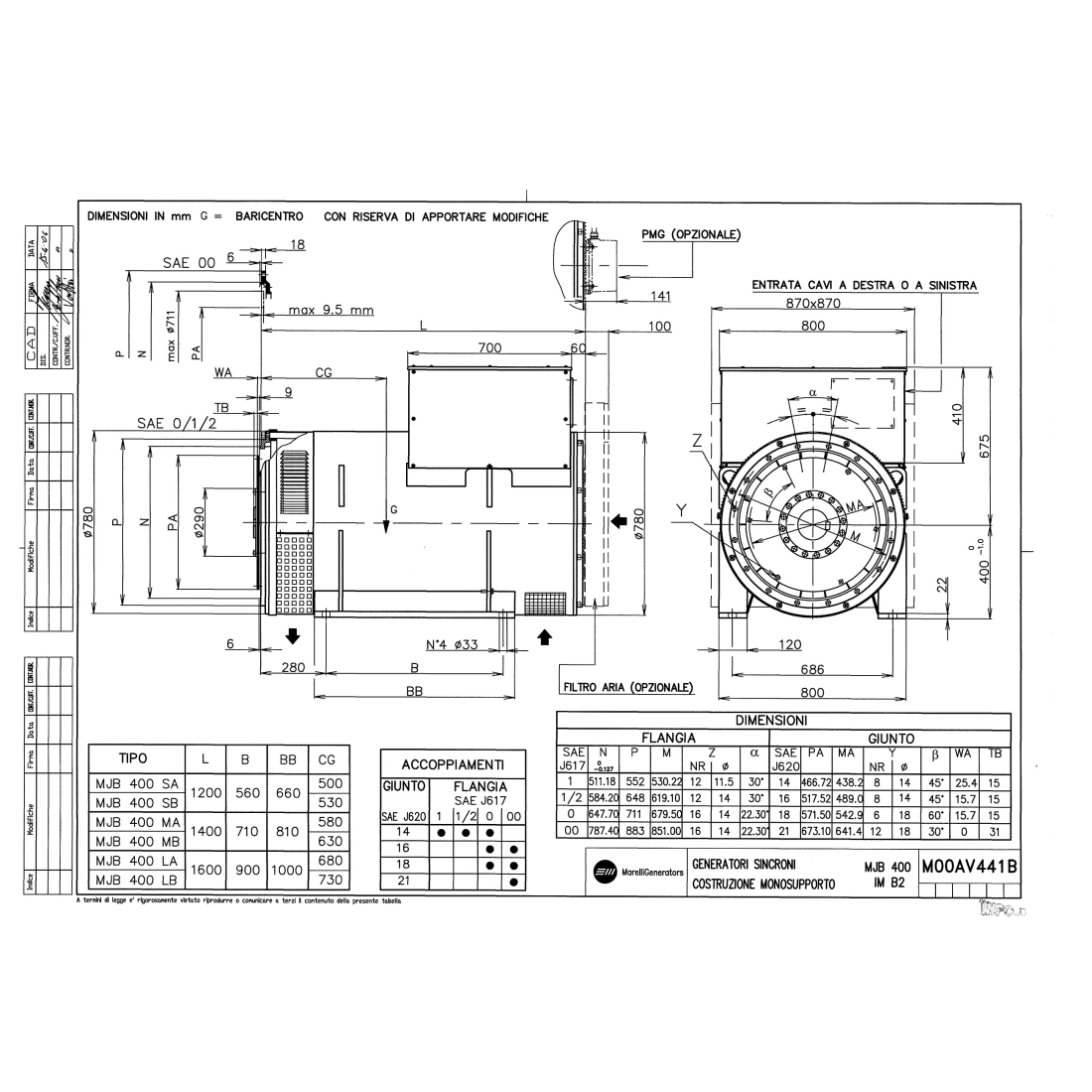

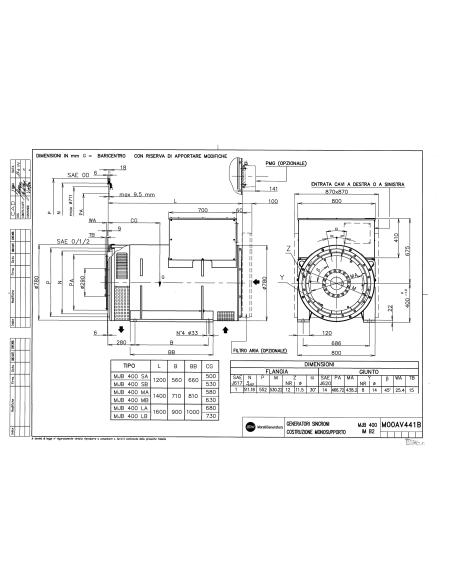

      Drawing 3 MJB 400

      single bearing assembly MJB 400

      Download (103.29KB)

      Drawing 4 MJB 400

      single bearing torsional MJB 400

      Download (106.85KB)
