MARELLI MOTORI

ALTERNATOR 10KVA MXB-E 160 SA4 Phase type: Three phase Maximum power 50Hz: 12,5 KVA Maximum power 50Hz: 10,0 KW Maximum power 60Hz: 15,6 KVA Maximum power 60Hz: 12, 5 KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator revolutions: 1500 / 1800 rpm Number of poles: 4 Yield: 78.9% Weight: 88.0 Kg<br...

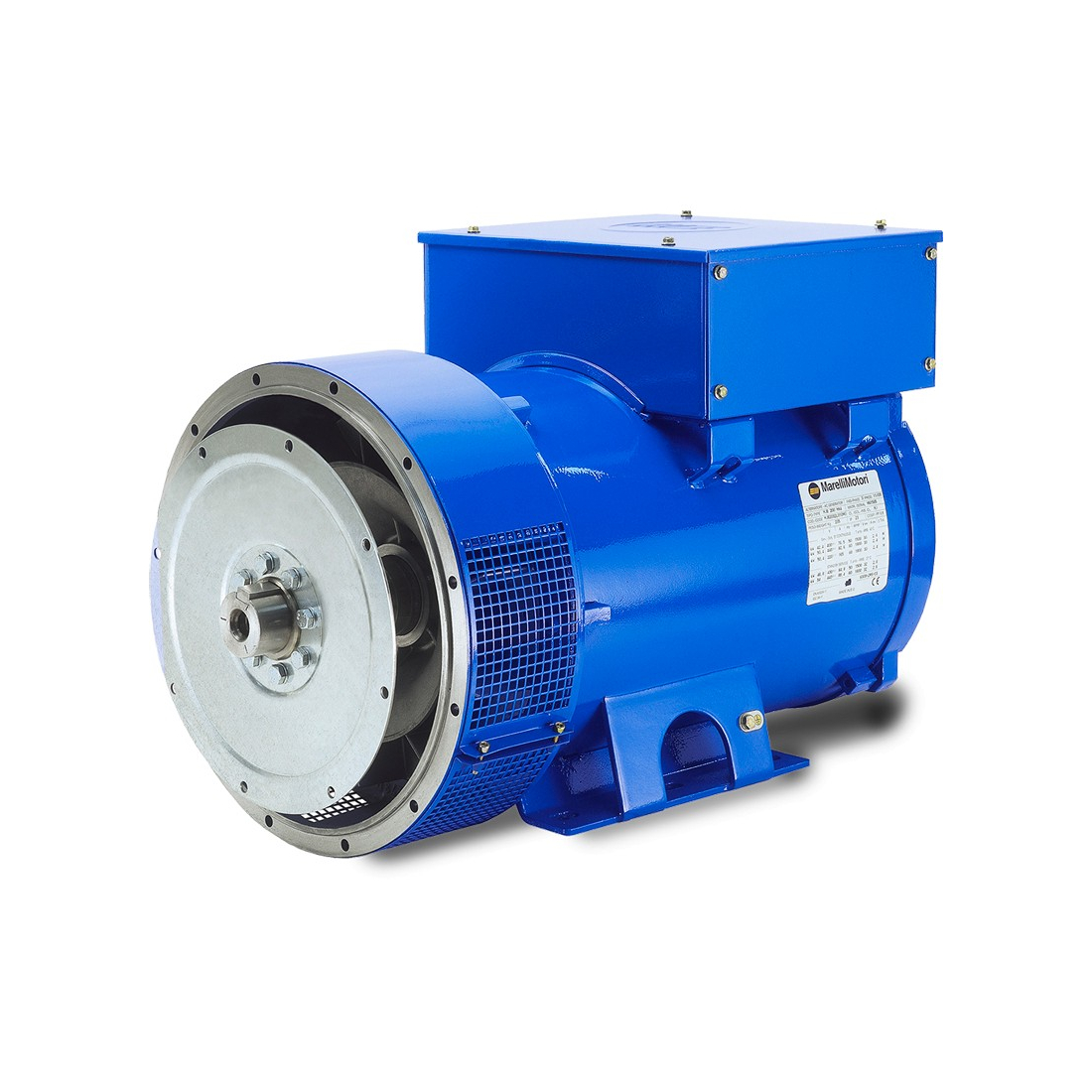

ALTERNATOR 3100KVA MJB 560 LA4 Phase type: Three phase Maximum power 50Hz: 3100KVA Maximum power 50Hz: 2480KW Maximum power 60Hz: 3565KVA Maximum power 60Hz: 2852KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator speed: 1500 / 2250 rpm Number of poles: 4 Yield: 97. 4% Weight: 6450 Kg Constant...

ALTERNATOR 50KVA MXB-E 180 MC4 Phase type: Three phase Maximum power 50Hz: 50.0 KVA Maximum power 50Hz: 40.0 KW Maximum power 60Hz: 62.3 KVA Maximum power 60Hz: 50. 0 KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator revolutions: 1500 / 1800 rpm Number of poles: 4 Yield: 88.8% Weight: 189.0Kg<br...

ALTERNATOR 100KVA MXB-E 225 SB4 Phase type: Threephase Maximum power 50Hz: 100.0 KVA Maximum power 50Hz: 80.0 KW Maximum power 60Hz: 120.0 KVA Maximum power 60Hz: 100. 0 KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator speed: 1500 / 1800 rpm Number of poles: 4 Yield: 89.8% Weight: 335.0Kg<br...

ALTERNATOR 40KVA MXB-E 180 SC4 Phase type: Three phase Maximum output 50Hz: 34.0 KVA Maximum output 50Hz: 27.2 KW Maximum output 60Hz: 42.5 KVA Maximum output 60Hz: 34. 0 KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator revolutions: 1500 / 1800 rpm Number of poles: 4 Yield: 86.4% Weight: 145.0...

ALTERNATOR 1050KVA MJB 400 MB4 Phase type: Three phase Maximum power 50Hz: 1050KVA Maximum power 50Hz: 840KW Maximum power 60Hz: 1320KVA Maximum power 60Hz: 1055KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator revolutions: 1500 / 2250rpm Number of poles: 4 Yield: 96. 3% Weight: 2300 Kg<br...

ALTERNATOR 34KVA MXB-E 180 SB4 Phase type: Three phase Maximum power 50Hz: 34.0 KVA Maximum power 50Hz: 27.2 KW Maximum power 60Hz: 42.5 KVA Maximum power 60Hz: 34. 0 KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator revolutions: 1500 / 1800 rpm Number of poles: 4 Yield: 86.4% Weight: 145.0 Kg<br...

ALTERNATOR 2600KVA MJB 560 MA4 Phase type: Three phase Maximum power 50Hz: 2600KVA Maximum power 50Hz: 2080KW Maximum power 60Hz: 2990KVA Maximum power 60Hz: 2392KW Frequency: 50 - 60Hz Voltage: 400V / 480V Protection degree: IP23 A alternator speed: 1500 / 2250 rpm Number of poles: 4 Yield: 97. 2% Weight: 6000Kg Constant...

Power supply voltage: 170 ÷ 277 Vac @ 50/60 Hz Power supply source: Auxiliary windings, mains Voltage build-up: 5 Vac Voltage sensing type: 1-phase Voltage sensing range: 170 ÷ 277 Vac Maximum continuative field current: 0 ÷ 5 Adc Maximum forcing field current: 0 ÷ 8 Adc Maximum field voltage: 100 Vdc Field resistance: 8 Ω ÷ 20 Ω Regulation...

AUXILIARY WINDING SERIES MXB-E 160

AUXILIARY WINDING SERIES MXB-E 180 ARTICLE AVAILABLE ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI MXB-E 180 GENERATOR

AUXILIARY WINDING SERIES MXB-E 225 ARTICLE AVAILABLE ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATOR MXB-E 225

AUXILIARY WINDING MXB-E 250 SERIES THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI MXB-E 250 GENERATOR.

6 LEADS WINDING THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI MXB-E 250 GENERATOR.

ANTI-CONDENSATION HEATERS 220V MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATOR MXB-E 160.

ANTI-CONDENSATION HEATERS 220V MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATOR MXB-E 180.

ANTI-CONDENSATION HEATERS 220V MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225.

ANTI-CONDENSATION HEATERS 220V MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250.

N. 3 CT SINGLE CORE ON NEUTRAL POINT (LOW VOLTAGE) THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250.

N. 3 PTC THERMISTOR MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160.

N. 3 PTC THERMISTOR MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180.

N. 3 PTC THERMISTOR MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

N. 3 PTC THERMISTOR MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250.

SPECIAL VOLTAGE INCLUDING 380V, R3, R6 (LV only) MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160

SPECIAL VOLTAGE INCLUDED 380V, R3, R6 (LV only) MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180

SPECIAL VOLTAGE INCLUDED 380V, R3, R6 (LV only) MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

SPECIAL VOLTAGE INCLUDED 380V, R3, R6 (LV only) MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250

N. 3 PT100 RESISTANCE TEMPERATURE DETECTORS IN STATOR WINDINGS MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180

N. 3 PT100 RESISTANCE TEMPERATURE DETECTORS IN STATOR WINDINGS MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

N. 3 PT100 RESISTANCE TEMPERATURE DETECTORS IN STATOR WINDINGS MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250

SEPARATE AUXILIARY TERMINAL BOX MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180

SEPARATE AUXILIARY TERMINAL BOX MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

SEPARATE AUXILIARY TERMINAL BOX MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250

PROVISION FOR PARALLEL OPERATION WITH SIMILAR GENERATORS WITH AVR (MEC-20) MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180

PROVISION FOR PARALLEL OPERATION WITH SIMILAR GENERATORS WITH AVR (MEC-20) MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

PROVISION FOR PARALLEL OPERATION WITH SIMILAR GENERATORS WITH AVR (MEC-20) MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250

PT100 ON N-END BEARING MXB-E 160 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 160

PT100 ON N-END BEARING MXB-E 180 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 180

PT100 ON N-END BEARING MXB-E 225 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 225

PT100 ON N-END BEARING MXB-E 250 THIS ITEM CAN BE PURCHASED ONLY AND EXCLUSIVELY IN COMBINATION WITH THE MARELLI GENERATORI MXB-E 250
