SATEPA

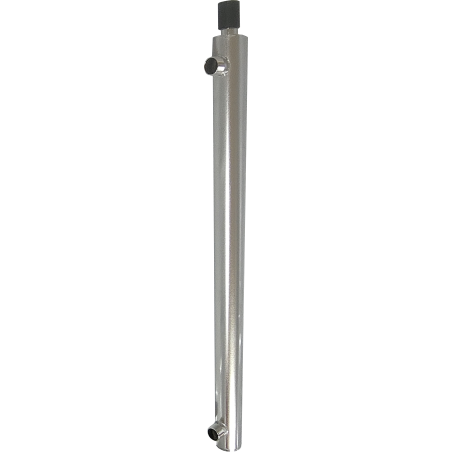

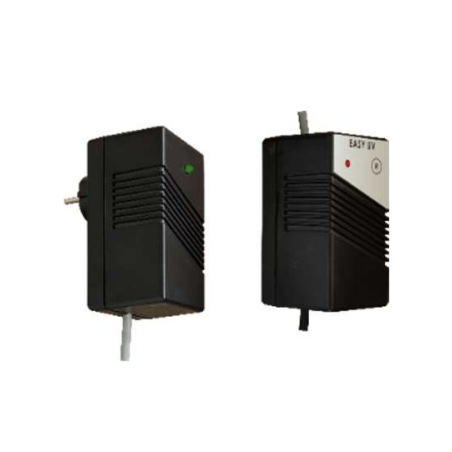

AISI 304 capacity steriliser with initial UV dose 40,000 W/cm2  Available with optional irradiance and temperature sensor ADAPTOR 'A' version available with SHUKO socket or feed-through cable Maximum flow rate: 1.5 m3/h - 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 1.2 m3/h - 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2<br...

Maximum flow rate: 2.8 m3/hr - 2800 l/hr - 12.30 GPM @ 30,000 µWsec/cm2 - 2.4 m3/hr - 2400 l/hr - 10.60 GPM @ 40,000 µWsec/cm2 Lamps: 1 x 40W UV-C low-pressure lamps Reactor size: Total H: 450 mm - Ø 60.30 mm Form Factor: "C" tube Working position: Vertical / Horizontal Hydraulic connections: ¾" male threaded Maximum pressure: 10 Bar standard<br...

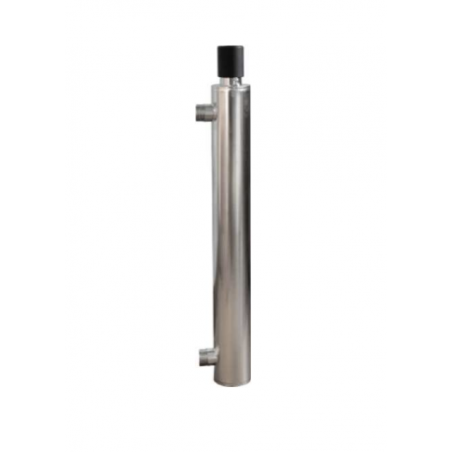

Maximum flow rate: 1.5 m3/Hr - 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 1.2 m3/Hr - 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2 Lamps: 1x30W, life hours 9,000 Reactor dimensions: Total H: 450 mm - Ø 60.30 mm Form Factor: "C"-shaped tube Working position: Vertical / Horizontal Hydraulic connections: ¾" male threaded Maximum pressure: 10 Bar standard Material:...

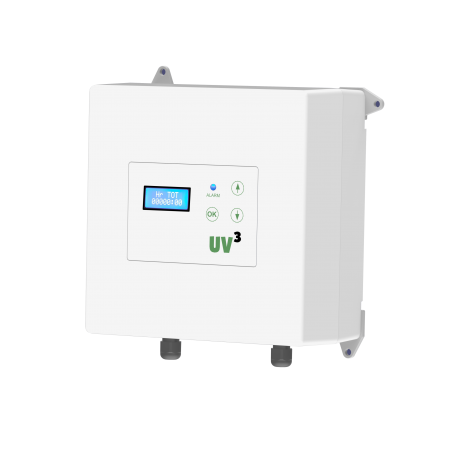

Maximum flow rate: 2.8 m3/Hr - 2800 l/hr - 12.30 GPM @ 30,000 µWsec/cm2 2.4 m3/Hr - 2400 l/hr - 10.60 GPM @ 40,000 µWsec/cm2 Panel size: 180 x 180 x 90 mm Display: 2x8 characters white/blue backlit LCD display Lamp control: Single lamp management with end of lamp life alarm through led/relay Counts: Total lamp life hour counter Resettable partial lamp life hour...

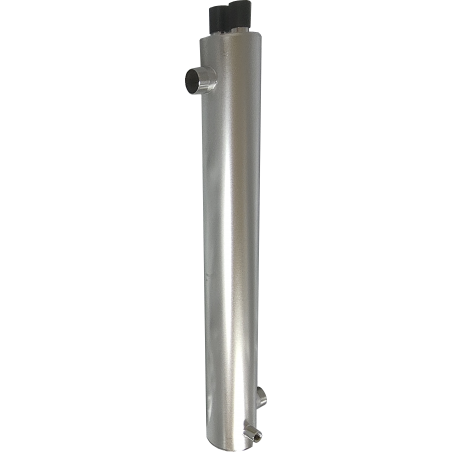

Maximum flow rate: 6.0 m3/Hr - 6000 l/hr - 26.0 GPM @ 30,000 µWsec/cm2 5.0 m3/Hr - 5000 l/hr - 22.0 GPM @ 40,000 µWsec/cm2 Lamps: 1x80W, life hours 9,000 Ballast dimensions: Total H: 928 mm - Ø 60.30 mm Form factor: 'C' tube Working position: Vertical / Horizontal Hydraulic connections: 1 ¼" male threaded Maximum pressure: 10 Bar standard Material: AISI 304...

Maximum flow rate: 2.8 m3/Hr - 2800 l/hr - 12.30 GPM @ 30,000 µWsec/cm2 2.4 m3/Hr - 2400 l/hr - 10.60 GPM @ 40,000 µWsec/cm2 Panel dimensions: 180 x 180 x 90 mm Display: 2x8 characters white/blue backlit LCD display Lamp control: Individual lamp management with end-of-life lamp alarm via LEDs/relays Counting: Total lamp life hour counter Resettable partial lamp life...

Maximum: 18 m3/h - 18000 l/m - 79.25 GPM @ 30,000 µWsec/cm2 Reduced: 14 m3/h - 14000 l/m - 61.64 GPM @ 40,000 µWsec/cm2 Number: 3 Power: 80W each Service life: 9,000 hours Dimensions: Total H: 928 mm - Ø 114 mm Form factor: 'Z' tube Working position: Vertical Inlet: 2" male threaded (flange optional) Water outlet: ½" Maximum pressure: 10 Bar...

Maximum: 23 m3/h - 23000 l/m - 101.00 GPM @ 30,000 µWsec/cm2 Reduced: 18 m3/h - 18000 l/m - 79.00 GPM @ 40,000 µWsec/cm2 Number: 4 Power: 80W each Service life: 9,000 hours Dimensions: Total H: 928 mm - Ø 140 mm Form factor: 'Z' tube Working position: Vertical Hydraulic connections Inlet: 2" male threaded (flange optional) Water outlet: ½"<br...

Maximum: 35 m3/h - 35000 l/m - 154.00 GPM @ 30,000 µWsec/cm2 Reduced: 28 m3/h - 28000 l/m - 123.30 GPM @ 40,000 µWsec/cm2 Number: 6 Power: 80W each Service life: 9,000 hours Dimensions: Total H: 933 mm - Ø 168 mm Form factor: 'Z' tube Working position: Vertical Inlet: 2½" male threaded (flange optional) Water outlet: ½" Maximum pressure: 10...

Maximum: 46 m3/h - 46,000 l/m - 202.50 GPM @ 30,000 µWsec/cm2 Reduced: 37 m3/h - 37,000 l/m - 163.00 GPM @ 40,000 µWsec/cm2 Number: 8 Power: 80W each Lifespan: 9,000 hours Dimensions: Total H: 933 mm - Ø 219 mm Form factor: “Z” tube Working position: Vertical Hydraulic connections: Inlet: 3" male thread (optional flange) Water drain: ½”<br...

Maximum: 70 m3/h - 70,000 l/m - 308.00 GPM @ 30,000 µWsec/cm2 Reduced: 55 m3/h - 55,000 l/m - 242.00 GPM @ 40,000 µWsec/cm2 Lamps: Number: 12 Power: 80W each Lifespan: 9,000 hours Painting: Dimensions: 420 × 360 × 160mm IP rating: IP 54 Electrical absorption: 960 Watts Power supply voltage: 230 Vac ± 10% @ 50/60 Hz (115 Vac ± 10% @...
