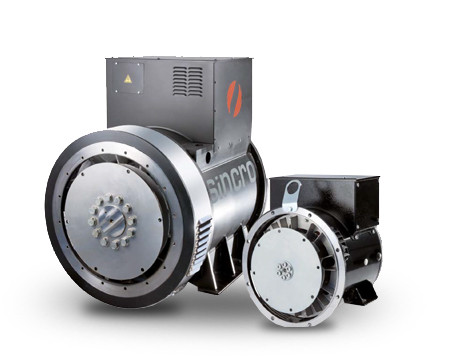

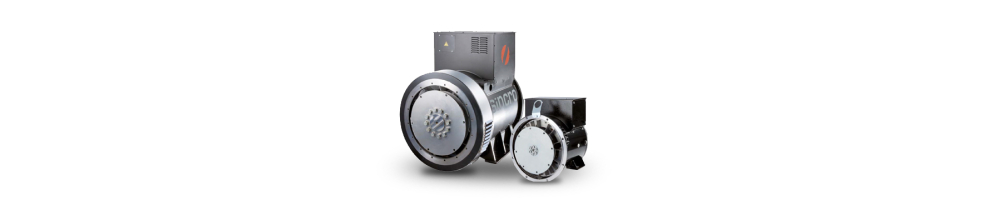

ALTERNATORS

Phase: Three Phase Poles: 2 Voltage (V): 230 / 400 Frequency (Hz): 50 Rpm Speed: 3000 Three Phase Output (kVA): 5.5 Constant Speed Alternator Compound Brushes Weight (Kg): 28.3 Protection: IP23

Phase: Three Phase Poles: 4 Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 1875 Constant Speed Alternator D-AVR Brushless PMG Weight (Kg): 3420 Protection: IP23

Phase: Three Phase Poles: 4 Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 1800 Constant Speed Alternator D-AVR Brushless PMG Weight (Kg): 2940 Protection: IP23

Phase: Single / Three Phase Poles: 4 Voltage (V): 230 / 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): 15 Three Phase Output (kVA): 25 Constant Speed Alternator AVR Brushless Weight (Kg): 119 Protection: IP23

Phase Type: Single-phase Maximum singlephase output: 4KW Maximum singlephase continuous output: 2.8KW Maximum singlephase output: 4.3KVA Maximum singlephase continuous output: 3.5KVA Frequency: 50-60 Hz Voltage: 230 V Protection Degree: IP23 Alternator RPM: 3000 RPM Number of Poles: 2 Weight: 19 Kg Width: 207 mm Length: 372 mm<br...

Phase Type: Single-phase Maximum single-phase output: 24.8 KW Maximum single-phase continuous output: 20.0 KW Maximum single-phase output: 31.0 KVA Maximum single-phase continuous output: 25.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 125 Kg Brushless Voltage...

Phase Type: Single-phase Maximum singlephase output: 11.52 KW Maximum singlephase continuous output: 9.6 KW Maximum singlephase output: 14.4 KVA Maximum singlephase continuous output: 12.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection rating: IP23 Agent speed: 3000 rpm Number of poles: 2 Weight: 58Kg Brushless Voltage regulator:...

Phase: Three Phase Poles: 4 Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 800 Constant Speed Alternator D-AVR Brushless PMG Weight (Kg): 1610 Protection: IP23

Phase: Three phase Poles: 2 Voltage (V): 230 / 400 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): ---- Three Phase Output (kVA): 20 Constant Speed Alternator D-AVR Brushes Weight (Kg): 66 Protection: IP23

Phase: Three Phase Poles: 4 Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 2300 Constant Speed Alternator D-AVR Brushless PMG Weight (Kg): 3885 Protection: IP23

Phase: Single Phase Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 1.2 Constant Speed Alternator Capacitor Brushless Weight (Kg): 9 Protection: IP23

Phase Type: Single-phase Maximum single-phase output: 2.2KW Maximum single-phase continuous output: 1.76KW Maximum single-phase output: 2.7KVA Maximum single-phase continuous output: 2. 2KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 13. 8 Kg Width: 171 mm Length:...

Phase Type: Single-phase Maximum singlephase output: 3KW Maximum singlephase continuous output: 2.4KW Maximum singlephase output: 3.7KVA Maximum singlephase continuous output: 3KVA Frequency: 50-60 Hz Voltage: 230 V Protection Degree: IP23 Alternator RPM: 3000 RPM Number of Poles: 2 Weight: 16.5 Kg Width: 207 mm Length: 333 mm<br...

Phase: Single / Three Phase Poles: 2 Voltage (V): 230 / 400 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 12 Three Phase Output (kVA): 20 Constant Speed Alternator AVR Brushless Weight (Kg): 81 Protection: IP23

Phase Type: Single-phase Maximum singlephase output: 4KW Maximum singlephase continuous output: 3.2KW Maximum singlephase output: 5.2KVA Maximum singlephase continuous output: 4.2KVA Frequency: 50-60 Hz Voltage: 230 V Protection Degree: IP23 Alternator RPM: 3000 RPM Number of Poles: 2 Weight: 19.9 Kg Width: 207 mm Length: 372 mm<br...

Phase Type: Single-phase Maximum singlephase output: 4.8KW Maximum singlephase continuous output: 4KW Maximum singlephase output: 6.5KVA Maximum singlephase continuous output: 5KVA Frequency: 50-60 Hz Voltage: 230 V Protection Degree: IP23 Alternator RPM: 3000 RPM Number of Poles: 2 Weight: 24.8 Kg Width: 207 mm Length: 402 mm<br...

Phase type: Single-phase Maximum singlephase output: 5KW Singlephase continuous output: 4.2KW Maximum singlephase output: 6.8KVA Singlephase continuous output: 5.5KVA Frequency: 50-60Hz Voltage: 230 V Degree of protection: IP23 Alternator revolutions: 3000 rpm Number of poles: 2 Weight: 25,4 Kg Width: 207 mm Length: 402 mm<br...

Phase type: Single-phase Maximum singlephase output: 3.0KW Singlephase continuous output: 2.4KW Maximum singlephase output: 3.7KVA Singlephase continuous output: 3.0KVA Frequency: 50-60Hz Voltage: 230 V Degree of protection: IP23 Alternator revolutions: 3000 rpm Number of poles: 2 Weight: 18.0 Kg Width: 212 mm Length: 384 mm<br...

Phase type: Single-phase Maximum single-phase output: 3.2KW Single phase continuous output: 2.4KW Maximum single-phase output: 4.3KVA Single-phase continuous output: 3.5KVA Frequency: 50-60Hz Voltage: 230 V Degree of protection: IP23 Alternator revolutions: 3000 rpm Number of poles: 2 Weight: 20 Kg Width: 212 mm Length: 384 mm<br...

Phase type: Single-phase Maximum single-phase output: 4KW Single-phase continuous output: 3.2KW Maximum single-phase output: 5.2KVA Single-phase continuous output: 4.2KVA Frequency: 50-60Hz Voltage: 230 V Degree of protection: IP23 Alternator revolutions: 3000 rpm Number of poles: 2 Weight: 20,4 Kg Width: 212 mm Length: 384 mm<br...

Phase type: Single-phase Maximum singlephase output: 4.8KW Singlephase continuous output: 3.2KW Maximum singlephase output: 6.0KVA Singlephase continuous output: 4.8KVA Frequency: 50-60Hz Voltage: 230 V Degree of protection: IP23 Alternator revolutions: 3000 rpm Number of poles: 2 Weight: 21,3 Kg Width: 212 mm Length: 384 mm<br...

Phase Type: Single Phase SinglePhase Maximum Output: 5.6 KW SinglePhase Continuous Output: 4.8 KW SinglePhase Maximum Output: 7.5 KVA SinglePhase Continuous Output: 6.0 KVA Frequency: 50-60 Hz Voltage: 230 V Degree of protection: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 25.9 Kg Brushless Voltage regulator:...

Phase Type: Single Phase Maximum singlephase output: 6.4 KW SinglePhase Continuous Output: 5.6 KW Maximum singlephase output: 8.8 KVA SinglePhase Continuous Output: 7.0 KVA Frequency: 50-60 Hz Voltage: 230 V Degree of protection: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 30.5 Kg Without brushes Voltage regulator:...

Phase Type: Single-phase Maximum singlephase output: 8.0 KW Maximum singlephase continuous output: 6.4 KW Maximum singlephase output: 10.0 KVA Maximum singlephase continuous output: 8.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection rating: IP23 Agent speed: 3000 rpm Number of poles: 2 Weight: 34.7Kg Brushless Voltage regulator:...

Phase Type: Single Phase SinglePhase Maximum Output: 9.6 KW SinglePhase Continuous Output: 8.0 KW SinglePhase Maximum Output: 12.0 KVA SinglePhase Continuous Output: 10.0 KVA Frequency: 50-60 Hz Voltage: 230 V Degree of protection: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 50.0Kg Brushless Voltage regulator:...

Phase Type: Single-phase Maximum singlephase output: 13.0 KW Maximum singlephase continuous output: 10.8 KW Maximum singlephase output: 16.2 KVA Maximum singlephase continuous output: 13. 5 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 67Kg Brushless Voltage...

Phase Type: Single-phase Maximum singlephase output: 14.4 KW Maximum singlephase continuous output: 12.0 KW Maximum singlephase output: 18.0 KVA Maximum singlephase continuous output: 15.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection rating: IP23 Agent speed: 3000 rpm Number of poles: 2 Weight: 81Kg Brushless Voltage regulator:...

Phase Type: Single-phase Maximum singlephase output: 17.6 KW Maximum singlephase continuous output: 14.4 KW Maximum singlephase output: 22.0 KVA Maximum singlephase continuous output: 18.5 KVA Frequency: 50-60 Hz Voltage: 230 V Protection rating: IP23 Agent speed: 3000 rpm Number of poles: 2 Weight: 96Kg Brushless Voltage regulator:...

Phase Type: Single-phase Maximum single-phase output: 20.0 KW Maximum single-phase continuous output: 16.0 KW Maximum single-phase output: 25.0 KVA Maximum single-phase continuous output: 20.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Agent speed: 3000 rpm Number of poles: 2 Weight: 111Kg Brushless Voltage...

Phase Type: Single Phase Maximum single-phase output: 3.0 KW Single Phase Continuous Output: 2.4 KW Maximum single-phase output: 3.7 KVA Single Phase Continuous Output: 3.0 KVA Frequency: 50-60 Hz Voltage: 230 V Degree of protection: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 18.3 Kg Brushes Voltage regulator: AVR<br...

Phase Type: Single-phase Maximum single-phase output: 4.0 KW Maximum single-phase continuous output: 3.2 KW Maximum single-phase output: 5.2 KVA Maximum single-phase continuous output: 4.2 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 20.7 Kg Brushless Voltage...

Phase Type: Single-phase Maximum single-phase output: 4.8 KW Maximum single-phase continuous output: 3.8 KW Maximum single-phase output: 6.0 KVA Maximum single-phase continuous output: 4.8 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 21.6 Kg Brushes Voltage...

Phase Type: Single-phase Maximum singlephase output: 6.0 KW Maximum singlephase continuous output: 4.8 KW Maximum singlephase output: 7.5 KVA Maximum singlephase continuous output: 6.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 31.1 Kg With Brushes Voltage...

Phase Type: Single Phase Number Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Revolutions per minute (rpm): 3000 Single-phase power (kVA): 8 Alternator type: constant speed Voltage regulator: AVR Brush type Weight (Kg): 35.3 Protection degree: IP23

Phase Type: Single-phase Maximum singlephase output: 9.6 KW Maximum singlephase continuous output: 8.0 KW Maximum singlephase output: 12.0 KVA Maximum singlephase continuous output: 10.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 47.0 Kg With Brushes Voltage...

Phase Type: Single Phase Maximum Single Phase Output: 11.5 KW Continuous Single Phase Output: 9. 6 KW Maximum single-phase output: 14.4 KVA Continuous single-phase output: 12.0 KVA Frequency: 50-60 Hz Voltage: 230 V Protection class: IP23 Alternator speed: 3000 rpm Number of poles: 2 Weight: 55.0 Kg With Brushes Voltage regulator:...

Phase: Single Phase Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 13.5 Constant Speed Alternator AVR Brushes Weight (Kg): 64 Protection: IP23

Phase: Single Phase Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 15 Constant Speed Alternator Digital AVR Brushes Weight (Kg): 63 Protection: IP23

Phase: Single Phase Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 18.5 Constant Speed Alternator Digital AVR Brushes Weight (Kg): 79 Protection: IP23

Phase: Single Phase Poles: 2 Voltage (V): 230 Frequency (Hz): 50 Rpm Speed: 3000 Single Phase Output (kVA): 20 Constant Speed Alternator Digital AVR Brushes Weight (Kg): 101 Protection: IP23
