SINCRO SK500 MA Three Phase Synchronous AC Alternator 1875 kVA PMG D-AVR

  • Online only
SINCRO THREE PHASE ALTERNATOR SK500
search
  • SINCRO THREE PHASE ALTERNATOR SK500
  • SINCRO THREE PHASE ALTERNATOR SK500
  • SINCRO THREE PHASE ALTERNATOR SK500
SINCRO
SK500 MA SAE0 d18
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1875
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 3420
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1500
Three-phase power (KVA)
1875
Efficiency (%)
95.5
Protection degree
IP23
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

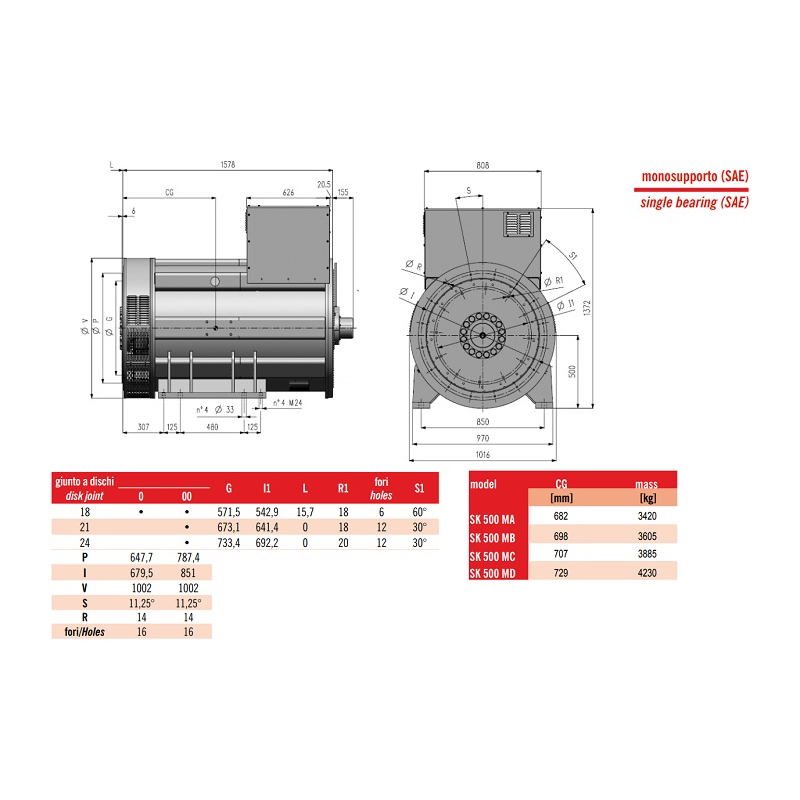

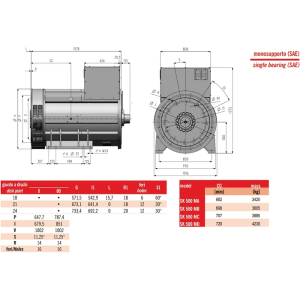

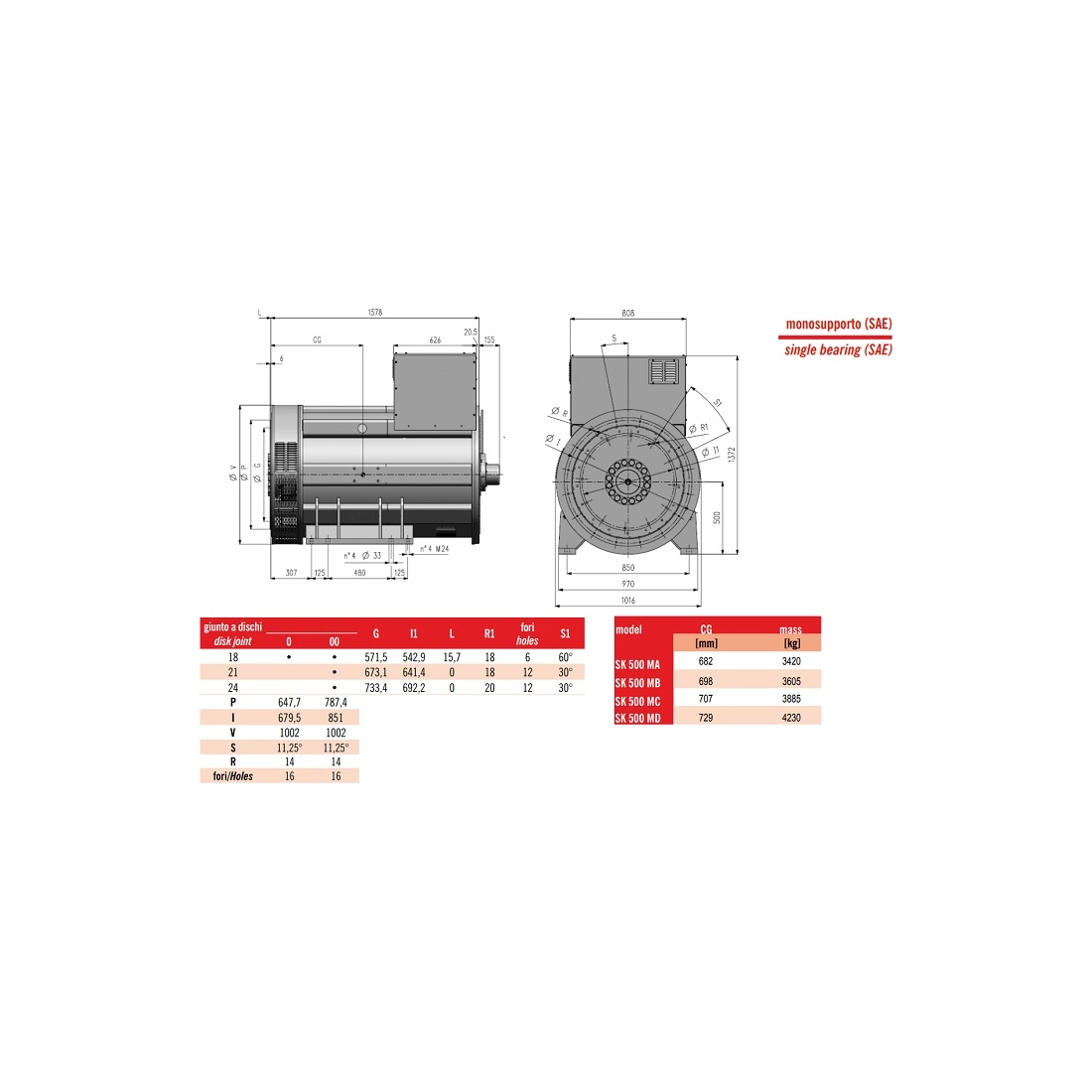

Technical data SK500

(2.02M)
Related Accessories
List price
85.684,26 € tax incl.
70.233,00 € tax excl.
Discounted Price
51.947,60 € tax incl.
42.580,00 € tax excl.
Choose the type of coupling
Quantity

shipped to

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
Product: SINCRO SK500 MA Three Phase Synchronous AC Alternator 1875 kVA PMG D-AVR
Offer on letterhead
Product: SINCRO SK500 MA Three Phase Synchronous AC Alternator 1875 kVA PMG D-AVR
Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1500
Three-phase power (KVA)
1875
Efficiency (%)
95.5
Protection degree
IP23
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Technical data SK500

(2.02M)
