TRUMA

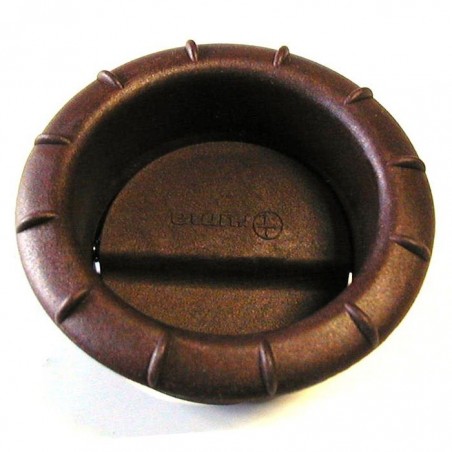

Also available White, Brown and Black

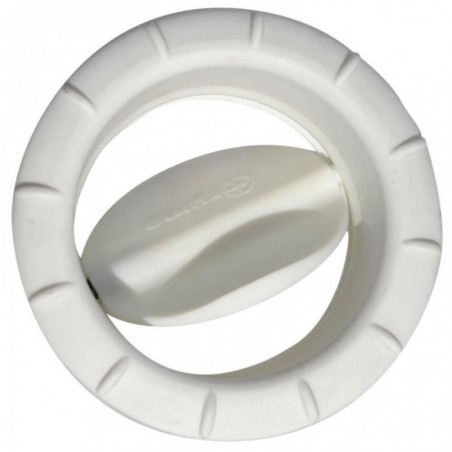

Also available Grey, Brown and Black

Diameter: 6.5 cm Length: 15 m

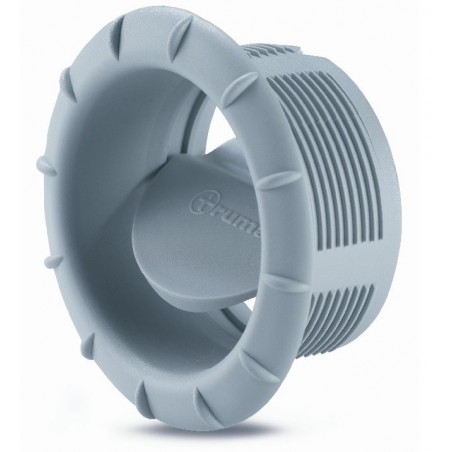

Also available Grey, White and Black

Also available Grey, White and Brown.

Phase Type: Single-phase Voltage: 230 V Frequency: 50 Hz Cooling current consumption: 2.8 A Starting current: 15 A (150 ms) Cooling capacity: 1800 W Maximum air flow: 310 m³/h Application range: from +16 °C to +40 °C Maximum slope during operation: 8 %. Recommended vehicle length: Up to 5 meters Net weight: 20 Kg Length: 560 mm<br...

Phase Type: Single Phase Voltage: 230 V Frequency: 50 Hz Current Consumption in Cooling: 4.2 A Current Consumption in Heating: 3. 7 A Starting current: 20 A (150 ms) Cooling power: 2400 W Heating power: 1700 W Maximum airflow: 380 m³/h Use range: +4 °C to +43 °C Maximum slope during operation: 8 % Recommended vehicle length: 5.5 - 6.5...

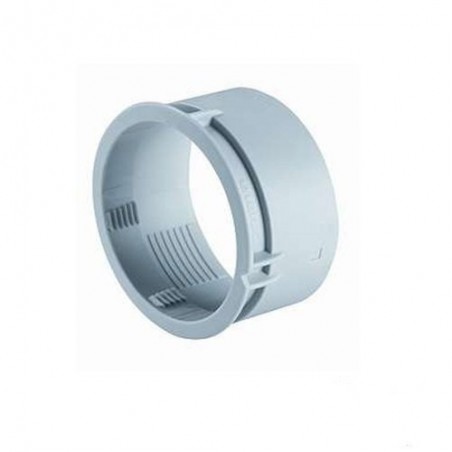

TRUMA 012 EM1 - Nut for Final Mouths. Diameter 60 mm.

Power supply: propane/butane Working pressure: 30 mbar Nominal heat output gas operation: 2000 W / 4000 W / 6000 W Fuel consumption: 160 to 460 g/h Length: 510 mm Width: 450 mm Height: 300 mm Weight: 14.4 Kg Minimum overall dimensions: 540 x 500 x 350 mm

Fuel type Diesel fuel in accordance with EN 590 Fuel consumption 220 - 630 ml/h (110 ml/h at 1000 W average heat output) Current consumption (at 12 V): heating and tank operation 1.8 - 4 A (in normal operation between "off" and "minimum power" less than 1.8 A) Current consumption (at 12 V): tank heating max. 1.8 A Air flow rate (free discharge) with 4 hot...

OUT OF PRODUCTION Power supply: Diesel + electric Working pressure: 30 mbar Nominal heat output gas operation: 2000 W / 4000 W / 6000 W Nominal heat output electrical operation: 900 W / 1800 W Nominal heat output of mixed operation max: 5800 W Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W) Length: 525 mm Width: 450...

Power supply: propane/butane + electric Working pressure: 30 mbar Nominal heat output gas operation: 2000 W / 4000 W / 6000 W Nominal heat output electrical operation: 900 W / 1800 W Fuel consumption: 160 to 460 g/h Length: 510 mm Width: 450 mm Height: 300 mm Weight: 15.5 Kg Minimum overall dimensions: 540 x 500 x 350 mm

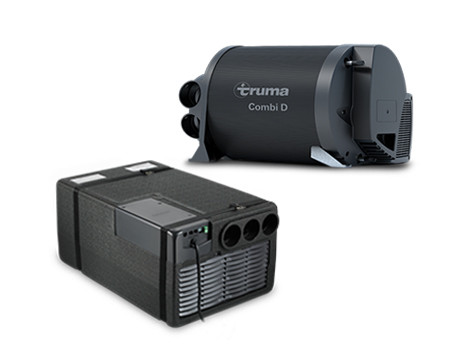

Power supply: Diesel  Nominal heat output Diesel: 6000 W Nominal mixed heat output: max. 5800 W Efficiency: 90% Water capacity: 10 l Heating time of the water tank: 20 min Power consumption in heating and hot water: - 12 V: 1.8 - 7 A - 230 V: 3.9 - 7.8 A Diesel consumption: 220 - 630 ml / h, 110 ml / h with  Length: 525 mm <br...

Contains: 1 Truma Combi 6 Diesel heater. 1 Truma inetx control panel and related 6-meter control cable 1 Ambient temperature sensor code 110 3402.00263 and related cable Nominal thermal output diesel operation: 1000 W/2000 W/3000 W/4000 W/5000 W/6000 W Nominal thermal output electrical operation: 900 W/1800 W Nominal thermal output mixed...

Contains: 1 truma combi 4 gas stove 1 Truma intx control and 6 m control cable 1 room temperature sensor and corresponding cable Power supply: propane/butane + current Burner levels: 2 Operating pressure: 30 mbar Heat output: 2000W / 4000W Absorbed current: 1.5 - 6, 5 A Quiescent current: 0.001 A Air flow rate: Max...

Contains: 1 truma combi 4 gas + electric stove 1 Truma inetx control and 6 m control cable. 1 room temperature sensor and corresponding cable. Type of power supply: Propane / butane + electric Operating pressure: 30 mbar Nominal heat output gas operation: 2000 W / 4000 W Nominal heat output electrical operation: 900 W /...

fortniture contents: Truma vario Heat Eco cp plus with 6 m control cable and room temperature sensor Mounting bracket Accessories for electrical connection Type of power supply: Propane - butane Operating pressure: 30 mbar Nominal heat output Power: 1300W - 2800W - 3700W Fuel...

OUT OF PRODUCTION Cooling power: 1700W Voltage: 230 - 240 V Frequency: 50 Hz Cooling current consumption: 2. 8 A Starting current: 20 A (150 ms) Maximum air flow: 370 m³/h Operating range: +16 °C to +40 °C Maximum slope during operation: 8 % Recommended vehicle length: Up to 5 meters Outdoor unit size: 785 x 560 x 265 mm Air...

Scope of supply: Truma Vario Heat comfort cp plus 6 m control cable room temperature sensor mounting bracket connection accessories Type of power supply: Propane - butane Operating pressure: 30 mbar Nominal heat output Power:...

Cooling power: 2400W Heating power: 1700W Voltage: 230 - 240 V Frequency: 50 Hz Current consumption in cooling: 4.2 A Heating current consumption: 3. 7 A Starting current: 28 A (150 ms) Maximum airflow: 400 m³/h Use range: +4 °C to +40 °C Maximum slope during operation: 8 % Recommended vehicle length: Up to 5 meters Outdoor unit size:...

Width: 670 mm Depth: 523 mm Height: 46 mm

Width: 556 mm Depth: 496 mm Height: 46 mm

TRUMA TRUMA WATER CONNECTION KIT FOR COMBI PG

TRUMA 011 34502.03 - COMBI-D 100 CM STAINLESS STEEL EXHAUST SET. Length: 1 meter

TRUMA 011 36100.02 - Water connection kit x combi JG.

TRUMA 011 34500.02 - COMBI-D 70 CM STAINLESS STEEL EXHAUST SET. Length: 0.70 meters

TRUMA ALTITUDE SET FOR COMBI-D

TRUMA WATER AND FROST CONTROL JG CONNECTION KIT

Truma Diesel Fuel Drain for Tank

Fuel type: diesel Power supply: 12 V DC - 230 V AC Heat output: 2000 W / 4000 W Power in electric mode: 900 W / 1800 W Efficiency: 91%. Fuel consumption: 0.28 - 0.65 l/h (DIESEL) Water tank: 10 L - Stainless steel Current consumption (12V): 1.8 - 4.0 A Current consumption (230V): 3.9 - 7.8 A Dimensions (WxDxH): 510 x 450 x 300 mm Weight: 15.6...

Fuel type: Gas (propane/butane) Power supply: 12 V DC - 230 V AC Heat output: 2000 W / 4000 W / 6000 W Power in electric mode: 900 W / 1800 W Efficiency: 98%. Fuel consumption: 160 - 480 g/hour Water tank: 10 L - Stainless steel Current consumption (12V): Max 5.6 A for a short time (average 1.3 A) Current consumption (230V): 3.9 - 7.8 A Dimensions...
