LIGHTING SYSTEMS

Lamp power: 4 x 320 W Total lumens: 184000 Lm Illuminated area: 5000 m2 Lifting type: Manual Pole rotation: 340° Lamp type: LED Power plug (A/V/Hz) 16/220/50 - 16/240/60 Power plug (A/V/Hz) 16/220/50 - 16/240/60 Wind resistance: 80 km/h Minimum dimensions (W x D x H): 1150 x 1150 x 2552 mm Maximum dimensions (W x D x H): 1903 x 1903 x 10000...

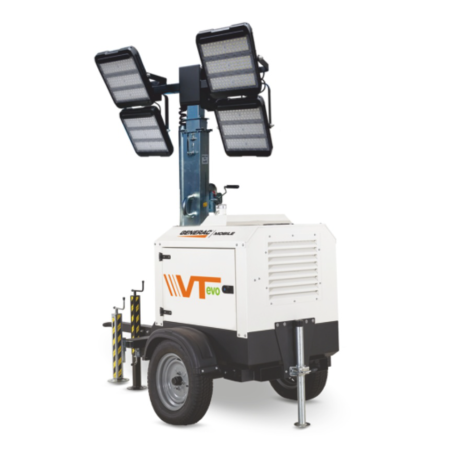

Lamp power: 4 x 320 W Lamp type: LED Total lumens: 188160 Lm Illuminated area: 4500 m2 Lifting system: Manual Pole rotation: 340° Engine: Kubota Z482 Emission standard: StageV Engine Cooling: Liquid Cylinders (N): 2 Engine speed (50/60 Hz): 1500 / 1800 rpm Alternator (kVA/V/Hz): 3.5/220/50 - 4.2/240/60 Electrical outlet (kVA/V/Hz):...

Power of the lamps: 4 x 320 W Type of lamp: LED Total lumens: 188160 Lm Illuminated area: 4500 m2 Lifting system: Hydraulic Pole rotation: 340° Engine: Yanmar 2TNV-70 Engine cooling: Liquid Cylinders (N): 2 Speed; engine (50/60 Hz): 1500 / 1800 rpm Liquid collection tank (110%): Yes Alternator (kVA/V/Hz): 5/220/50 – 5/240/60<br...

Lamp power: 4 x 240 W Lamp type: G4 LED Total lumens: 139200 Lm Illuminated area: 3100 m2 Lifting system: Hydraulic Pole rotation: 340° Engine: Kubota Z482 Emission standard: Stage V Engine Cooling: Liquid Cylinders (N): 2 Engine speed (50/60 Hz): 1500 / 1800 rpm Liquid collection tank (110%): Yes Alternator (kVA/V/Hz): 5/220/50 -...

Lamp power: 4 x 240 W Lamp type: G4 LED Total lumens: 139200 Lm Illuminated area: 3100 m2 Lifting system: Hydraulic Pole rotation: 340° Engine: Yanmar 2TNV-70 Engine cooling: Liquid Cylinders (N): 2 Speed; engine (50/60 Hz): 1500 / 1800 rpm Liquid collection tank (110%): Yes Alternator (kVA/V/Hz): 5/220/50 – 5/240/60 Average sound...

Maximum height (mt. ): 7 Rise: Manual Lit area (m²): 2800 Maximum luminous flux (Lm): 139200 Lamps: LED Lights: 4 x 240 W Transportability: Wheels and Handles Wind Stability (Km/h): 80 Stabilizers: 4 Dry Weight (Kg): 248 Pole Rotation: 340° Voltage: 230 V Min Dimensions. (mm): 1230 x 780 x 2110 Max. (mm): 1870 x 1460 x 6700<br...

STANDARD ACCESSORIES:  TVD: Fast towing type D  BHT: 50 mm ball hook  FDX: Suitable for right-hand drive  SWM: Mains/generator selector  DGT: Digital timer Lamp power: 4 x 320 W Lamp type: LED Total lumens: 188160 Lm Lit area: 4500 m2 Lifting system: Hydraulic Pole rotation: 340° Motor: Kubota Z482<br...

Maximum power Single-phase: 8 KVA Fuel: Diesel Voltage: 230 V - 240 V Frequency: 50-60 Hz Engine: Kubota D1105 Floodlights: 6 x 320 W - LED Illuminated area: 5200 m² Total Lumen: 276000 Lm Lift: Hydraulic lifting system Maximum height: 8.5 m Pole rotation: 340° Wind resistance: 110 Km/h Tank capacity. 112 Lt. Open dimension:...

STANDARD ACCESSORIES: TL: Slow towing (Hook eye) BCF: Basic configuration (as per data sheet) Lamp power: 4 x 320 W Lamp type: LED Total lumens: 188160 Lm Illuminated area: 4500 m2 Lifting system: Manual Pole rotation: 340° Engine: Yanmar L70N Engine cooling: Air Cylinders (N): 1 Engine speed (50/60 Hz): 3000 -...

Minimum dimensions (L x W x H): 1656 x 1264 x 2433 mm Maximum dimensions (L x W x H): 2756 x 2193 x 7200 mm Dry weight: 705 kg Mast lifting: Manual Mast rotation: 340° <p...

Standard Accessories: Fast towing type B 50 mm ball hitch Suitable for right-hand drive AMOSS KIT (automatic pole retraction with brake not engaged) Twilight sensor Mains/generator selector Hydraulic lifting Minimum dimensions (Length x Width x Height): 2156 x 1400 x 2403 mm Maximum dimensions (Length x Width x Height): 3096 x...
