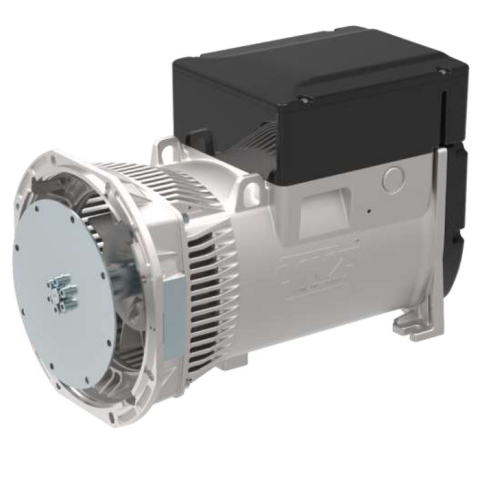

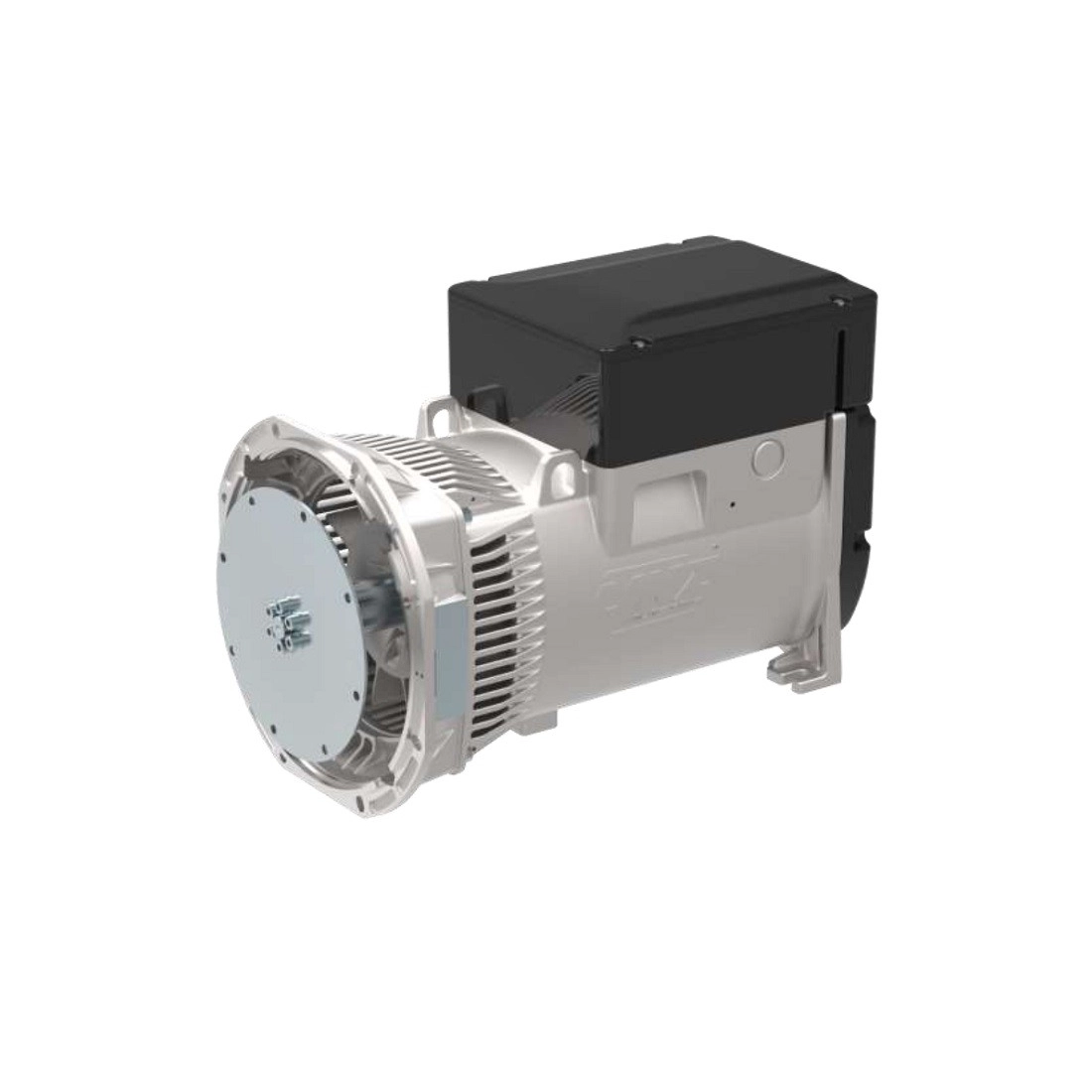

LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound
      LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound
      LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound

      LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound

      E1S13M F/4 50 Hz J609b

      Rated power at 50 Hz (kVA): 20
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: with brushes
      Type of regulation: Compound
      Insulation class: H
      Protection: IP21
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 4.6 at 50 Hz
      Suppression standard R.F.F.I. EN55011

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound

      PERSONAL DATA

      Ask a question
      Product: LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound
      Offer on letterhead
      Product: LINZ E1S13M F/4 Three-phase alternator 4 poles 20 kVA 50 Hz Compound
      LINZ ELECTRIC

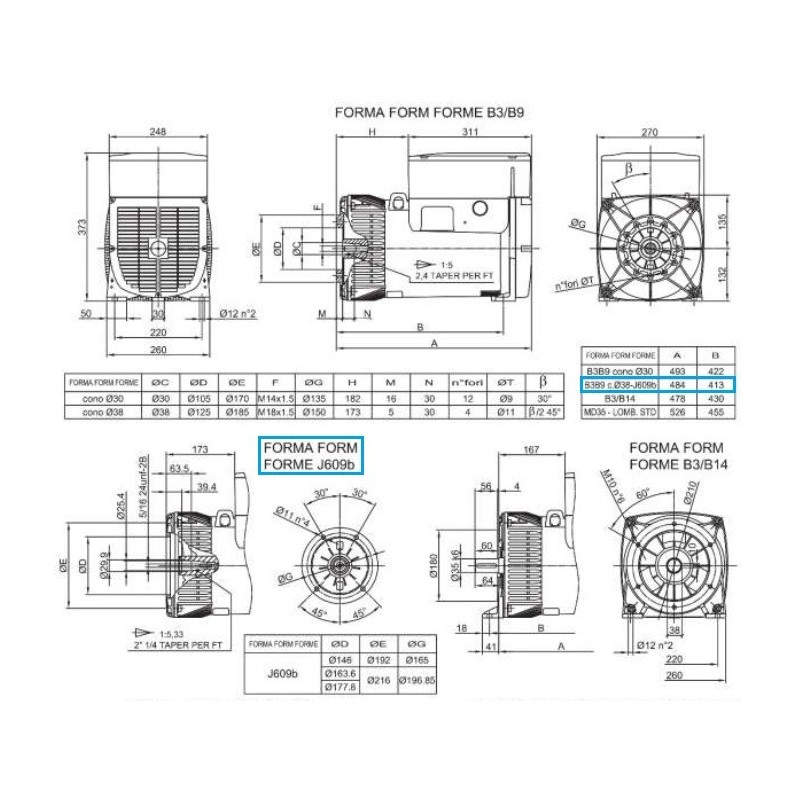

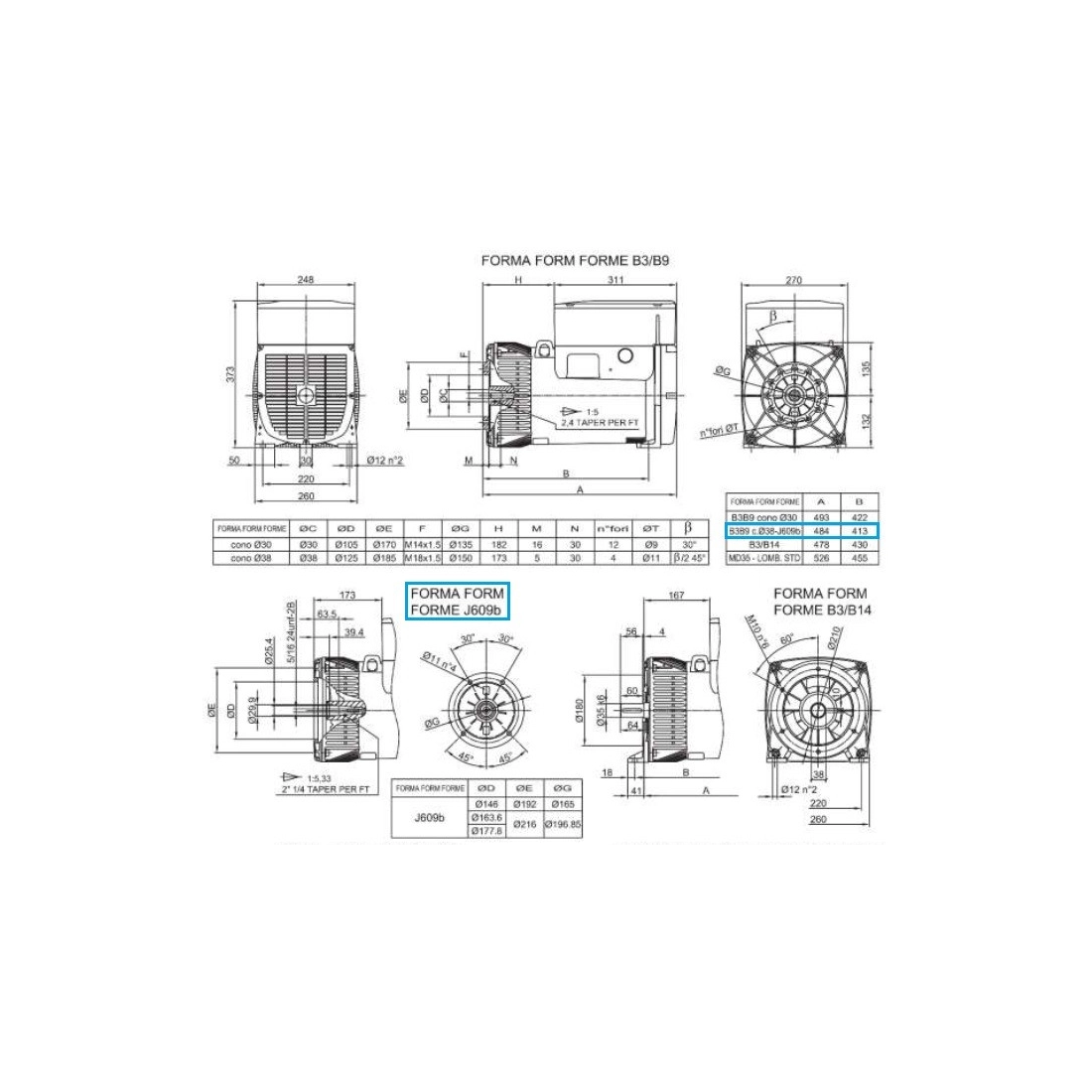

      E1S13M F/4 50 Hz J609b

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KW)
      16
      Continuous power three phase (KVA)
      20
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      20
      Protection degree
      IP21
      Motor insulation class
      H
      Length (mm)
      403
      Width (mm)
      270
      Height (mm)
      373
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound
      Weight (Kg)
      87

      Specific References

      New

      E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.

      CHARACTERISTICS

      • Possibility to feed any type of load
      • Compact and easy to assemble
      • High starting capacity
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: COMPOUND
      • Application: PORTABLE
