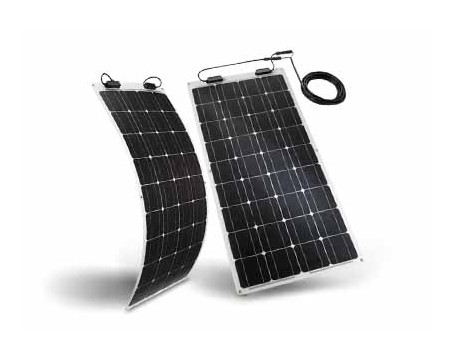

SOLAR PANELS FOR VEHICLES

OUT OF PRODUCTION Rated power: 100W Rated voltage: 18V Rated current : 5.56A Open circuit voltage: 21.6V Short circuit current: 5.94A Maximum system voltage: 1000VDC Cell Type: Monocrystalline Cable: 6m Width: 541 mm Length: 1230 mm Height: 55 mm Weight: 9 Kg

Rated power (Pmax): 130W Rated voltage Pmax (Vmp): 18.36V Rated current Pmax (Imp): 7.10A Open circuit voltage (Voc): 22.03V Short-circuit current (Isc): 7.80A Maximum system voltage: 1000VDC (IEC) Class of application: Class A Maximum overcurrent: 15 A Operating temperature: 85% Rh -40°C~ +85°C Nominal cell operating temperature (NOCT): 47 ±...

OUT OF PRODUCTION Rated power: 100W Rated voltage: 18V Rated current : 5.56A Open circuit voltage: 21.6V Short circuit current: 5.94A Maximum system voltage: 1000VDC Cell Type: Monocrystalline Cable: 6m Width: 541 mm Length: 1230 mm Height: 55 mm Weight: 9 Kg

OUT OF PRODUCTION Rated power: 120W Rated voltage: 18V Rated current : 6.67A Open circuit voltage: 21.6V Short circuit current: 7.13A Maximum system voltage: 1000VDC Cell Type: Monocrystalline Cable: 6m Width: 518 mm Length: 1522 mm Height: 55 mm Weight: 10.5 Kg

OUT OF PRODUCTION Rated power: 190W Rated voltage: 36.2 V Rated current : 5.25 A Open circuit voltage: 44.8 V Short circuit current: 5,7 A Maximum system voltage: 1000VDC Cell Type: Monocrystalline Cable: 6m Width: 518 mm Length: 1522 mm Height: 55 mm Weight: 16 Kg

DISCONTINUED PRODUCT Rated power: 120W Rated voltage: 18 V Rated current : 6.67 A Open circuit voltage: 21.6 V Short circuit current: 7.27 A Maximum system voltage: 600 VDC Cell Type: Monocrystalline Cable: 6m Width: 1380 mm Length: 820 mm Weight: 3.70 Kg

DISCONTINUED PRODUCT Rated power: 90W Rated voltage: 18 V Rated current : 5.00 A Open circuit voltage: 21.6 V Short circuit current: 5.45 A Maximum system voltage: 600 VDC Cell Type: Monocrystalline Cable: 6m Width: 1300 mm Length: 820 mm Weight: 2.95 Kg

DISCONTINUED PRODUCT Rated power: 90W Rated voltage: 18 V Rated current : 5.00 A Open circuit voltage: 21.6 V Short circuit current: 5.45 A Maximum system voltage: 600 VDC Cell Type: Monocrystalline Cable: 6m Width: 1310 mm Length: 800 mm Weight: 2.95 Kg

OUT OF PRODUCTION Rated power: 190W Rated voltage: 20.25 V Rated current : 9.4 A Open circuit voltage: 24.45 V Short circuit current: 9.75 A Maximum system voltage: 1000VDC Cell Type: Monocrystalline Cable: 6m Width: 680 mm Length: 1545 mm Height: 55 mm Weight: 13.8 Kg

DISCONTINUED PRODUCT Rated power: 120W Rated voltage: 18 V Rated current : 6.67 A Open circuit voltage: 21.6 V Short circuit current: 7.27 A Maximum system voltage: 600 VDC Cell Type: Monocrystalline Cable: 6m Width: 1360 mm Length: 500 mm Weight: 3.45 Kg

Nominal power (Pmax): 110 W Nominal Pmax voltage (Vmp): 19.0V Nominal Pmax current (Imp): 5.79A Open circuit voltage (Voc): 23.5V Short circuit current (Isc): 5.97A Maximum system voltage: 600VDC (IEC) Operating temperature: 85% Rh -40°C ~ +85°C Nominal cell operating temperature (NOCT): 46 ± 2°C Temperature coefficient at Pmax (Pmp): -0. 1%/°C<br...

DISCONTINUED PRODUCT Rated power (Pmax): 100W Rated voltage Pmax (Vmp): 18.5V Rated current Pmax (Imp): 5.41A Open circuit voltage (Voc): 22.7V Short-circuit current (Isc): 5.75A Maximum system voltage: 1000VDC (IEC) Class of application: Class A Maximum overcurrent: 10 A Operating temperature: 85% Rh -40°C~ +85°C Nominal...

Rated power: 100W (+/-5W) Open circuit voltage: 20.3V Short circuit current: 6.3A Maximum operating voltage: 17.1V Operating current maximum: 5.9 A Temperature coefficient of rated power: -0.39%/°C Temperature coefficient of open circuit voltage: 0.33%/℃ Temperature coefficient of short circuit current: 0.06%/℃ Maximum system voltage: 600 VDC (UL)<br...

Rated power: 100W（+/-5W） Open circuit voltage: 20.3V Short circuit current: 6.3A Maximum operating voltage: 17.1V Current maximum operating current: 5.9 A Temperature coefficient of rated power: -0.39%/°C Temperature coefficient of open circuit voltage: -0.33%/°C Temperature coefficient of current short circuit rating: 0.06%/°C Maximum system voltage:...

Rated power: 400 W Open circuit voltage: 37.10 V Short circuit current: 13.79 A Width: 1722 mm Length: 1134 mm Height : 35 mm Weight: 21.8 kg

PRODUCT DISCONTINUED This product has been replaced by the new solar panels PSG100SBB or <a class="o_translate_inline"...

Maximum power: 200W Cell type Monocrystalline: 75x166mm 9BB Number of cells: 72 (4x18) Open circuit voltage: 24.3V Supply voltage short circuit: 10.5A Maximum power voltage: 20.2V Maximum power current: 9.9A Wire type and length: 4mm^2, 6m Maximum system voltage: 1000 V/DC Temperature coefficient: Isc +0.08558% /°C Temperature coefficient:...

Peak power: 100 W Open circuit voltage: 20.4 V Maximum power current: 4.9 A Cable length: 6 m Monocrystalline cells:  PERC 75x166mm 9BB Length: 1010 mm Width: 560 mm Height: 55 mm Weight: 10 kg

Weight: 9.5 kg Dimensions: 1060 x 592 x 55 mm Peak power: 120 W Short-circuit current: 6.3 A Open-circuit voltage: 24.2 V Current at max voltage: 5.9 A Voltage at...

Weight: 9.5 kg Dimensions: 1615x415x55 mm Peak power: 120 W Short-circuit current: 6.33 A Open-circuit voltage: 24.2 V Maximum power current: 5.9 A Maximum power voltage: 20.35 V Number of diodes: 2 Cable section and length: 4 mm², 6 m Maximum system voltage: 1000 V/DC Cell type: monocrystalline 83x182 mm 10BB PERC Number of cells: 36...

Weight: 13 kg Dimensions: 1475x705x55 mm Peak power: 200 W Short-circuit current: 10.5 A Open-circuit voltage: 24.3 V Current at maximum voltage: 9.9 A Voltage at maximum power: 20.2 V Number of diodes: 2 Cable section and length: 2.5 mm², 6 m Maximum system voltage: 1000 V/DC Cell type: monocrystalline 75x166 mm 9BB PERC Number of...

Weight: 14.5 kg Dimensions: 1618x770x55 mm Peak power: 240 W Short-circuit current: 12.6 A Open-circuit voltage: 24.3 V Current at maximum power: 11.9 A Voltage at maximum power: 20.2 V Number of diodes: 2 Cable section and length: 2.5 mm², 6 m Maximum system voltage: 1000 V/DC Cell type: monocrystalline 91x182 mm 9BB PERC Number of...
