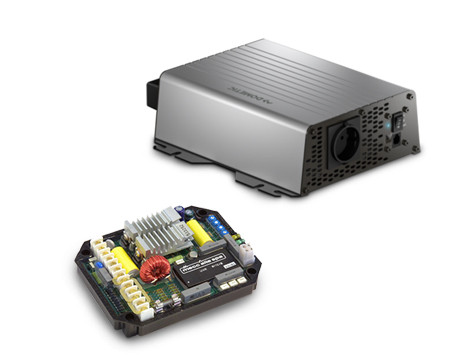

INVERTER / TRANSFORMERS / VOLTAGE REGULATORS

Power supply: 40 ÷ 270 Vac Frequency operating range: 15 Hz ÷ 72 Hz Regulation accuracy: ± 1% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Regulation True RMS or average value measurement: 70÷280 Vac Transient voltage drop and overvoltage: within ± 15% Voltage recovery time: within ± 3% of the set value in less than 300...

Input power supply: 180 to 280 Vac Regulation accuracy: ± 2.5% Maximum output current: 6 A Working temperature: -20°C ÷ +70°C Standard regulation: 100 ÷ 280 Vac

Supply voltage: 40 ÷ 270 VaC Frequency operating range: 12 Hz ÷ 72 Hz Voltage regulation accuracy: ± 1% Voltage regulation accuracy (stabilized conditions): ± 0,5% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Voltage adjustment range: 75 ÷ 300 Vac Transient voltage drop and overvoltage: within ± 15% Voltage recovery time:...

Power supply: 40 to 270 Vac Frequency operating range: 12 Hz to 72 Hz Regulation accuracy: ± 1% Regulation accuracy (stabilized conditions): ± 0.5% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Voltage regulation range: 75 ÷ 300 Vac Transient voltage drop and overvoltage: within ± 15% Recovery time: within ± 3% of set...

Sensing input: 80~350 VAC single phase Power supply input: voltage 50~270 VAC, frequency 50/60 Hz Magnetic field output: max. Input 63 VDC @ 220 VAC, continuous 6A Regulation accuracy: < ±1% (with 4% motor regulation) Voltage storage: residual voltage greater than 5 VAC 25 Hz External voltage regulation: 100 K ohm 1/2 watt ±7% Unit power dissipation: max....

Frequency: 50/60 Hz Low speed protection Reference: Single-phase or Three-phase

Automatic voltage regulator RCM (loose) for T20F/ET20F alternators.

Automatic voltage regulator RCM (loose) for T16F/ET16F alternators.

Automatic voltage regulator RCM (loose) for S20F/ES20F alternators.

Automatic voltage regulator RCM (loose) for S16F alternators.

Supply voltage: 50÷150Vac Accuracy: 1% Thermal stability: 2% Max Cadd capacitor current: 8 Amp Peak volt. between 5 and 6: 650V Ext. pot. voltage regul. range: ±5% Load application transient: 200ms ΔV < -10% Load removal transient: 400ms ΔV <+10%

Automatic voltage regulator RCM (loose) for S16W alternators.

Automatic voltage regulator RCM (loose) for S15W alternators.
