SINCRO IB4 SA SINGLE-THREE PHASE ALTERNATOR 25KVA AVR

SINCRO IB4 SA SINGLE-THREE PHASE ALTERNATOR 25KVA AVR
search
  • SINCRO IB4 SA SINGLE-THREE PHASE ALTERNATOR 25KVA AVR
  • SINCRO IB4 SA SINGLE-THREE PHASE ALTERNATOR 25KVA AVR
SINCRO
IB4 SA SAE4 d6.5
New product

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 15
Three Phase Output (kVA): 25
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 119
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
12
Single-phase power (KVA)
15
Three-phase power (KW)
20
Three-phase power (KVA)
25
Efficiency (%)
84.7
Protection degree
IP23
Dry weight (Kg)
119
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use

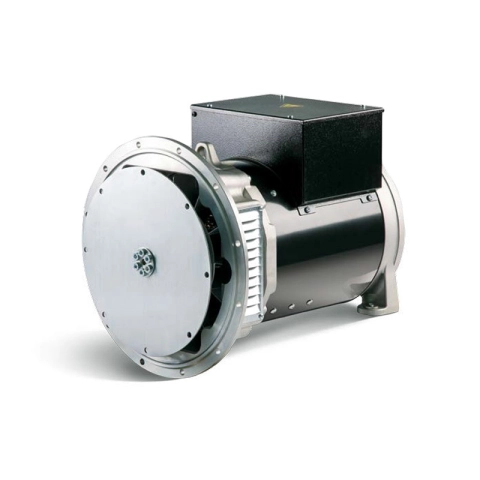

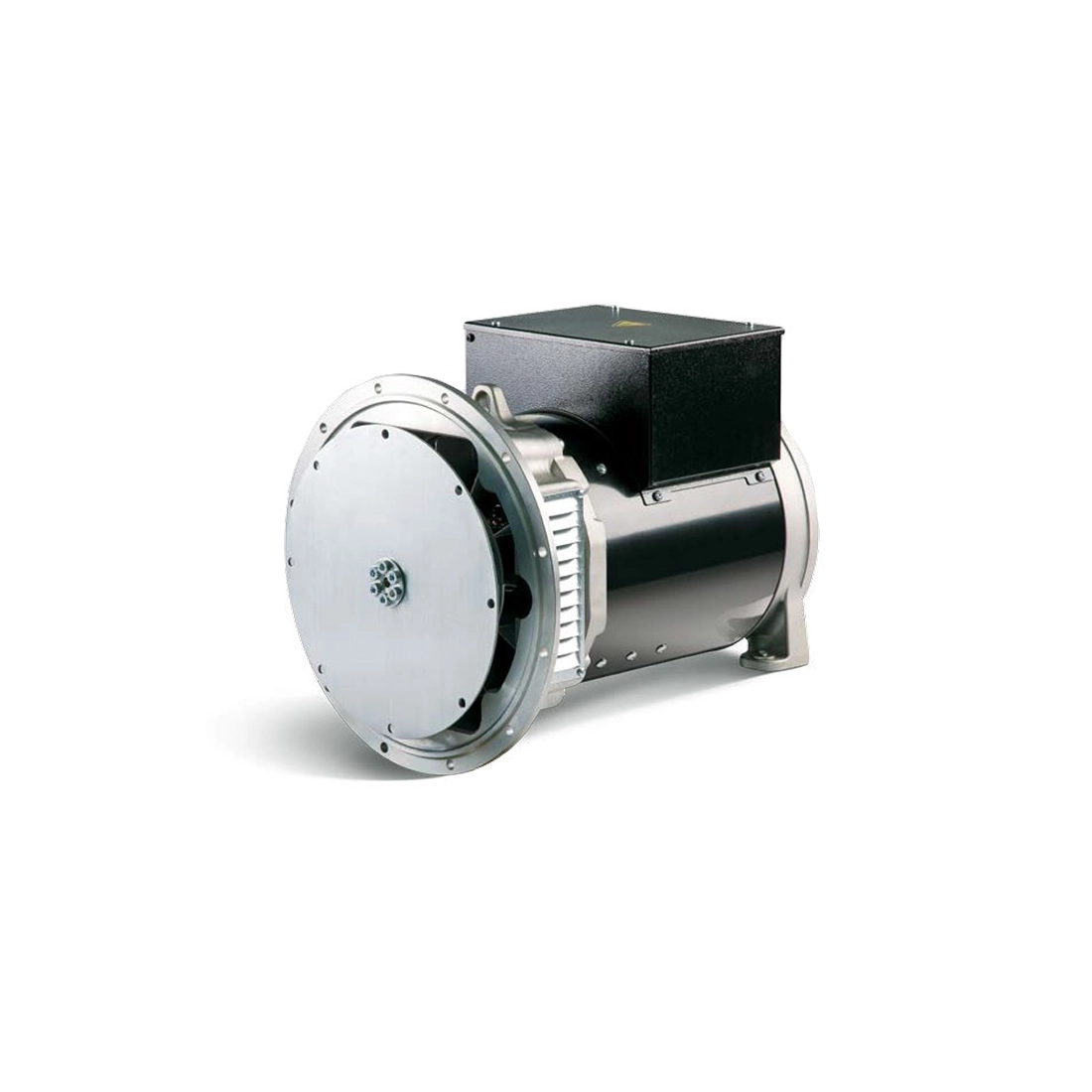

The image is purely indicative.

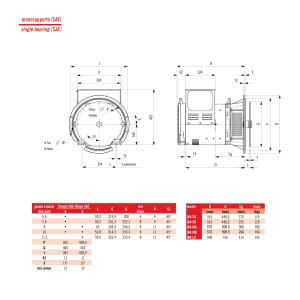

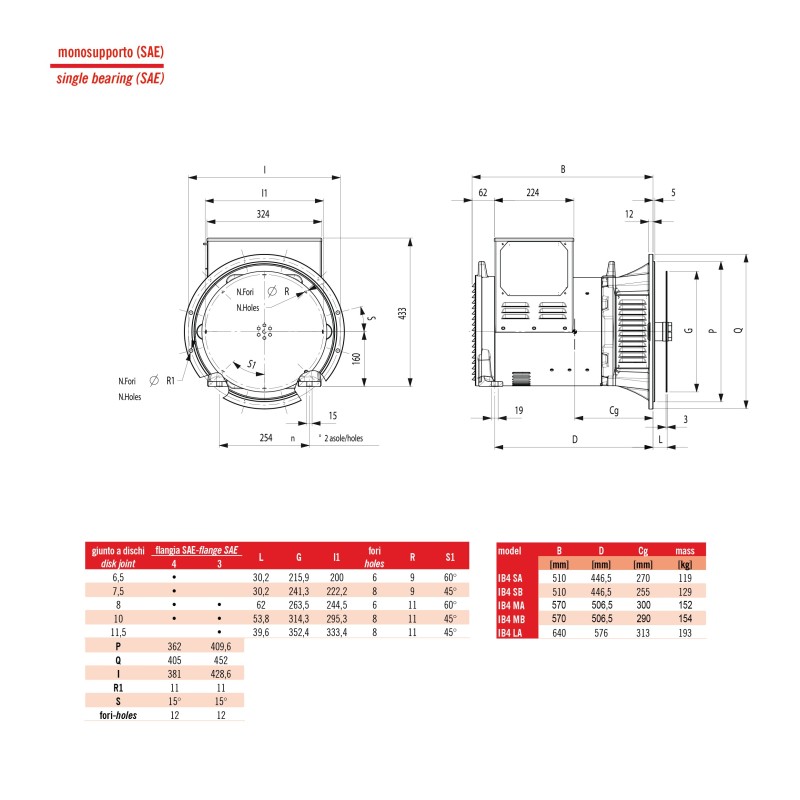

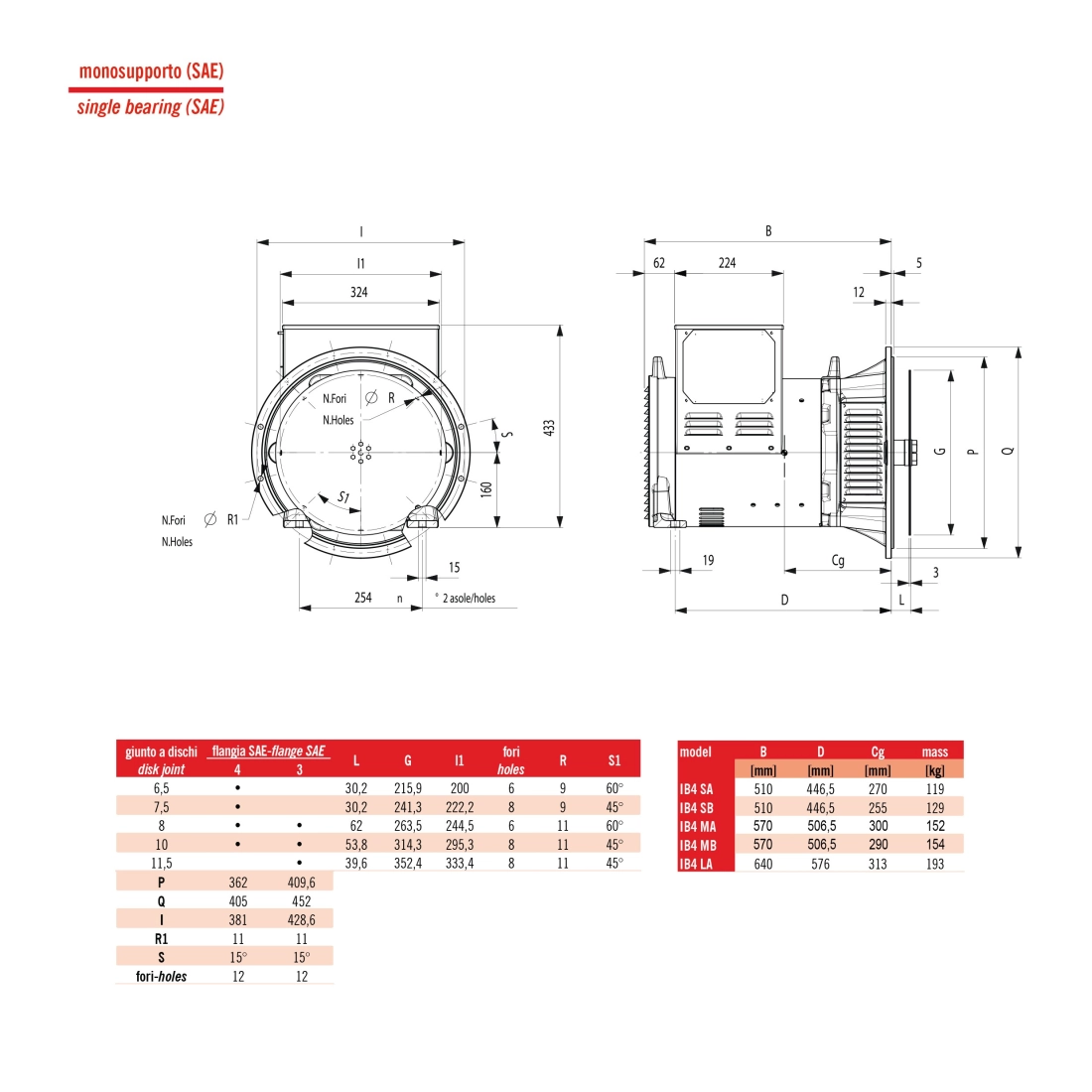

Technical Sheet / Manuals
