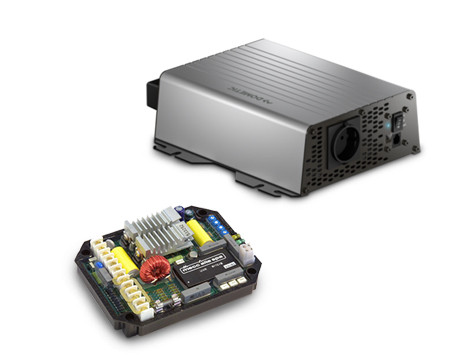

INVERTER / TRANSFORMERS / VOLTAGE REGULATORS

Supply voltage: 80 Vac ÷ 280 Vac - Maximum exciter field current: 10 Adc - Permanent exciter field current: 8 Adc - Detection voltage: 80 Vac ÷ 480 Vac - Gross adjustment of the output voltage via integrated Dip Switch -...

The Linz DR11 digital regulator, the heart of the PRO-DG series alternators, will allow you to monitor all the alternator parameters, giving the machine a high starting capacity, particularly suitable for the use of heavy loads.

Input voltage: 160-280V AC Output voltage: 230V AC +/- 2% Output frequency: 50Hz +/- 0.5Hz Maximum output current : 30A Efficiency: >98% Operating temperature: -20°C to +50°C Protection class: IP21

Power supply voltage input: a) 110 Vac ±15% b) 220 Vac -25%/+15%. Max field current: 10 Adc Permanent field current: 7 Adc Single-phase reference voltage input: 90 Vac ÷ 440 Vac Alternator output voltage calibration with multi-turn trimmer Stability control calibration with multi-turn trimmer Calibration of the intervention threshold of the low...
