Rated power at 50 Hz (kVA): 15
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.2 at 50 Hz
Suppression standard R.F.F.I. EN55011
AVR: HVR11
Sensing: single-phase
Voltage Regulation: ±1%
Sustained Short Circuit: > 250% of rated current

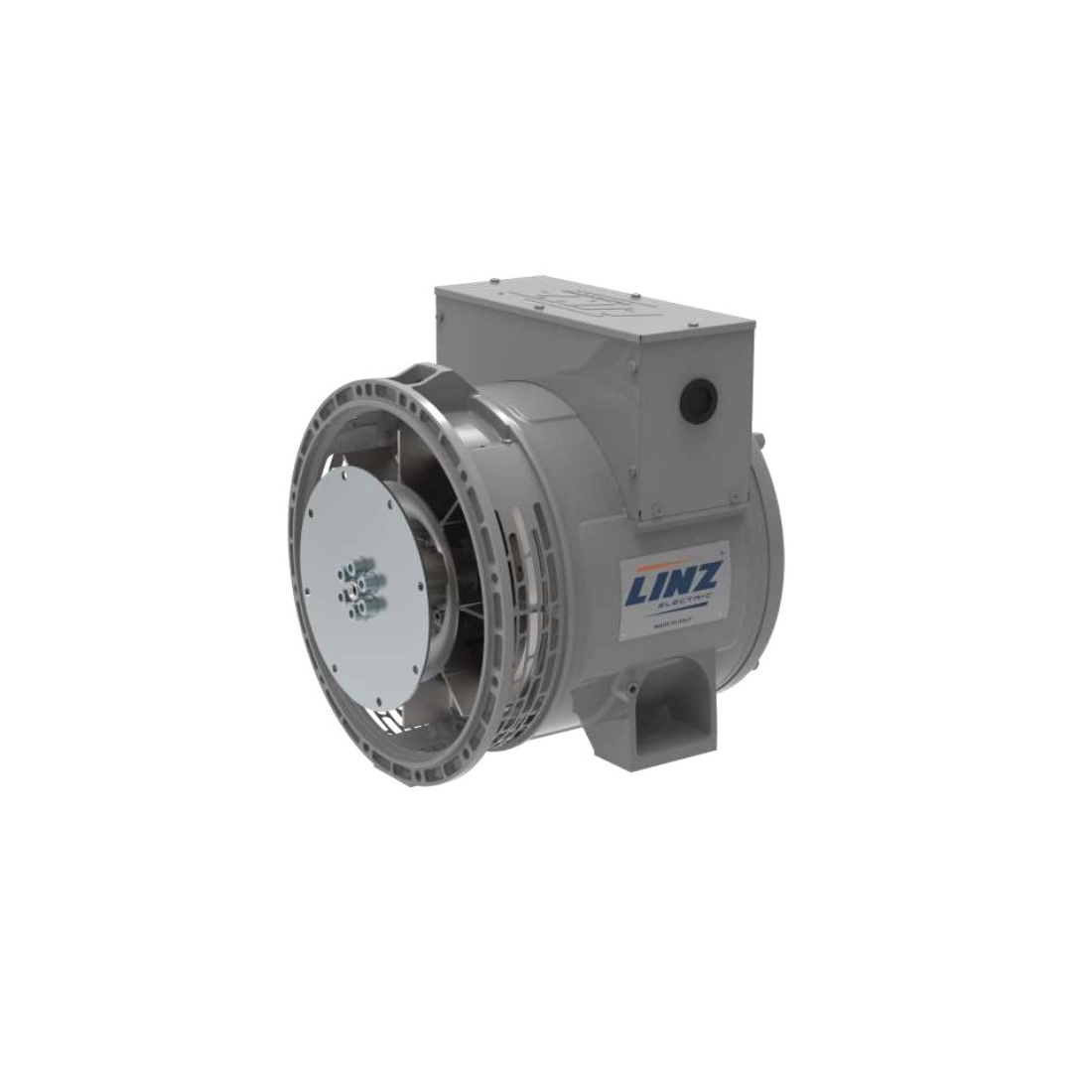

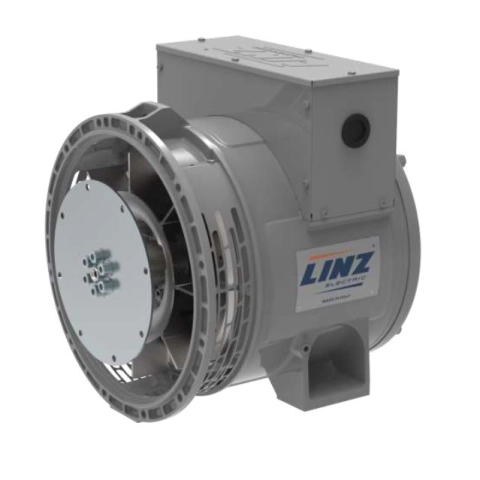

The alternators of SLT18 series are three-phase 4 poles brushless with electronic regulation (AVR) with single-phase sensing.
CHARACTERISTICS
The alternators of SLT18 series are three-phase 4 poles brushless with electronic regulation (AVR) with single-phase sensing.
CHARACTERISTICS
Rated power at 50 Hz (kVA): 15
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.2 at 50 Hz
Suppression standard R.F.F.I. EN55011
AVR: HVR11
Sensing: single-phase
Voltage Regulation: ±1%
Sustained Short Circuit: > 250% of rated current
