      E1X13S A/4 60 Hz J609b

      Rated power (kVA): 8
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: AVR
      Insulation class: H
      Protection: IP21
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Suppression standard R.F.F.I. EN55011

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: LINZ E1X13S A/4 Three-phase alternator 4 poles 8 kVA 60 Hz AVR

      PERSONAL DATA

      Ask a question
      Product: LINZ E1X13S A/4 Three-phase alternator 4 poles 8 kVA 60 Hz AVR
      Offer on letterhead
      Product: LINZ E1X13S A/4 Three-phase alternator 4 poles 8 kVA 60 Hz AVR
      LINZ ELECTRIC
      E1X13S A/4 60 Hz J609b

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KVA)
      8
      Frequency (Hz)
      60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      6.5
      Protection degree
      IP21
      Motor insulation class
      H

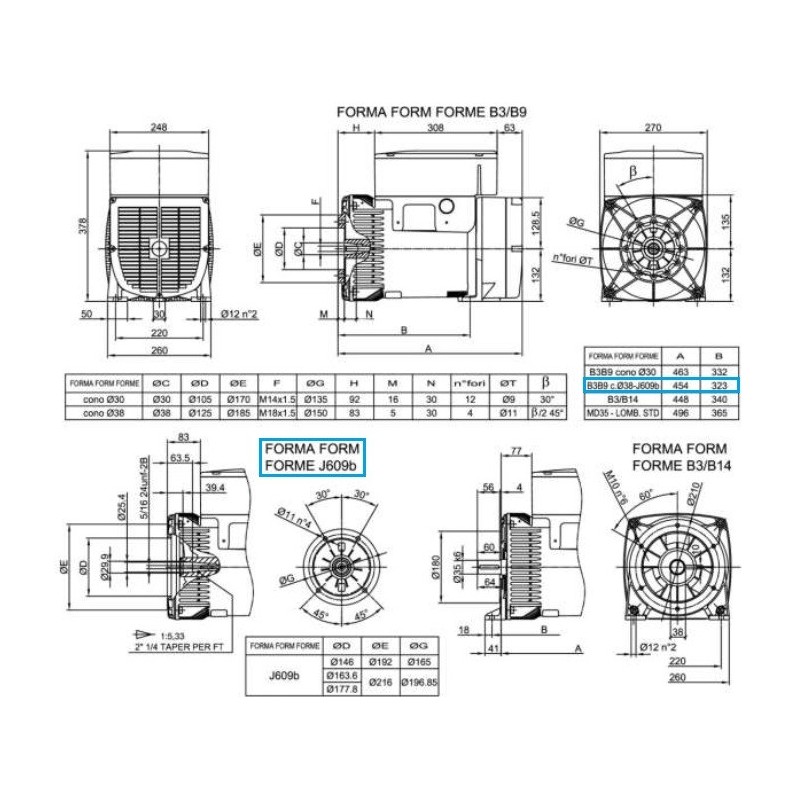

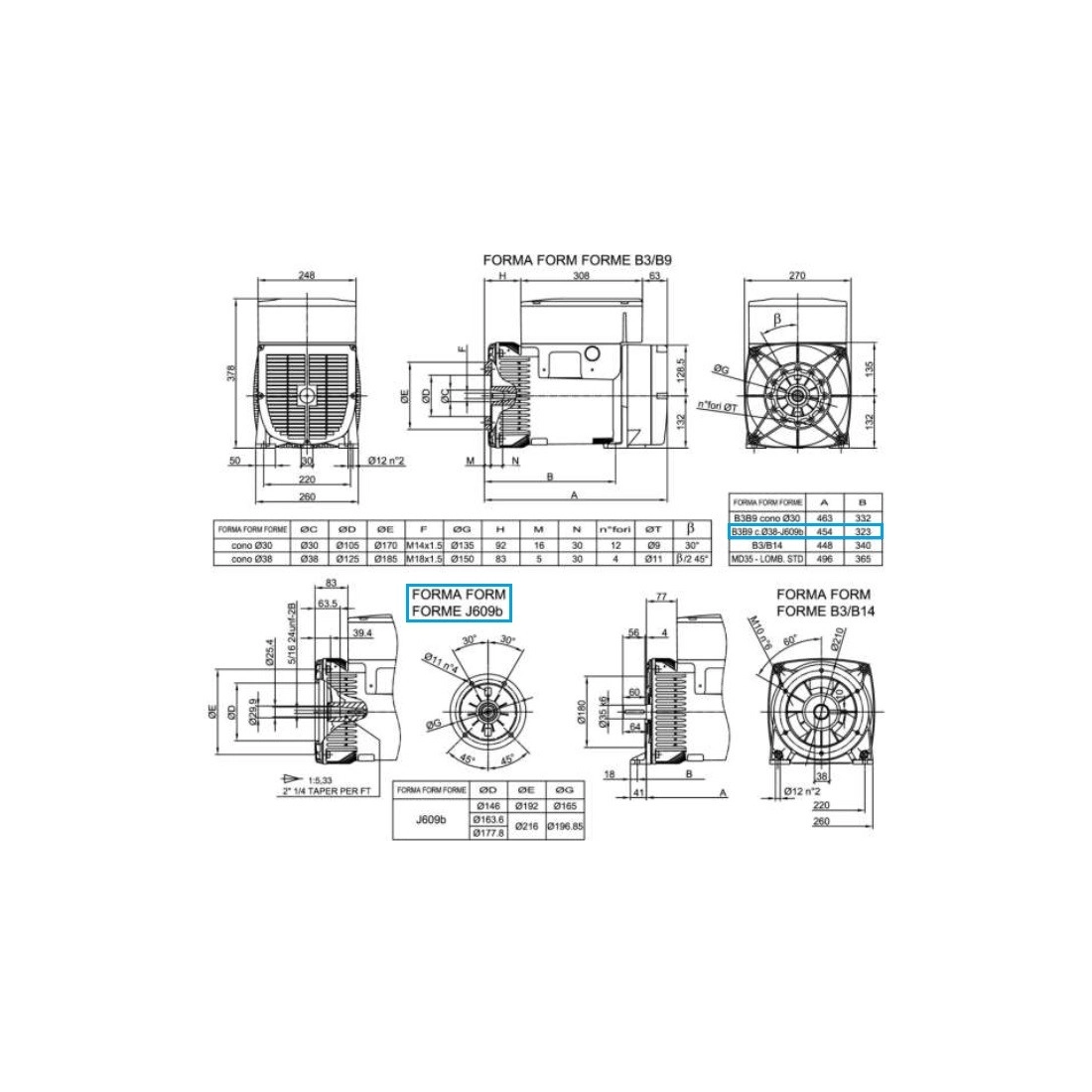

      Length (mm)
      454
      Width (mm)
      270
      Height (mm)
      378
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      59.4

      Specific References

      New

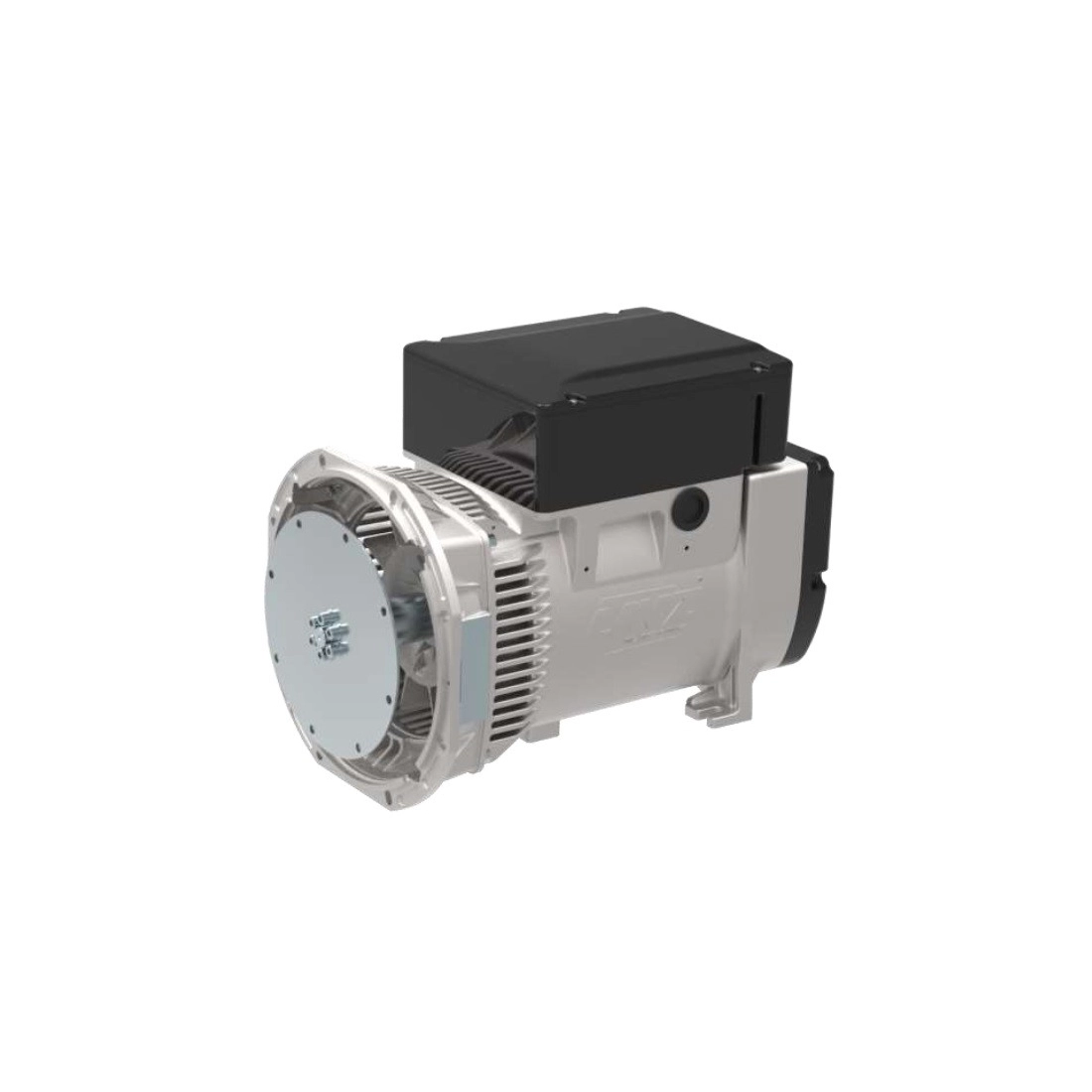

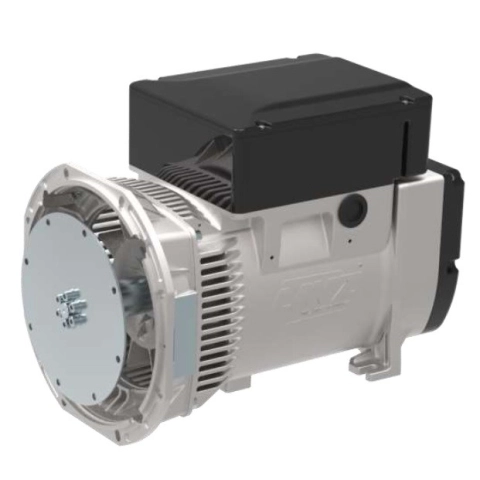

      E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

      CHARACTERISTICS

      • Compact and mechnically resistant
      • Minimum maintenance
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: AVR
      • Application: PORTABLE, TELECOMMUNICATION
