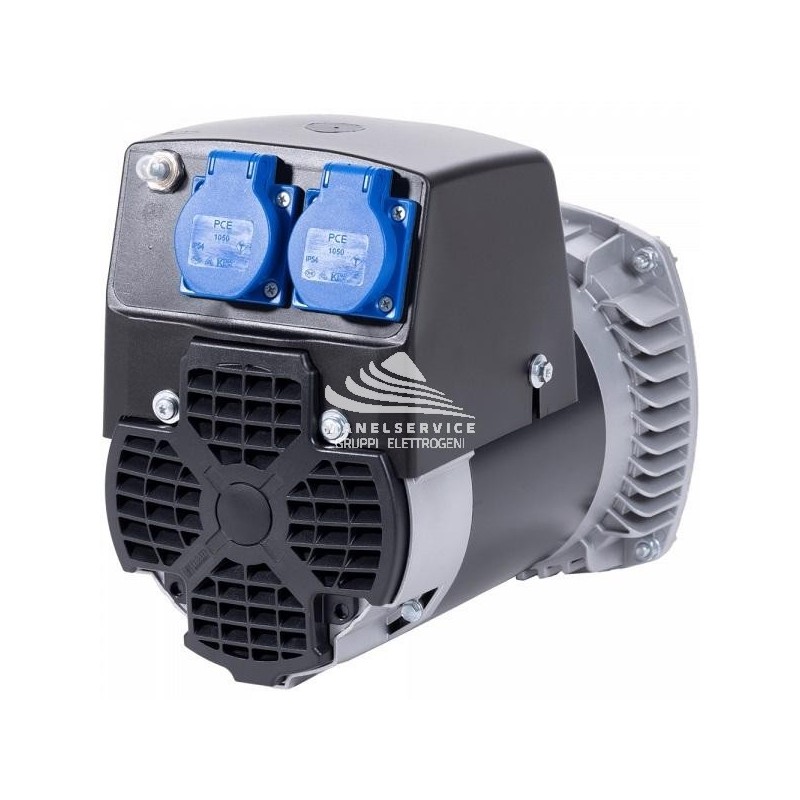

NSM K80 C - SINGLE PHASE ALTERNATOR 2.7 KVA CAPACITOR
Phase type: Single-phase
Maximum power Single-phase: 2.7 KW
Maximum power Single-phase: 2.7 KVA
Frequency: 50 Hz
Voltage: 230 V
Degree of protection: IP23
Alternator revolutions: 3000 rpm
Number of poles: 2
Efficiency: 73%
Weight: 15.5 Kg
Constant speed alternator
Brushless
Voltage Regulator: Capacitor
- Phase
- Single phase
- Maximum power single phase (KW)
- 2.7
- Maximum power single phase (KVA)
- 2.7
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine rpm (rpm)
- 3000
- Poles
- 2
- Single-phase power (KW)
- 2.7
- Single-phase power (KVA)
- 2.7
- Efficiency (%)
- 73
- Protection degree
- IP23
- Motor insulation class
- H
- Brushes
- No
- PMG
- No
- Product type
- Alternator
- Type of alternator
- Constant Speed
- Voltage regulator
- Capacitor
- Weight (Kg)
- 15.5
NSM K80 C
The NSM K80 C is a 2.7 KVA single-phase constant speed alternator with capacitor voltage regulator.
This alternator belongs to the portable category with 2 poles of 3000 rpm.
The versatility of NSM products and their robust design make the industrial series suitable to meet the requirements of industry and the most demanding technological specifications required in various applications.
To couple the NSM K80 C alternator to a main engine, you can choose between these flanges and discs:
- J609a cone 19
- B34
Please check the compatibility of the available couplings with your engine before placing your order.
Configuration included in the price: without top cover and without cable connector.
Not binding images and technical data.
NSM BLIND TOP COVER WITH CABLE CONNECTOR FOR K80 AND KR80 SERIES
NSM BLIND TOP COVER WITH CABLE CONNECTOR PREDISPOSED FOR BATTERY CHARGER FOR K80 AND KR80 SERIES
NSM BLIND TOP COVER WITH CABLE CONNECTOR PREDISPOSED FOR BATTERY CHARGER FOR K80 AND KR80 SERIES
NSM N.1 SCHUKO 16A + THERMAL SWITCH FOR K80 AND KR80 SERIES
NSM N.2 SCHUKO 16A + THERMAL SWITCH FOR K80 AND KR80 SERIES
NSM N.2 230V 16A 3P CEE + THERMAL SWITCH FOR K80 AND KR80 SERIES
NSM SOCKETS + SWITCH C/O 115/230V + N.2 THERMAL SWITCHES FOR K80 AND KR80 SERIES
NSM N.2 115V 16A 3P CEE + THERMAL SWITCH FOR K80 AND KR80 SERIES
NSM N.1 DUPLEX 125V 15A 3P + THERMAL SWITCH FOR K80 B-C-D SERIES
