NSM K100 F - SINGLE PHASE ALTERNATOR 5 KVA CAPACITOR

  • New
NSM K100 F - SINGLE PHASE ALTERNATOR 5 KVA CAPACITOR
search
  • NSM K100 F - SINGLE PHASE ALTERNATOR 5 KVA CAPACITOR
  • NSM K100 F - SINGLE PHASE ALTERNATOR 5 KVA CAPACITOR
NSM
NSM K100 F J609a c 19
New product

Phase type: Single-phase
Maximum power Single-phase: 5 KW
Maximum power Single-phase: 5 KVA
Frequency: 50 Hz
Voltage: 230 V
Degree of protection: IP23
Alternator revolutions: 3000 rpm
Number of poles: 2
Efficiency: 75%
Weight: 21.5 Kg
Constant speed alternator
Brushless
Voltage Regulator: Capacitor

Technical features
Phase
Single phase
Maximum power single phase (KW)
5
Maximum power single phase (KVA)
5
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
5
Single-phase power (KVA)
5
Efficiency (%)
75
Protection degree
IP23
Motor insulation class
H
Brushes
No
PMG
No
Product type
Alternator
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
21.5
Details

NSM K100 F

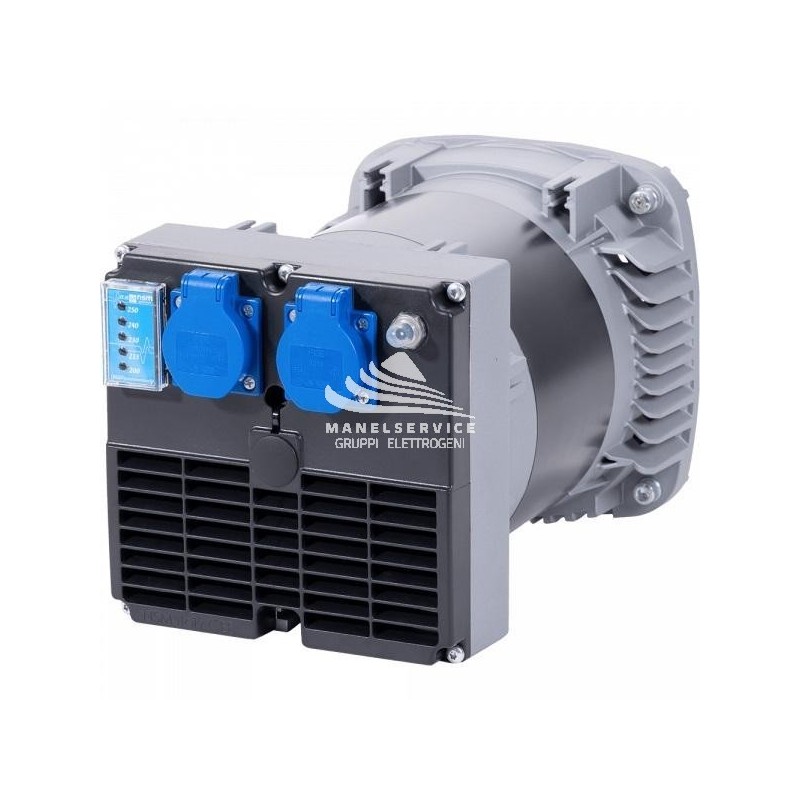

The NSM K100 F is a 5 KVA single-phase constant speed alternator with capacitor voltage regulator.
This alternator belongs to the portable category with 2 poles of 3000 rpm.
The versatility of NSM products and their robust design make the industrial series suitable to meet the requirements of industry and the most demanding technological specifications required in various applications.

To couple the NSM K100 F alternator to a main engine, you can choose between these flanges and discs:
- J609a cone 19
- J609b cone 22
- J609b cone 25.4
- B3/B9 cone 23

Please check the compatibility of the available couplings with your engine before placing your order.
Configuration included in the price: without top cover and without cable connector.


Not binding images and technical data.
