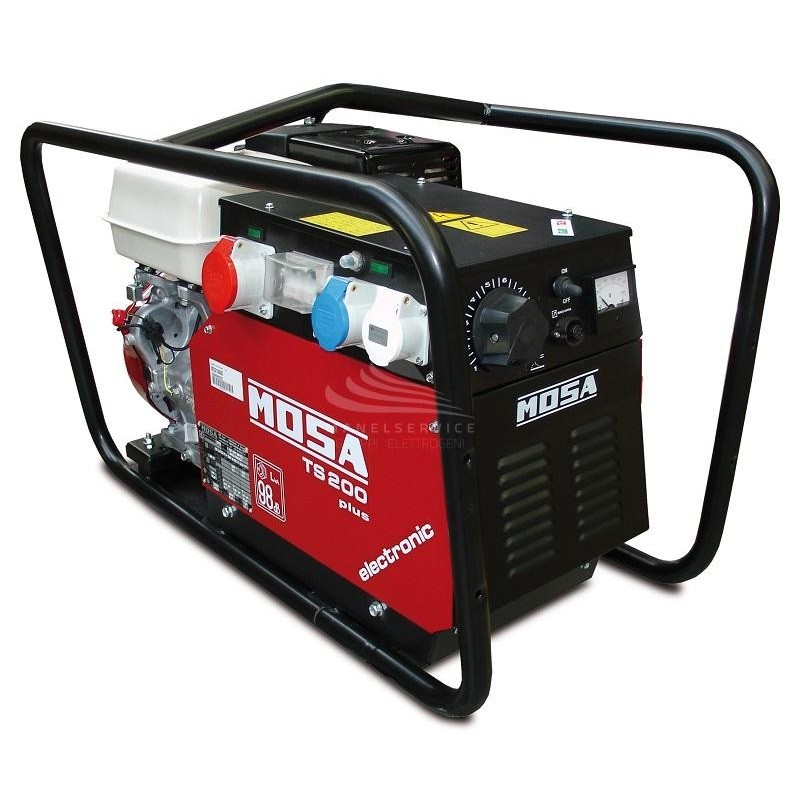

MOSA TS 200 BS/EL Arc Welding Machine 6KVA

MOSA TS 200 BS/EL-P
search
  • MOSA TS 200 BS/EL-P
MOSA
C0FN7060
New product

Fuel: Gasoline
Phase Type: Single-Phase/Three-Phase
Voltage: 230 V / 400 V
Maximum Single-Phase 230 V power (kVA): 5
Maximum Three-Phase 400 V power (kVA): 6
Welding Current (A): 190 A at 35% - 160 A at 60% - 120 A at 100%
Welding Current Type: DC
Type of welding: MMA STICK
Electrodes supported: all maximum diameter 4 mm
Silenced: NO
LENGTH (mm): 910
WIDTH (mm): 530
HEIGHT (mm): 580
Dry weight (Kg): 111

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
3.2
Maximum power single phase (KVA)
4
Maximum power three phase (KW)
4.8
Maximum power three phase (KVA)
6
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
Engine
Honda GX390, 4 stroke, OHV
Emissions Regulations
Stationary Use
Engine rpm (rpm)
3000
Starting system
Manual
Engine capacity (cm³)
389
Number cylinders
1
Cooling
Air
Alternator
Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A)
20 - 155
Welding current (A)
155 at 60% - 120 at 100%
Open circuit voltage (V)
65
Maximum diameter electrodes (mm)
3.25
Type of welding current
DC
Type of welding
MMA
Fuel tank capacity (L)
6.1
Consumption (L/h)
2
Running time (h)
3
Acoustic power
98 dB(A)
Acoustic pressure
73 dB(A) at 7 m
Length (mm)
870
Width (mm)
525
Height (mm)
590
Dry weight (Kg)
106
Silenced
No
Super silenced
No
Engine manufacturer
Honda
Details

MOSA TS 200 BS/EL ARC MOTOR WELDER

MOSA TS 200 BS/EL is a motorwelder, without electronics; the welding current is adjusted by varying the motor speed. Equipped with a HONDA GX-390 11.1 gasoline engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase generator set.

Direct welding current is available on two scales, selectable by connection to two different welding outlets. MOSA TS 200 BS/EL can weld any type of electrode (basic, rutile, cellulosic) up to 4 mm in diameter.

MOSA TS 200 BS/EL can weld any type of electrode (basic, rutile, cellulosic) up to 4 mm in diameter.

MOSA TS 200 BS/EL is intended for industrial and professional use. Driven by an endothermic engine, it consists of several parts such as: the engine, the alternator, the electrical and electronic controls, the body and a protective structure. The assembly is carried out on a steel structure on which elastic supports are foreseen in order to dampen the vibrations and eventually eliminate resonances that would produce noise.

MOSA TS 200 BS/EL is built in accordance with IEC- EN 60974-10.
It must be installed and operated in accordance with the provisions below to achieve electromagnetic compatibility. The limits required by IEC- EN 60974-10 may not be adequate to completely eliminate the interference when the affected equipment is in close proximity or has a high degree of sensitivity. In such cases it may be necessary to use other measures to further reduce interference.

MOSA TS 200 BS/EL can weld any type of electrode (basic, rutile, cellulosic) up to 3.25 mm in diameter. It is a motorwelder suitable for a wide range of uses, from maintenance to non-intensive use on the construction site.

TECHNICAL CHARACTERISTICS MOTORWELDER MOSA TS 200 BS/EL

Fuel: Gasoline
Phase Type: Single-Phase/Three-Phase
Voltage: 230 V / 400 V
Maximum Single-Phase 230 V power (kVA): 5
Maximum Three-Phase 400 V power (kVA): 6
WeldingCurrent (A): 190 A at 35% - 160 A at 60% - 120 A at 100%
WeldingCurrent Type: DC
Type of welding: MMA STICK
Electrodes supported: all maximum diameter 4 mm
Silenced: NO
LENGTH (mm): 910
WIDTH (mm): 530
HEIGHT (mm): 580
Dry weight (Kg): 111

You can view all Mosa power welders in the dedicated section.

Images and technical data are not binding.
