GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR

      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR

      Phase Type: Single Phase / Three Phase
      Maximum single-phase 50Hz power: 5.5KVA / 4.4KW
      Continuous Power Single Phase 50HZ: 2.7KVA / 2.1KW
      Maximum single-phase 60Hz power: 6KVA / 4.8KW
      Continuous Power Single-phase 60HZ: 3KVA / 2.4KW
      Maximum Three-phase 50/60Hz Power: 16KVA / 12.8KW
      Voltage: 115 / 230 / 240 / 400V
      Frequency: 50/60 Hz
      Motor: Perkins 404A-22G
      Engine RPM: 1500 / 1800 rpm
      Power Supply: Diesel
      Emission standard: Stage Zero
      Starter: Electric
      Fuel tank capacity: 70l
      Consumption: 4 l/h at 75% load
      Autonomy: 17.5 h at 75% load
      DC Welding: Electronic regulation
      Intermittency at 60%: 450A - 32V
      Adjustment range: 30A - 500A
      Trigger voltage: 70V
      Max. diameter. Electrode: 8 mm
      Length: 1620 mm
      Depth: 750 mm
      Height: 1290 mm
      Net Weight: 790 kg

      WARNING.

      The motor welding machine CANNOT be used simultaneously for welding and current generation. Current generation starts in both 50 and 60 Hz, welding can only be done in 60Hz mode.

      List price
      16,967.76 € tax incl.
      13,908.00 € tax excl.
      Discounted Price
      16,967.76 € tax incl.
      13,908.00 € tax excl.
      Shipping from 160.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR

      PERSONAL DATA


      Ask a question
      Product: GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      Offer on letterhead
      Product: GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR
      GENSET
      MPM 500 P

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      4,4 (50hz) / 4,8 (60Hz)
      Continuous power single phase (KW)
      2,1 (50hz) / 2,4 (60Hz)
      Maximum power single phase (KVA)
      5,5 (50hz) / 6 (60Hz)
      Continuous power single phase (KVA)
      2,7 (50hz) / 3 (60Hz)
      Maximum power three phase (KW)
      12
      Maximum power three phase (KVA)
      16
      Fuel
      Diesel
      Frequency (Hz)
      50 / 60
      Voltage (V)
      115 / 230 / 240 / 400 V
      Sockets configuration
      1 x 400V 32A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE
      Engine
      Perkins 404A-22G
      Emissions Regulations
      Engine rpm (rpm)
      1500 / 1800
      Starting system
      Electric
      Engine capacity (cm³)
      2216
      Number cylinders
      4
      Cooling
      Water
      Alternator
      Asincrono
      Welding current (A)
      400 A al 100% - 500 A al 60%
      Open circuit voltage (V)
      70
      Fuel tank capacity (L)
      70
      Consumption (L/h)
      4 al 75% del carico
      Running time (h)
      17.5 al 75% del carico
      Acoustic power
      92 dB(A)
      Acoustic pressure
      67 dB(A) at 7 m
      Length (mm)
      720
      Width (mm)
      750
      Height (mm)
      510
      Dry weight (Kg)
      790
      Silenced
      Yes
      Super silenced
      Yes
      Voltage regulator
      AVR
      Engine manufacturer
      Perkins

      Specific References

      New

      GENSET MPM 500P ENGINE DRIVEN WELDER 16KVA 500A SINGLE/THREE PHASE AVR

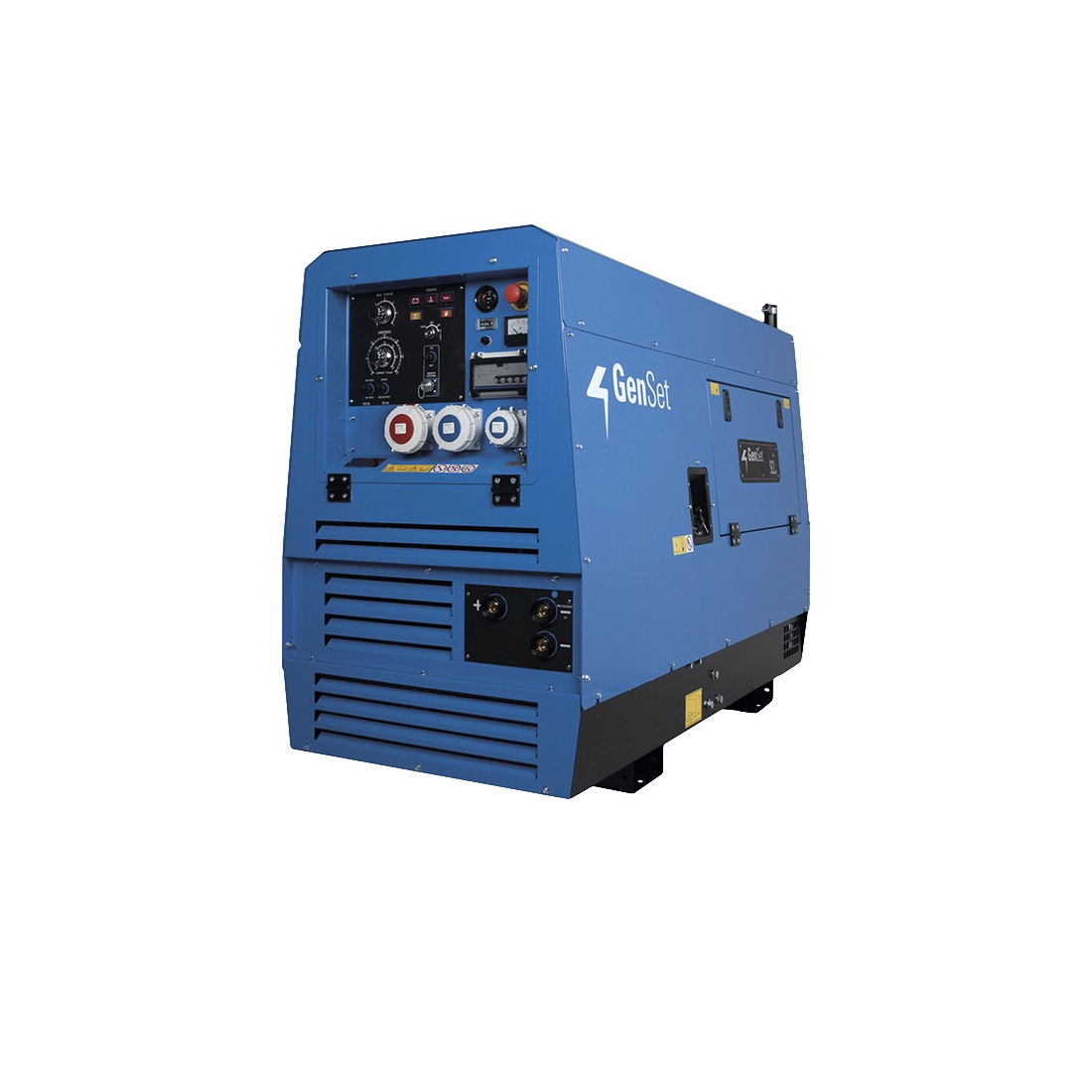

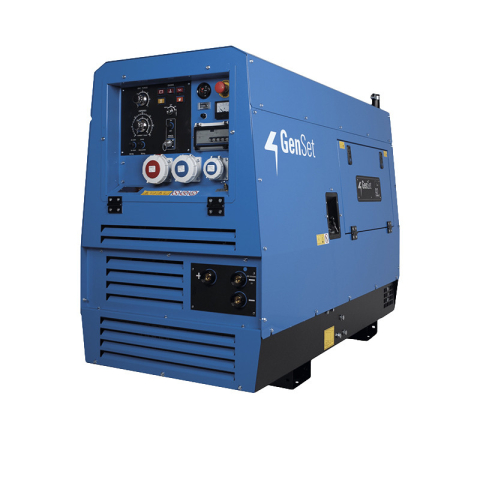

      GENSET MPM 500P is a professional engine driven welder with electronic adjustment of welding parameters and Carbon Arc Gouging socket as standard.

      The GENSET MPM 500P engine driven welder is an excellent solution for those looking for a versatile and reliable welding and power generation device. Manufactured by Genset, this powerful and robust device offers high-level performance to meet both professional and domestic needs.

      GENSET MPM 500P is equipped with a high-efficiency Perkins 404A-22G motor and can produce a maximum power of si 16KVA, in addition thanks to the Electronic Current Regulation, it ensures a constant flow of energy to power welding equipment. This makes it ideal for large welding jobs or in places where grid electricity is not available.

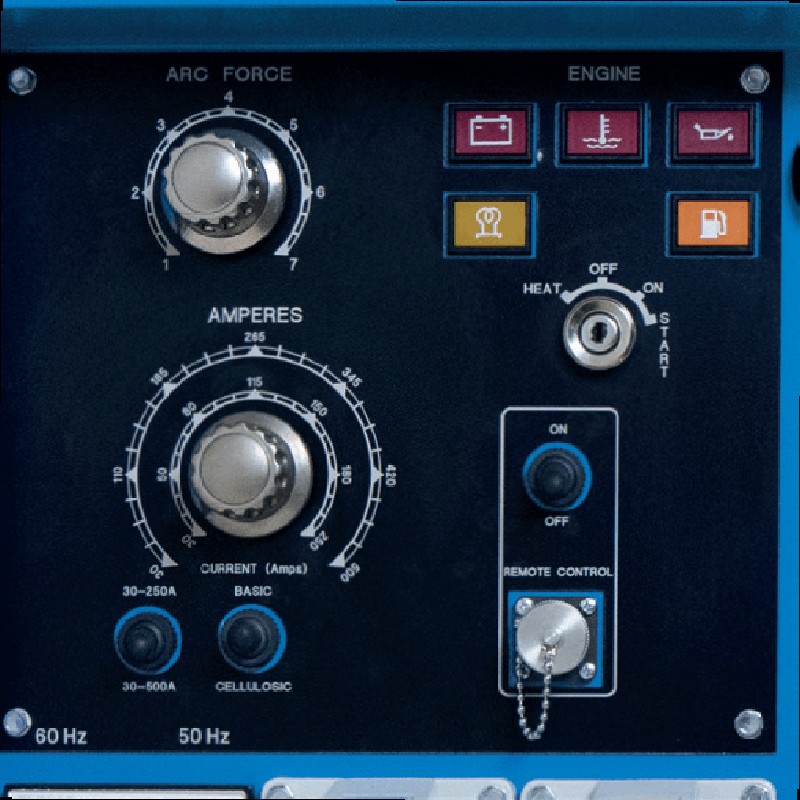

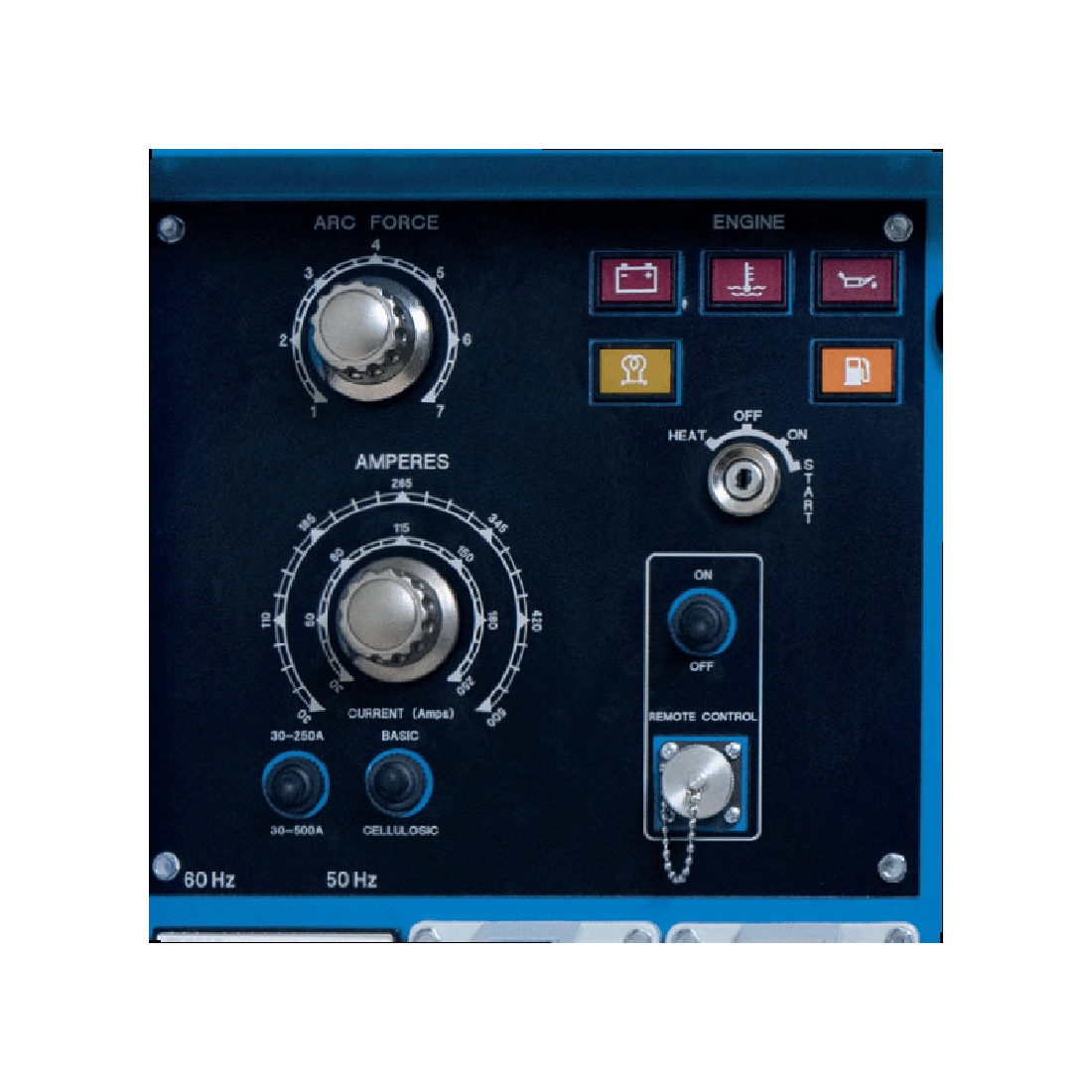

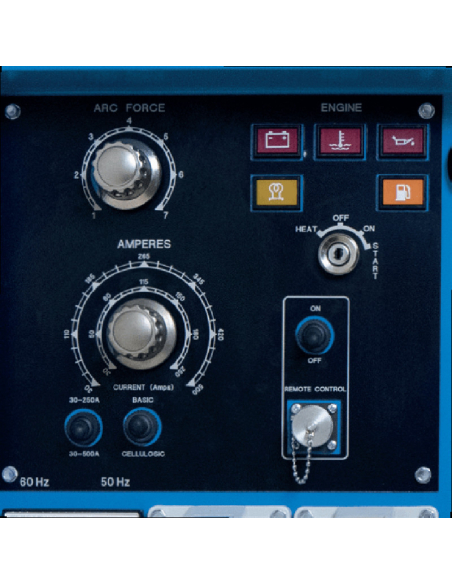

      The GENSET MPM 500P power welder is designed for ease of use and versatility. Equipped with an intuitive control panel, it makes it easy to adjust welding parameters and monitor current flow. It also offers a wide range of welding current options, allowing it to adapt to different welding needs.

      This diesel engine welder is also characterized by its robustness and durability. Built with high-quality materials, it can withstand harsh working conditions and last for a long time. It is also equipped with safety protections, such as automatic shutdown devices in case of overheating or overload, ensuring safe and secure work.

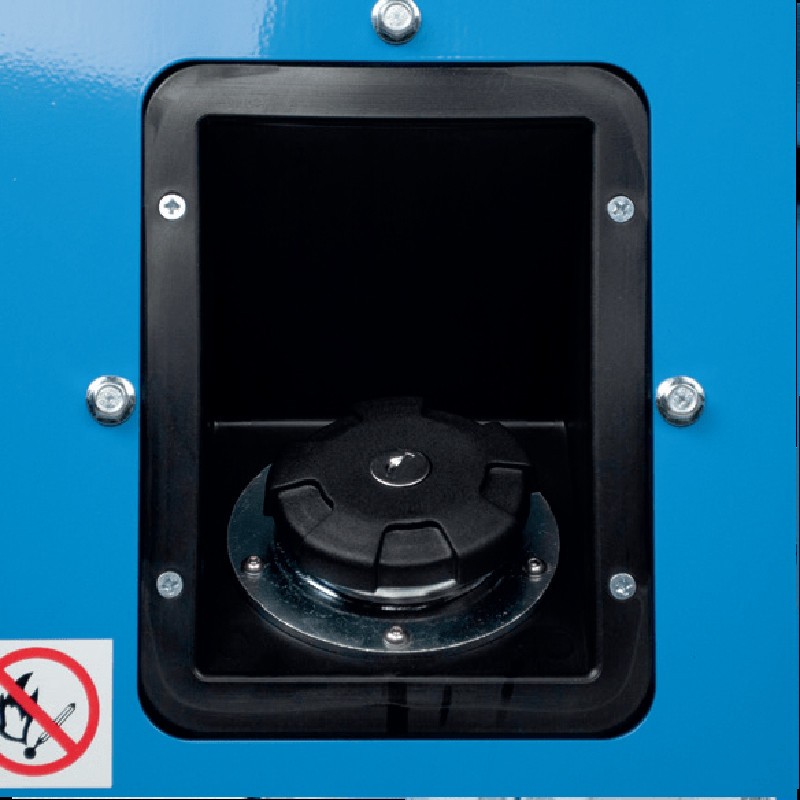

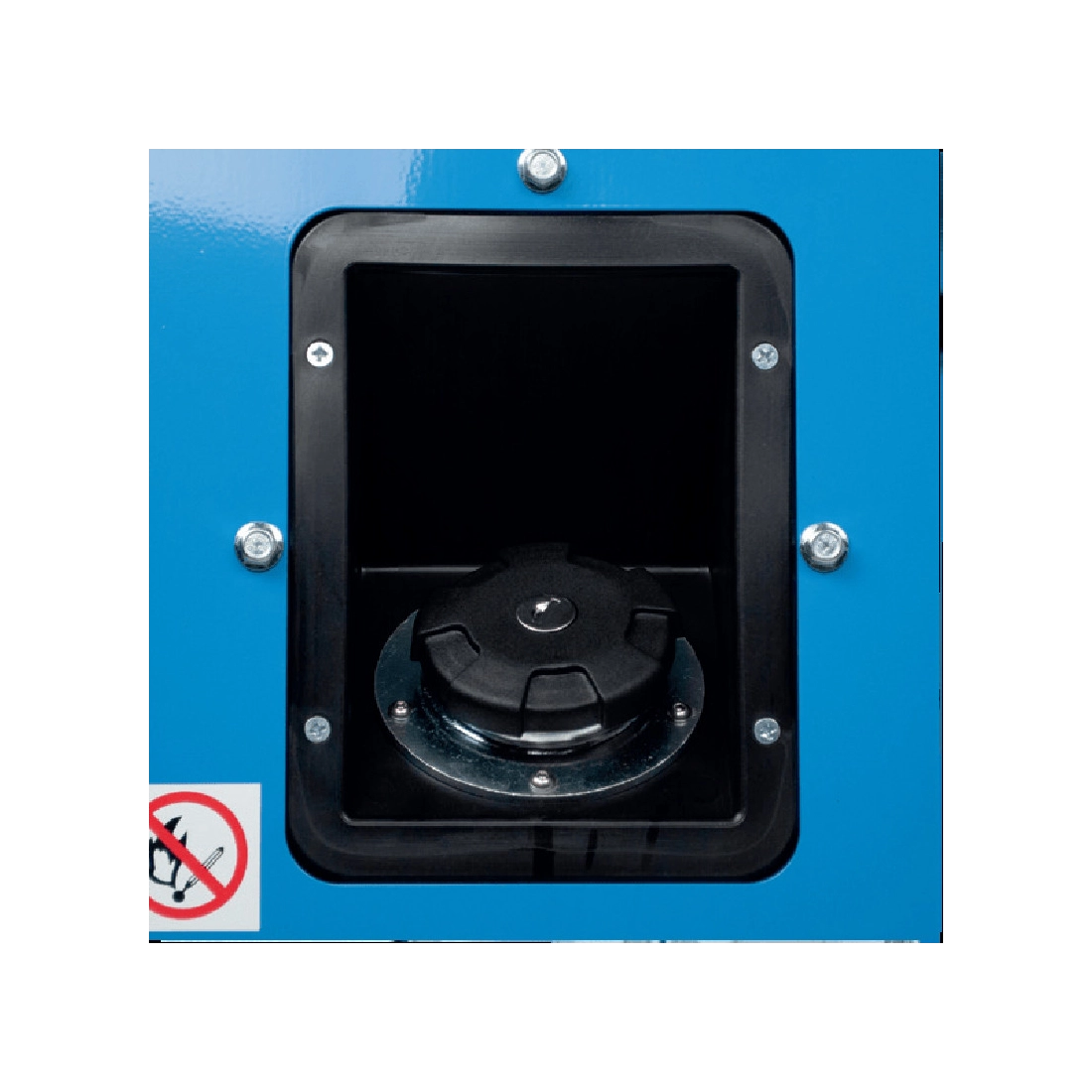

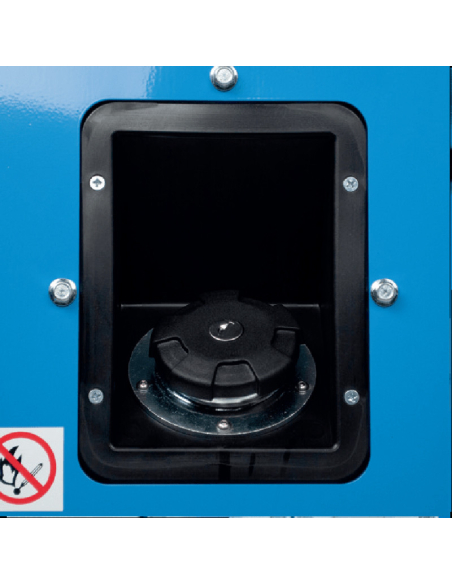

      The GENSET MPM 500P also offers a large fuel tank capacity, allowing long welding sessions without the need for continuous refueling. This makes the device suitable for long-duration jobs or situations where access to fuel may be limited.

      The selector switch on the product's instrument panel allows it to be used in either 50 Hz or 60 Hz generation mode. This feature allows the product to be adapted to different power supply requirements according to local regulations and standards. Thus, the user can easily adjust the power generation frequency according to the specific requirements of the application or geographical area where the product is used.

      WARNING!

      The Genset MPM 500P motor welding machine CANNOT be used simultaneously for welding and power generation. The motor welding machine can be used as a generator set for power generation in both 50Hz and 60Hz, while welding can only be done in 60Hz.

      WELDING CARBON ARC GOUGING

      Carbon Arc Gouging welding, also known as carbon arc gouging, is a process of removing metal using an electric arc generated between a carbon electrode and the workpiece. This method is used to remove excess metal, rust, paint or other unwanted substances from the work surface.

      Carbon Arc Gouging welding offers several advantages. It allows rapid removal of excess metal without damaging the underlying surface. It is particularly effective in removing hard materials such as stainless steel, cast iron or aluminum. In addition, the intensity of the arc can be adjusted to suit different metal removal needs.

      TECHNICAL FEATURES GENSET MPM 500P

      Phase Type: Single Phase / Three Phase
      Maximum single-phase 50Hz power: 5.5 KVA / 4.4 KW
      Continuous Power Single-phase 50HZ: 2.7 KVA / 2.1 KW
      Maximum single-phase 60Hz power: 6 KVA / 4.8 KW
      Continuous power Single-phase 60HZ: 3 KVA / 2.4 KW
      Maximum three-phase 50/60 Hz power: 16 KVA / 12.8 KW
      Voltage: 115 / 230 / 240 / 400 V
      Frequency: 50/60 Hz
      Motor: Perkins 404A-22G
      Motor RPM: 1500 / 1800 rpm
      Power supply: Diesel
      Emission standard: Stage Zero
      Number of cylinders: 4
      Displacement: 2216 cm³
      Cooling: Water
      Starter: Electric
      Tank capacity: 70 l
      Consumption at 1500 rpm: 4 l/h at 75% load
      Consumption at 1800 rpm: 4.8 l/h at 75% load
      Autonomy at 1500 rpm: 17.5 h at 75% load
      Autonomy at 1800 rpm: 14.5 h at 75% load
      DC welding: Electronic regulation
      Intermittency at 60%: 450 A - 32 V
      Adjustment range: 30 A - 500 A
      Trigger voltage: 70 V
      Max. diameter. Electrode: 8 mm
      Acoustic power: 67 dB(A) @ 7 m
      Length: 1620 mm
      Depth: 750 mm
      Height: 1290 mm
      Net Weight: 790 kg

      Looking for a product with different technical characteristics? HERE you can find the area dedicated to GENSET or other specialized brands of engine driven welder.

      Images and technical data are not binding and may be subject to revision by the manufacturer.
