MOSA TS 275 EVO INSTRUMENT THREE-PHASE MOTORWELDER 8 KVA STAGE V

mosa ts 275 evo instrument three phase motorwelder 8 kva stage v
search
  • mosa ts 275 evo instrument three phase motorwelder 8 kva stage v
  • mosa ts 275 evo instrument three phase motorwelder 8 kva stage v
  • mosa ts 275 evo instrument three phase motorwelder 8 kva stage v
MOSA
C1SS0060BKP
New product

Phase Type: SinglePhase/ThreePhase
Maximum ThreePhase Power: 8 KVA / 6.4 KW
Maximum SinglePhase Power: 5 KVA / 5 KW
Voltage: 48 V / 110 V / 230 V / 400 V
Frequency: 50 Hz
Fuel: Diesel
Motor: KOHLER KDW702
Emission Standard: Stage V
Engine RPM: 3000 RPM
Adjustment Range: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (Tig)
Service: 200A / 28V @ 100% - 230A / 29.2V @ 60% (Stick) | 200A / 18V @ 100% - 230A / 19.2V @ 60% - 270A / 20. 8V @ 35% (Tig)
Trigger voltage: 66 VDC
Fuel tank capacity: 38 l
Fuel consumption: 2.5 Lt/h 60 % of load
Run time: 15 h at 60 % of load
Acoustic pressure: 95 dB(A) (70 dB(A) @ 7 m)

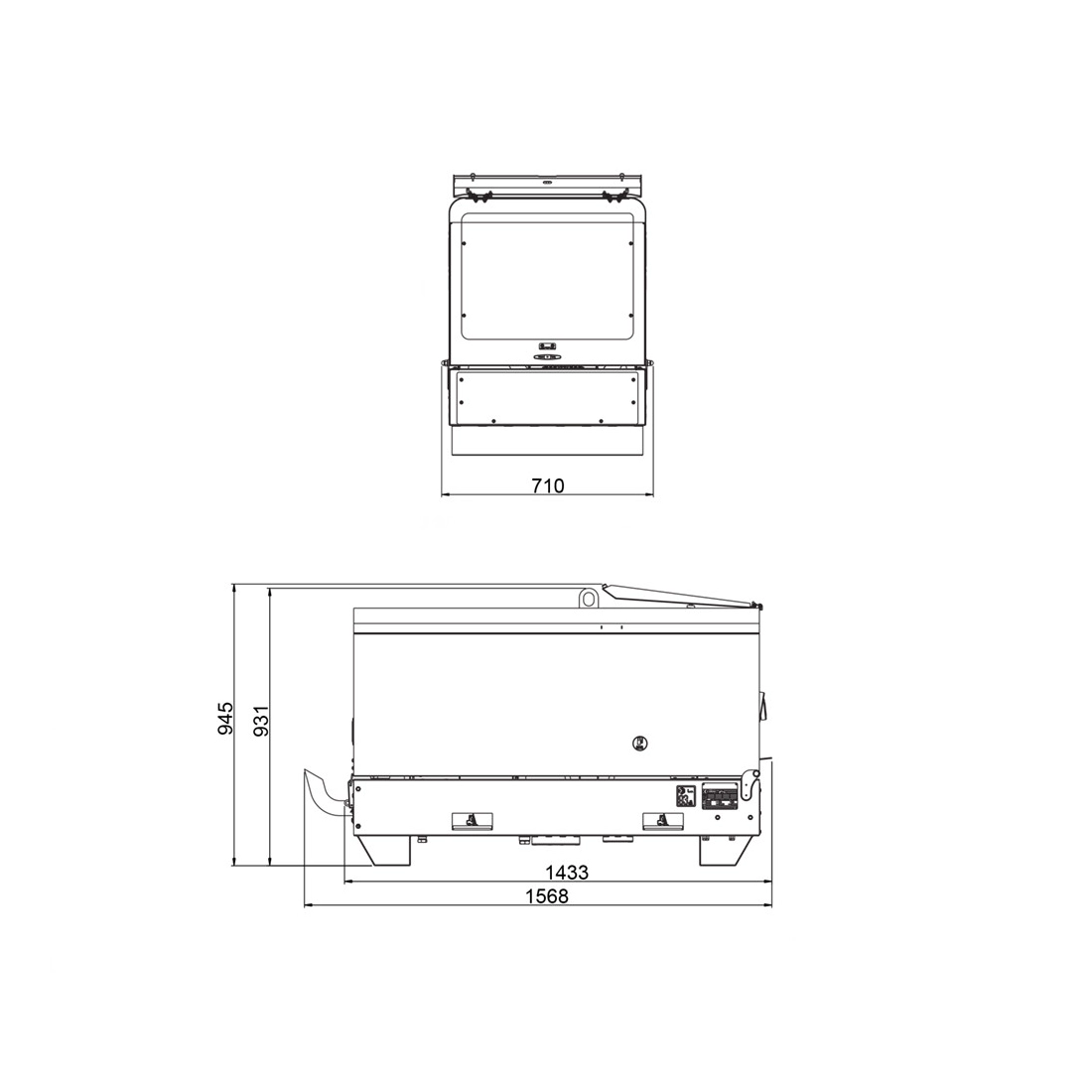

Length: 1568 mm
Width: 710 mm
Height: 945 mm
Dry weight: 390 Kg

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
5
Maximum power single phase (KVA)
5
Maximum power three phase (KW)
6.4
Maximum power three phase (KVA)
8
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
48 / 110 / 230 / 400
Engine
Kohler KDW702
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Alternator
Asynchronous, three-phase, brushless
Open circuit voltage (V)
66
Fuel tank capacity (L)
38
Consumption (L/h)
2.5
Running time (h)
15
Acoustic pressure
70 dB(A) at 7 m
Length (mm)
1568
Width (mm)
710
Height (mm)
945
Dry weight (Kg)
390
Silenced
Yes
Super silenced
Yes
Engine manufacturer
Kohler
Details

MOSA TS275 EVO INSTRUMENT THREE-PHASE MOTORWELDER 8 KVA STAGE V

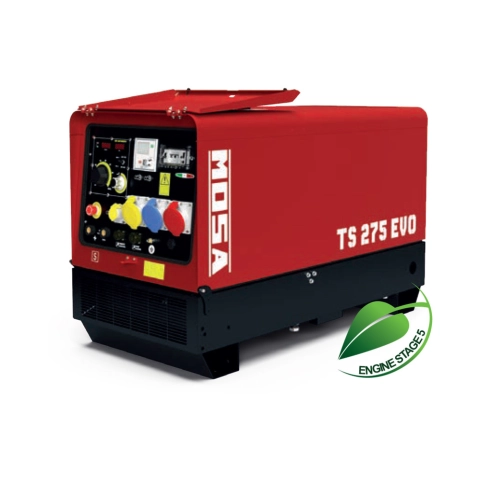

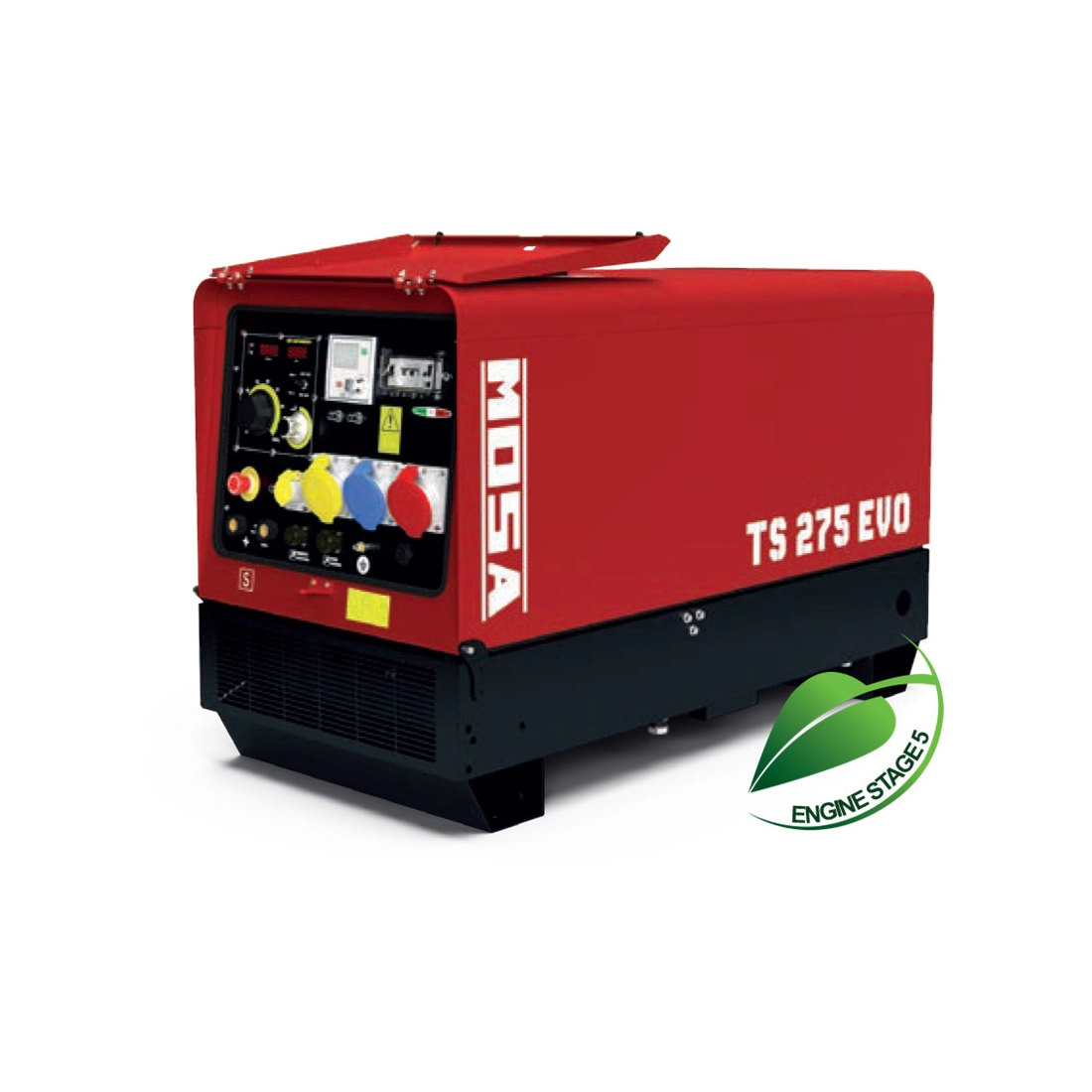

MOSA TS275 EVO is a single-phase/three-phase motorwelder with a KOHLER KDW702 Stage V diesel engine, capable of delivering a maximum power of 8KVA.

MOSA TS275 EVO is a super-silenced motorwelder with a compact fairing, suitable for a wide range of applications including the construction of metal structures, oil pipelines and construction site use.

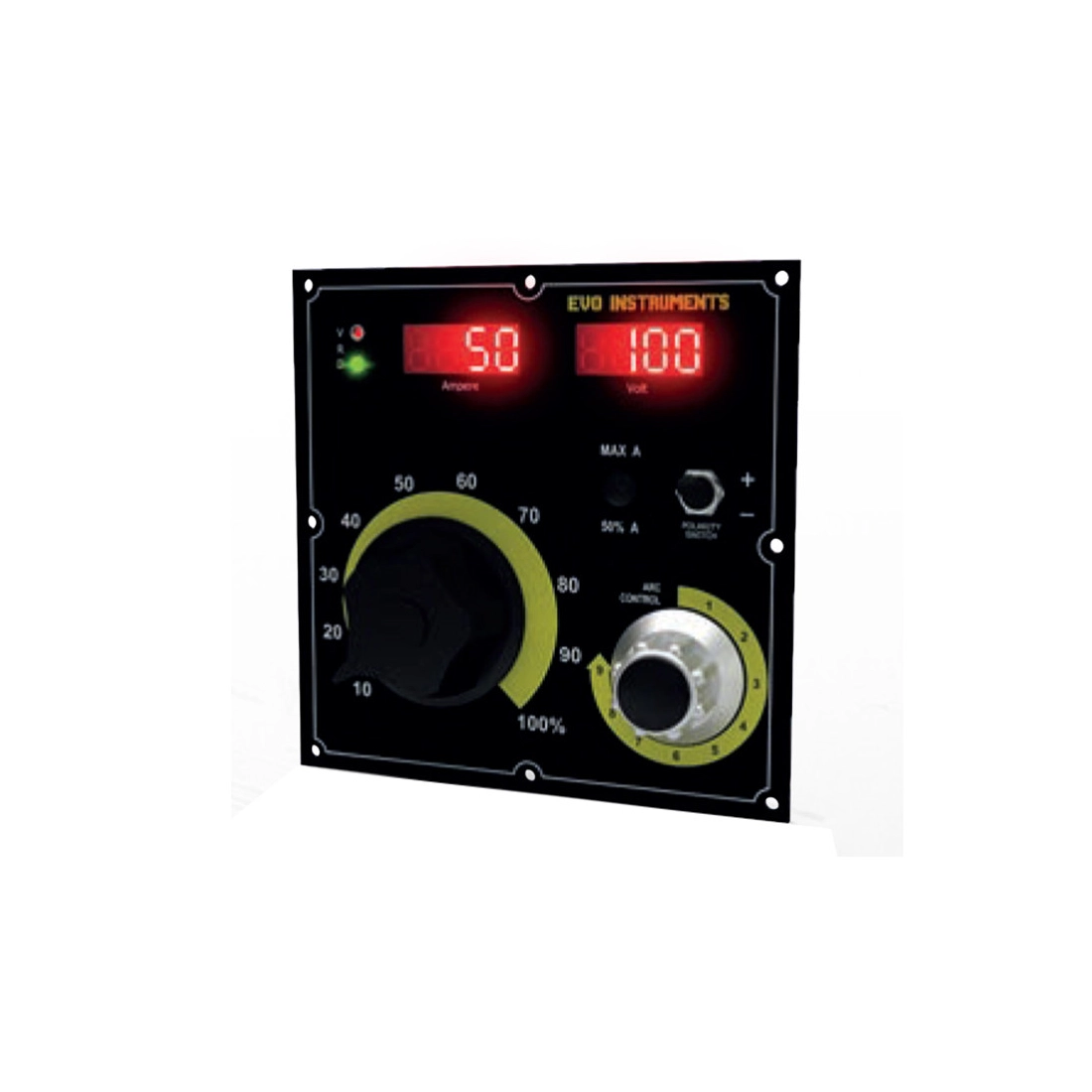

The MOSA EVO INSTRUMENT front panel incorporates a digital control that adds functionality for the user, including:

- Continuous control of current
- Continuous control of arc penetration
- Connector for remote control. Automatic changeover when connector is inserted
- Welding output sockets
- 2x Display
- 4 Digit
- Welding current setting
- Current and voltage measurement during welding
- VRD ON/OFF switch
- Connector for connection to Box PL400

With MOSA TS275 EVO, the user has the possibility not only of choosing the program but also of modifying it, customizing the machine according to his needs. The displays not only show the voltage and current during welding, but also allow them to be set beforehand.

TECHNICAL FEATURES MOSA TS275 EVO:

Phase Type: SinglePhase/ThreePhase
Maximum ThreePhase Power: 8 KVA / 6.4 KW
Maximum SinglePhase Power: 5 KVA / 5 KW
Voltage: 48 V / 110 V / 230 V / 400 V
Frequency: 50 Hz
Fuel: Diesel
Motor: KOHLER KDW702
Emission Standard: Stage V
Engine RPM: 3000 RPM
Adjustment Range: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (Tig)
Service: 200A / 28V @ 100% - 230A / 29.2V @ 60% (Stick) | 200A / 18V @ 100% - 230A / 19.2V @ 60% - 270A / 20. 8V @ 35% (Tig)
Trigger voltage: 66 VDC
Fuel tank capacity: 38 l
Fuel consumption: 2.5 Lt/h 60 % of load
Run time: 15 h at 60 % of load
Acoustic pressure: 95 dB(A) (70 dB(A) @ 7 m)

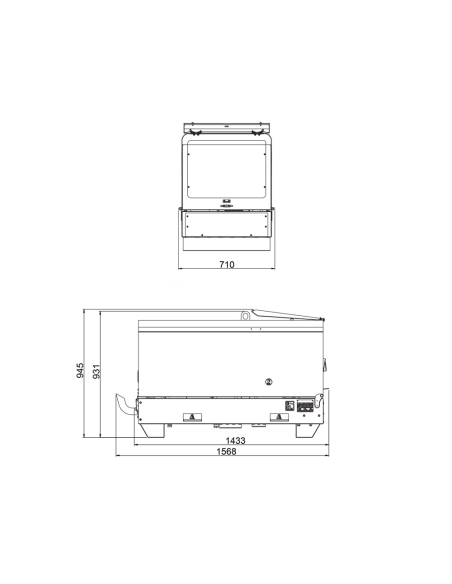

Length: 1568 mm
Width: 710 mm
Height: 945 mm
Dry weight: 390 Kg

Are you looking for a motorwelder with different technical characteristics? Here you can find the area dedicated to MOSA motorwelder or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
