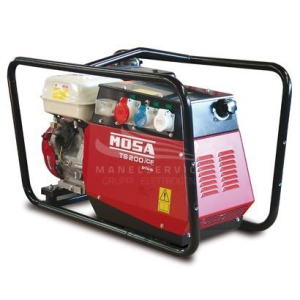

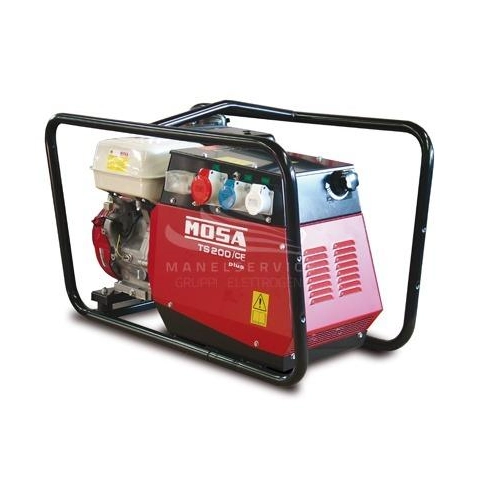

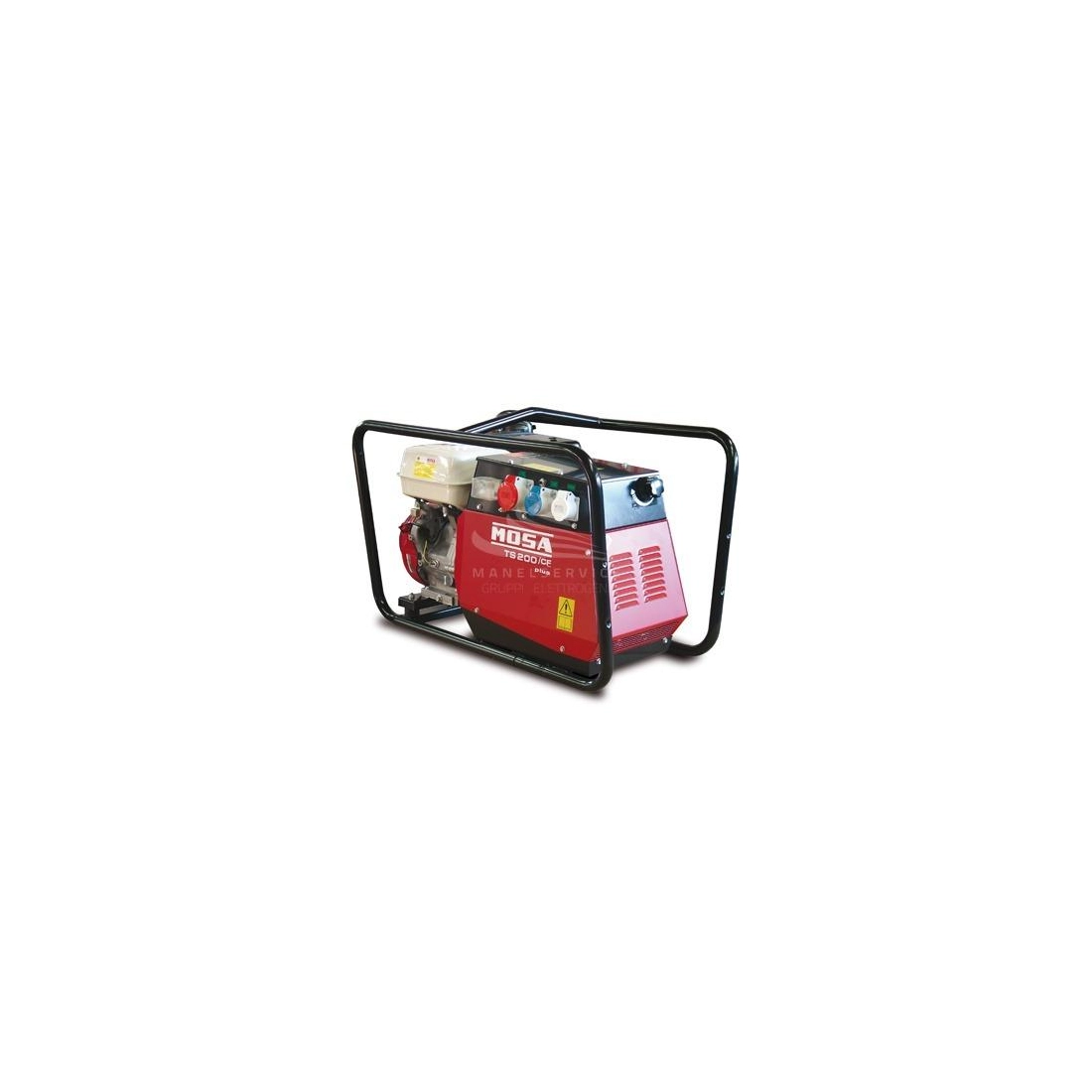

MOSA TS 200 BS-CF

Brand: MOSA

Reference: C0GN7060

Condition: New product

Fuel: Petrol
Phase Type: Single / Three Phase
Voltage: 230 V / 400 V
Single-phase power 230 V (kVA): 5
Three-phase power 400 V (kVA): 6
Duty Cycle (A): 190 A al 35% - 160 A al 60% - 120 A al 100%
Welding output: CC
Type of welding: MMA STICK
Electrodes: any kind up to 4 mm
Silenced: NO
Lenght (mm): 910
Width (mm): 530
Height (mm): 580
Dry weight (Kg): 111

Technical features

Phase: Single phase / Three phase
Maximum power single phase (KW): 4
Maximum power single phase (KVA): 5
Maximum power three phase (KW): 4.8
Maximum power three phase (KVA): 6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
Engine: Honda GX390, 4 stroke, OHV
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Starting system: Manual
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 20 - 190
Welding current (A): 190 at 35% - 160 at 60% - 120 at 100%
Open circuit voltage (V): 98
Maximum diameter electrodes (mm): 4
Type of welding current: DC
Type of welding: MMA
Fuel tank capacity (L): 6.5
Consumption (L/h): 1.86
Running time (h): 3.5
Acoustic power: 98 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 910
Width (mm): 530
Height (mm): 580
Dry weight (Kg): 111
Silenced: No
Super silenced: No
Engine manufacturer: Honda

Details

The TS-200 BS/CF is a professional machine, without electronics capable of delivering up to 200 A with a duty cycle of 60%.

The welding current is adjusted by changing the rpm of the engine. Equipped with an 11.1 HP HONDA GX-390 petrol engine and an asynchronous alternator, it can be used as a welder or as a three-phase and single-phase electrical generator up to 6 kVA.

The welding current is available on two scales, selectable by means of the connection to two different welding sockets. The TS-200 BS/CF is able to weld any kind of electrode (rutile, basic, cellulose) up to 4 mm in diameter.

An engine-driven welder suitable for a wide range of uses from maintenance to site welding fabrication.

In according with CE regulation

WELDING
Current range, continuous: 20 ÷ 100A / 90 ÷ 190A
Duty cycle: 190 A 35% - 160 A 60% - 120 A 100%
Open circuit voltage: 98 V
Arc welding source in D.C. welding
Welds any type of electrode, including cellulosic
Double welding scale 20-100A / 90-190A
A.C. generator, single-phase and three-phase

GENERAL
Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
Protective frame
Dry weight: 111 kg
Dimensions: 910x530x580 mm
Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m)

In according with CE regulation

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
