MOSA TS 300 KSX-EL Silenced TIG MMA Arc Welder

MOSA TS 300 SC/EL
search
  • MOSA TS 300 SC/EL
MOSA
C0PA6060 230-400
New product

OUT OF PRODUCTION

Fuel: Diesel
Phase Type: Single / Three Phase
Voltage: 48 V / 230 V / 400 V
Single-phase power 230 V (kVA): 5
Three-phase power 400 V (kVA): 10
Duty Cycle (A): 300 A al 60% - 250 A al 100%
Welding output: CC
Type of welding: MMA STICK - TIG
Electrodes: any kind up to 6 mm
Silenced: Silenced 71 dB(A) @ 7m
Lenght (mm): 1320
Width (mm): 790
Height (mm): 750
Dry weight (Kg): 375
Electric Starter

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
4
Maximum power single phase (KVA)
5
Maximum power three phase (KW)
8
Maximum power three phase (KVA)
10
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1x400V 32A 3P+N+T CEE + 1x230V 32A 2P+T CEE + 2 DINSE 200 A - 48V
Engine
Kohler KD 477/2, 4 stroke
Emissions Regulations
Stationary Use
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
954
Number cylinders
2
Cooling
Air
Inyección
Direct
Alternator
Asynchronous three-phase, self-excited, self-regulated, brushless
Protection degree
IP23
Regulation current (A)
20 - 300
Welding current (A)
300 at 60% - 250 at 100%
Open circuit voltage (V)
70
Maximum diameter electrodes (mm)
6
Type of welding current
DC
Type of welding
MMA / MIG
Fuel tank capacity (L)
23
Consumption (L/h)
2.5
Running time (h)
9.2
Acoustic power
96 dB(A)
Acoustic pressure
71 dB(A) at 7 m
Length (mm)
1320
Width (mm)
790
Height (mm)
750
Dry weight (Kg)
375
Silenced
Yes
Super silenced
Yes
Engine manufacturer
Kohler
Details

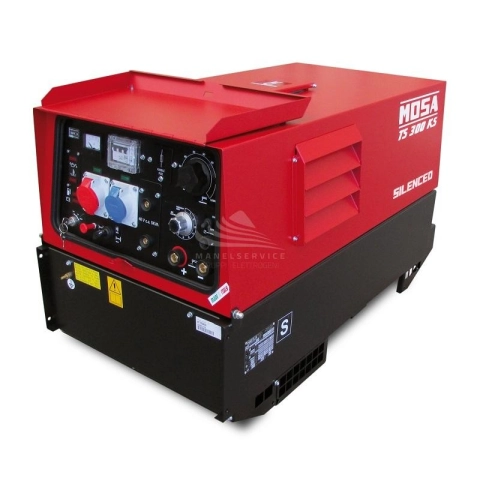

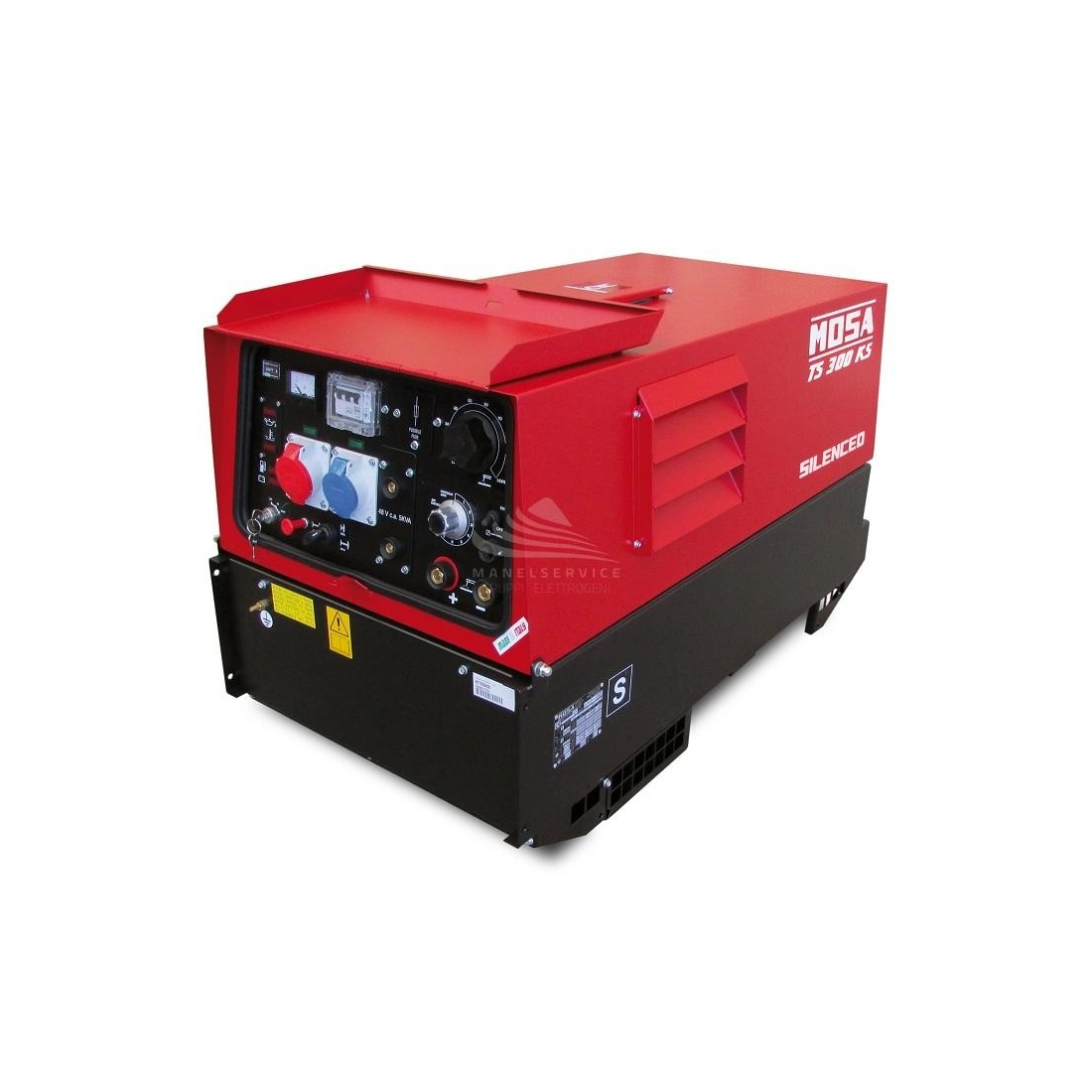

MOSA TS300 KSX/EL MOTORWELDING 10KVA

MOSA TS300 KSX/EL is a lightweight and efficient motorwelding, equipped with a KOHLER KD477-2 Diesel engine capable of delivering a power of 10KVA.

MOSA TS300 is equipped with a KOHLER KD477-2 Diesel engine and an asynchronous alternator, can be used simultaneously as a motorwelding and as a three-phase and single-phase generator set.

The welding current is continuous and can weld any type of electrode (basic, rutile, cellulosic) up to 6 mm in diameter.
MOSA TS 300 KSX/EL is suitable for a wide range of uses, such as work on building structures and piping.
The difference between the two models lies in their level of soundproofing. MOSA TS 300 is a super-silenced motorwelding, specially designed to reduce noise emission.

Standard version:
- Sockets: 1x400V 32A 3P+N+T CEE + 1x230V 32 A 2P+T CEE + 2 DINSE 200 A sockets for 48V

Versions on request
- Sockets: 1x400V 32 A 3P+N+T CEE - 1x230V 32A 2P+T CEE + 2x230V 16A 2P+TCEE
- Sockets: 1x400V 32A 3P+N+TCEE - 1x230V 32 A 2P+TCEE + 2x110V 16A 2P+TCEE

MOSA TS300 KSX/EL MOTORWELDING TECHNICAL SPECIFICATIONS

Fuel: Diesel
Phase Type: SinglePhase / ThreePhase
Voltage: 48 V / 110V / 230 V / 400 V
Max SinglePhase 230 V Output (kVA): 5
Max ThreePhase 400 V Output (kVA): 10
Max 110 V Power: 2. 5
Max 48 V power: 5
Adjustment range: 20 A - 300 A
Welding urrent (A): 300 A at 60% - 250 A at 100%
Weldingcurrent type: DC
Weldingtype: MMA STICK - TIG
Electrodes supported: all maximum diameter 6 mm
Silenced: 71 dB(A) @ 7m
LENGTH (mm): 1320
WIDTH (mm): 790
HEIGHT (mm): 750
Dry weight (Kg): 375
Electrical Power

Are you looking for a product with different technical characteristics? Here you can find the full range MOSA or other brands specializing in the field.

Images and technical data are not binding.
