IDROMAR MC5S DUPLEX WATERMAKER 500Lt/h
Hourly production at 25°C: 500Lt/h
Daily production at 25°C: 10000 Lt/day
Salinity water produced: 300/400 PPM
Power consumption: 8 KW
Length: 750 mm
Width: 600 mm
Height: 850 mm
Weight: 260 Kg
Hydraulic connections
Sea suction: 3/4'' x 2
Suction boxes: 3/4'' x 2
Discharge: 1/2'' x 2
Production: 1/2'' x 2
- Power (W)
- 8000
- Length (mm)
- 750
- Width (mm)
- 600
- Height (mm)
- 850
- Feed Type
- 230 V
- Production for hour at 25°C (Lt/h)
- 500
- Daily production at 25°C (Lt/day)
- 10000
- Salinity of water produced (PPM)
- 300/400
- Capacity (Lt/h)
- 500
- Remote panel
- Digital
- Weight (Kg)
- 260
IDROMAR MC5S DUPLEX WATERMAKER 500Lt/h

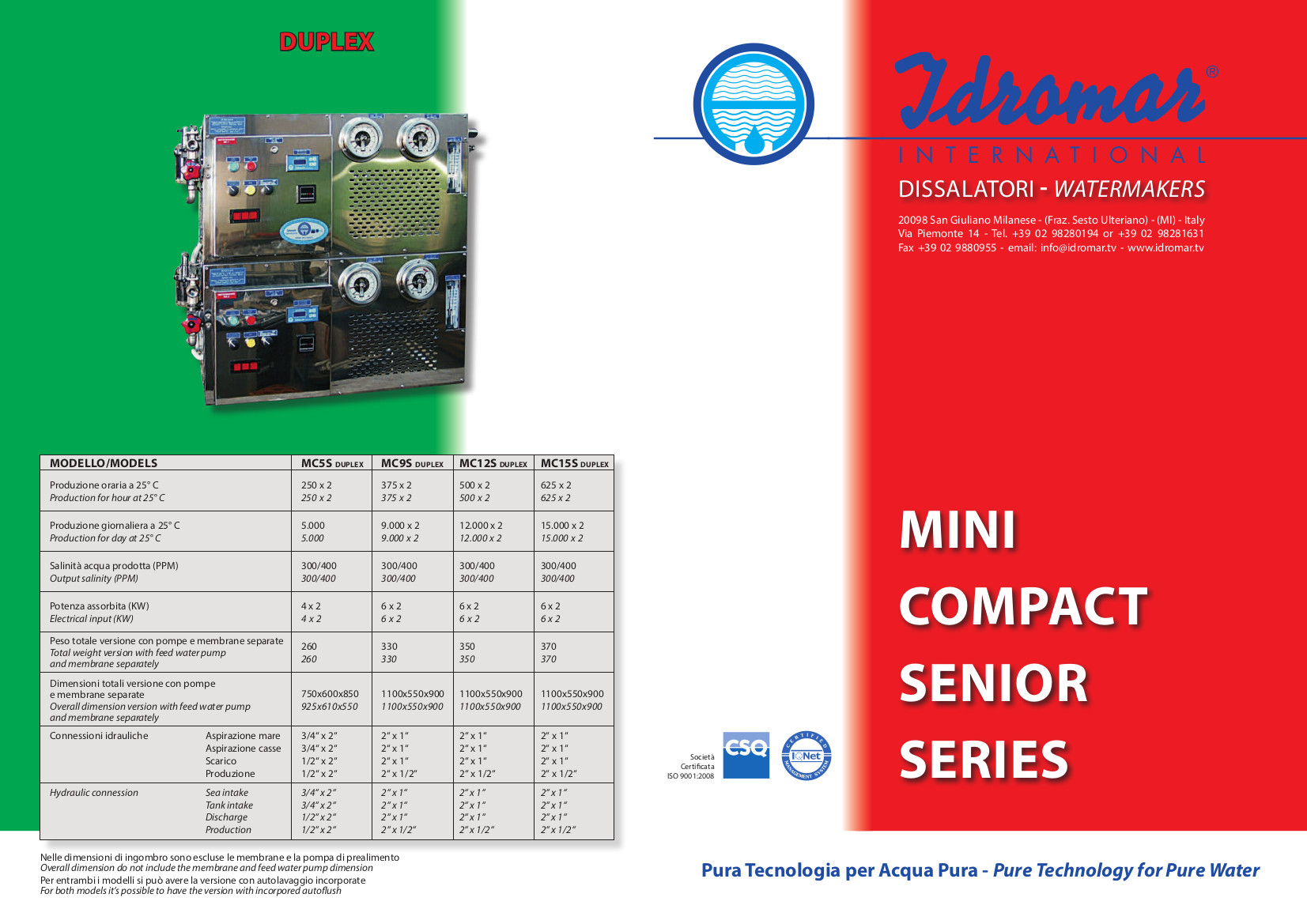

Watermaker IDROMAR MC5S DUPLEX is composed of two reverse osmosis plants in a single frame with the possibility of simultaneous or independent operation with capacity 500Lt/h
IDROMAR MC5S DUPLEX is an osmosis plant recommended when the demand for drinking water by the user is not satisfied by a single plant.
The Watermaker IDROMAR is a reverse osmosis plant with a capacity of 500Lt/h very compact and efficient, thanks to its modular composition it is easy to install and operate.
The Watermaker IDROMAR with a capacity of 500Lt/h is incredibly accessible to facilitate the operations of ordinary or extraordinary maintenance and therefore all the works can be carried out from the front panel.
It is also possible to design the unit with all the components incorporated such as the pre-feeding pump, sand filters and regeneration tank. The MC5S Duplex Watermaker clearly takes up more space but simplifies installation, and the entire unit is compact and aesthetically pleasing.
The MC5S Duplex Watermaker clearly takes up more space but simplifies installation, and the entire unit is compact and aesthetically pleasing.
Osmotic units can work separately or simultaneously. The data below is for 2 units working simultaneously. The osmosis system has a number of accessories that can be combined to improve its reliability, effectiveness and facilitate its operation and accessibility.
TECHNICAL CHARACTERISTICS IDROMAR MC5S DUPLEX 500Lt/h
Hourly production at 25°C: 500Lt/h
Daily production at 25°C: 10000 Lt/day
Produced water salinity: 300/400 PPM
Power consumption: 8 KW
Length: 750 mm
Width: 600 mm
Height: 850 mm
Weight: 260 Kg
Hydraulic connections
Sea suction: 3/4'' x 2
Chests suction: 3/4'' x 2
Exhaust: 1/2'' x 2
Production: 1/2'' x 2
If you are looking for another Watermaker similar to Idromar then we suggest you browse our entire catalog dedicated to nautical Watermaker .
Images and technical data are not binding.
Proin ultricies egestas tortor eu cursus. Vivamus consequat tincidunt erat, sed dapibus ligula pulvinar quis. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Quisque sem nibh, vehicula quis elementum a, sagittis a purus. Morbi nec tellus leo. Nunc suscipit molestie erat, vitae pretium turpis efficitur vitae. Nam vulputate imperdiet ante, in imperdiet nisl euismod eget. Nam sed magna id lectus ornare ornare. Aliquam venenatis turpis nec velit commodo vestibulum.
Remote Panel Automatic Duplex Version
Supplement automatic version Single Version
Supplement automatic version Duplex Version
Semi-automatic panel start-stop-reset and alarming Single Desalinator
Semi-automatic panel start-stop-reset and alarming Duplex Desalinator
Monitoring box for PLC connection Single Desalinator
Monitoring box for PLC connection Duplex Desalinator
Sand filter 10X35X2750
Sand filter 16X49
Sand filter 16X49
Stainless steel filter active carbon GEM3
Stainless steel filter active carbon GEM 7/10
Sterilizer UV STERILIZER 2500 LT/H
Sterilizer UV STERILIZER 5000 LT/H
Sterilizer UV STERILIZER 8000 LT/H
Sterilizer UV STERILIZER 10000 LT/H
Sterilizer UV STERILIZER 13000 LT/H
Sterilizer UV STERILIZER 18000 LT/H
Dosing unit silver ion
SIL 168 SILVER ELECTRODE SYSTEM
Water softner IDROFAST 9100
Limestone filter F60
Limestone filter 10X23
Limestone filter 10X35
