TOWING TROLLEY GRILLO2

  • New
TOWING TROLLEY GRILLO2
search
  • TOWING TROLLEY GRILLO2
  • TOWING TROLLEY GRILLO2
TRA091
New product

Total mass: 750 Kg
Tare: 230 Kg
Useful Size: 2950 X 1640 X 100 mm
MAX Size: 4300 X 2300 mm
Type Bodywork: CASSONE h 100 mm
No. of axes: 13°
Wheels: C
Brakes: No

Technical features
Length (mm)
2950
Width (mm)
1640
Trailer type
Multifunction
Struttura rimorchio
Box/Underground
Tare mass (Kg)
230
Fiscal load (Kg)
750
Brake
No
Dimensione utile (mm)
2950 X 1640 X 100
Dimensione max (mm)
4300 X 2300
Details

TOWING TROLLEY GRILLO2 DRAWBAR V GALVANIZED FRAME

The towing trolley Grillo2 is equipped with a capacity of 2950 X 1640 X 100 mm with galvanized frame allows the loading of mezzie materials without worry.

The towing trolley is born in the PLANAL version with a 10 cm high containment edge on the sides and front. To further increase the loading capacity, it is possible to supply the optional side rails of easy application and use, to allow maximum safety.

The Grillo2 towing trolley does not need a loading ramp as they have a low edge and allow the easy loading of small vehicles. If the loading vehicle is very low, such as a grass mower tractor, in this case to facilitate loading and unloading the optional supply of the Ramp/Rear ramp is possible, easy to use and use.

The platform is covered with phenolic marine plywood, with anti-slip to safely load your vehicles and equipment. The Sturdy Frame is hot-dip galvanized with the V-shaped Rudder. The Axle is with torsion bar suspension, with independent wheels, with the very good external wheels of the 165/R13 C platform.

The towing trolley is complete with rear lights with integrated reversing light and all the functions for a correct urban and extra-urban transport.

TECHNICAL CHARACTERISTICS GRILLO2 TOWING TROLLEY

Total mass: 750 Kg
Tare: 230 Kg
Useful Size: 2950 X 1640 X 100 mm
MAX Size: 4300 X 2300 mm
Type Bodywork: CASSONE h 100 mm
No. of axes: 13°
Wheels: C
Brakes: No

Do you need a towing trolley with different characteristics? HERE you can find our dedicated section with the whole range of towing trolleys, discover the one suitable for your needs.

Images and technical data are not binding and may be subject to revision by the supplier.

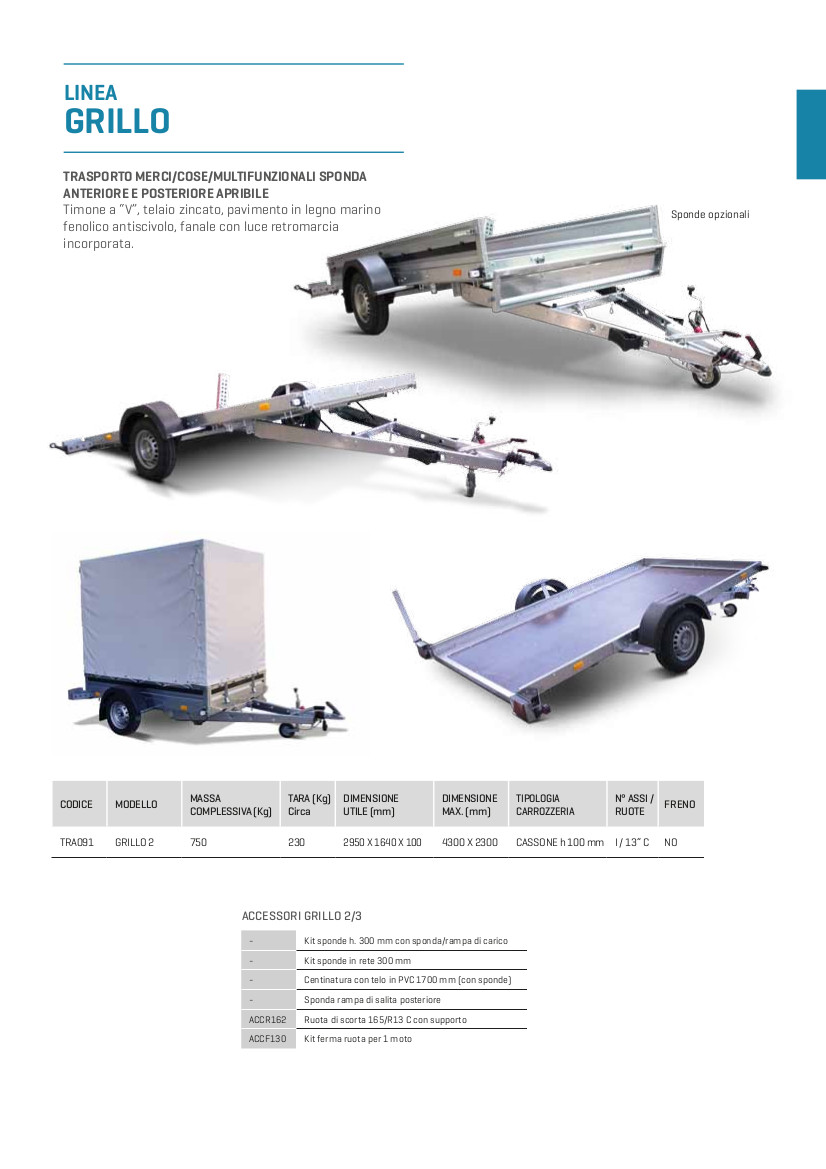

Technical Sheet / Manuals
