GENMAC Urban G15000YS GENERATOR 14,9KVA

  • New
GENMAC Urban G15000KS Diesel Generating set 15 KVA 12 KW Silenced
search
  • GENMAC Urban G15000KS Diesel Generating set 15 KVA 12 KW Silenced
GENMAC
Urban G15000YS
New product

Phase Type: Single-phase / Three-phase
Single-phase Continuous Power: 4.5KVA / 3.6KW
Single-phase Maximum Power: 5.0KVA / 4.0KW
Three-phase Continuous Power: 13.5KVA / 10.8KW
Three-phase Maximum Power: 14.9KVA / 11.9KW
Motor: Yanmar 3TNV76-HMF
Emission Regulation: Non-Emitting
Starting: Electric
Power Supply: Diesel
Panel Sockets: 1 x Schuko 16A 230V - 2 x 16A 230V - 1 x 16A 400V - 1 x 32A 400V
Voltage: 230 / 400 V
Frequency: 50 Hz
Motor RPM: 3000 rpm
Tank Capacity: 50 l
Autonomy @ 75%: 12 h fixed revolutions
Voltage regulator : AVR
Sound pressure @7m: 68 dBa
Length (mm): 1475
Width (mm): 710
Height (mm): 1060
Dry weight (Kg): 462

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
4
Continuous power single phase (KW)
3.6
Maximum power single phase (KVA)
4.5
Continuous power single phase (KVA)
5
Maximum power three phase (KW)
11.9
Continuous power three phase (KW)
10.8
Maximum power three phase (KVA)
14.9
Continuous power three phase (KVA)
13.5
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x Schuko 16A 230V - 2 x 16A 230V - 1 x 16A 400V - 1 x 32A 400V
Engine
Yanmar 3TNV76
Engine rpm (rpm)
3000
Starting system
Electric
Cooling
Water
Poles
2
Fuel tank capacity (L)
50
Running time (h)
12
Acoustic pressure
68 dB(A) at 7 m
Length (mm)
1475
Width (mm)
710
Height (mm)
1060
Dry weight (Kg)
462
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Yanmar
Details

GENMAC URBAN G15000YS SINGLE-PHASE / THREE-PHASE GENERATOR 14,9KVA

The generator GENMAC Urban G15000YS Single-phase / Three-phase is equipped with a Yanmar diesel-powered engine capable of delivering a power of 14,9KVA with AVR voltage regulator.

High quality professional silenced diesel generator of the construction series, Genmac Urban with power of 14,9KVA, produced by Italian company Genmac. The generator is equipped with an oversized engine with water cooling and a practical electric starter.

For this line of generators is possible the supply of a differential protection circuit, in addition is possible the supply of trolleys for the handling of the unit. Genmac 14,9KVA current generators are used in carpentry, construction, greenhouses, road construction sites, mobile stations, homes, etc..

Genmac Urban power generators are highly reliable machines, built with quality components to be used in the professional field, where reliability is fundamental.

Gen Genmac generators are supplied with AVR card, tank with collection tank and central lifting hook as standard on all models.

AVR Voltage Regulator

The AVR is essential to make the generator work at its best, in fact it all needs an electronic control system, an AVR in fact, which ensures the proper functioning of the machine and the electrical network behind it.

The purpose of the AVR, in a current generator, is to keep the output stable. And if its operation is very simple when resistive loads are fed, more complex is the matter in case of mainly inductive loads: the delayed phase shift current counteracts the inductor magnetic field, causing a voltage drop at the alternator terminals; to compensate for this phenomenon, the AVR intervenes automatically by increasing the excitation current, until the returns to the nominal value. If the load is capacitive, the current acts as a magnetizer for the inductor causing an increase in voltage exit, and the AVR intervenes by reducing the excitation current.

TECHNICAL CHARACTERISTICS OF GENERATOR GENMAC Urban G15000YS 14,9KVA

Phase Type: Singlephase / Threephase
Singlephase Continuous Power: 4.5KVA / 3.6KW
Singlephase Maximum Power: 5.0KVA / 4.0KW
Threephase Continuous Power: 13.5KVA / 10.8KW
Threephase Maximum Power: 14.9KVA / 11.9KW
Motor: Yanmar 3TNV76-HMF
Emission Regulation: Non-Emitting
Starting: Electric
Power Supply: Diesel
Panel Sockets: 1 x Schuko 16A 230V - 2 x 16A 230V - 1 x 16A 400V - 1 x 32A 400V
Voltage: 230 / 400 V
Frequency: 50 Hz
Motor RPM: 3000 rpm
Tank Capacity: 50 l
Autonomy @ 75%: 12 h fixed revolutions
Voltage regulator : AVR
Sound pressure @7m: 68 dBa
Length (mm): 1475
Width (mm): 710
Height (mm): 1060
Dry weight (Kg): 462

If you are looking for another product then you can consult other terrestrial generators in our catalog.

Images and technical data are not binding.

Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Donec bibendum aliquet interdum. Pellentesque suscipit, ipsum at finibus venenatis, purus ante viverra ante, in finibus nisl massa id mauris. Suspendisse facilisis quam vel tortor lobortis molestie. Cras tincidunt ipsum tortor, sit amet accumsan eros finibus eget. Nulla finibus ac enim at facilisis. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse potenti. Etiam sit amet lobortis magna, at gravida dolor. Donec vel sapien turpis.

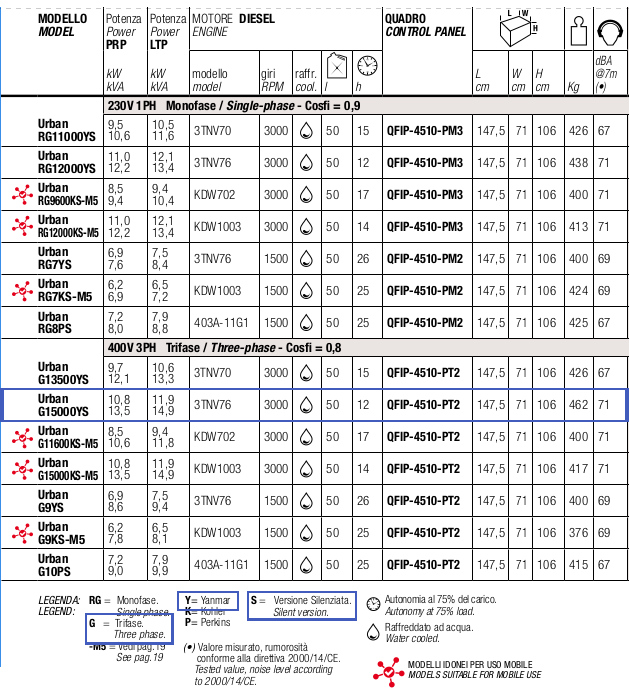

Technical Sheet / Manuals
