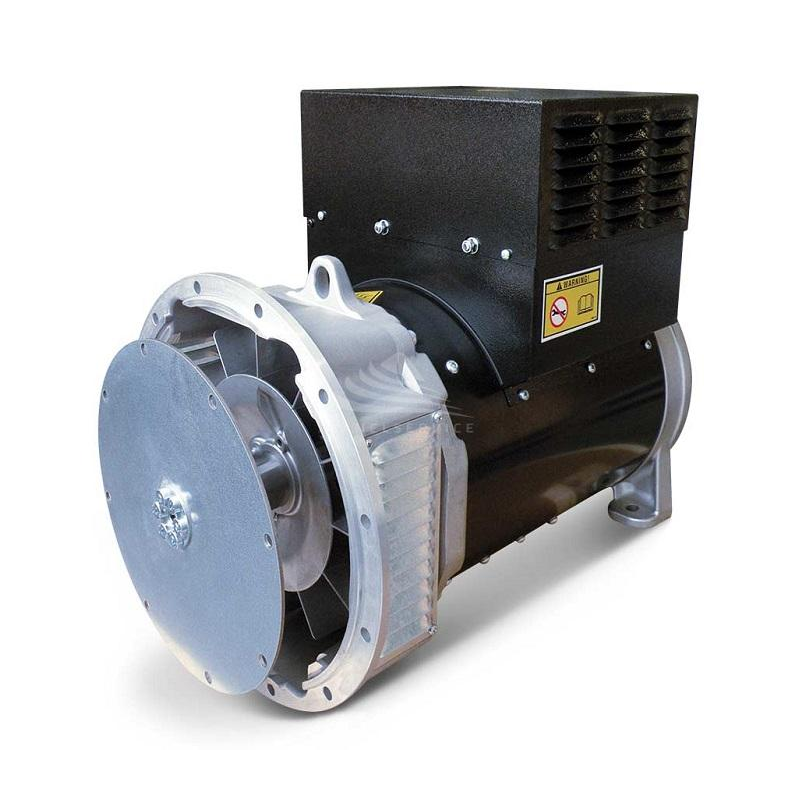

SINCRO IB 4-48/500 Synchronous DC Alternator 24 KW AVR

SINCRO DC ALTERNATOR IB
search
  • SINCRO DC ALTERNATOR IB
SINCRO
IB 4-48/500
New product

Poles: 4
Voltage (V): 48
Frequency (Hz): 50
Rpm Speed: 1500
Power (KW): 24
Current (A): 500
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 160
Protection: IP23

Technical features
Frequency (Hz)
50
Voltage (V)
48
Engine rpm (rpm)
1500
Poles
4
Power (KW)
24
Protection degree
IP23
Current (A)
500
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
160
Details

Designed for applications requiring 24 & 48 VDC low voltage supply, Sincro DC power solutions are suitable both as battery chargers and emergency power supplies of auxiliary circuits, in the telecommunication, transports and industrial field.

Applications
- Battery chargers
- Low voltage LED light towers
- Power supply of auxiliary circuits, high/medium voltage disconnectors coils, signalling devices
- Power supply of monitoring and alarm systems

General features
- AVR electronic voltage regulation
- Based on three-phase synchronous alternators
- 1500 rpm or 3000 rpm with large speed tollerance
- Constant DC output voltage
- Adjustable output voltage
- Current overload protection
- Fan cooled
- Complying with EN 60034-1, IEC 60034-1, ISO 8528-3

Sectors of use
- Telecommunications
- Industry
- Transports
- Military

Advantages
- High voltage stability in a large speed range
- High efficiency
- Low voltage ripple
- High reliability
- Available with the most common couplings
- Fast recovery time during transient by step load variation

Not binding images and technical data.

Technical Sheet / Manuals
List price
4.931,24 € tax incl.
4.042,00 € tax excl.
Discounted Price
2.990,22 € tax incl.
2.451,00 € tax excl.
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO IB 4-48/500 Synchronous DC Alternator 24 KW AVR
Offer on letterhead
Product: SINCRO IB 4-48/500 Synchronous DC Alternator 24 KW AVR
Technical features
Frequency (Hz)
50
Voltage (V)
48
Engine rpm (rpm)
1500
Poles
4
Power (KW)
24
Protection degree
IP23
Current (A)
500
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
160
Details
Technical Sheet / Manuals
