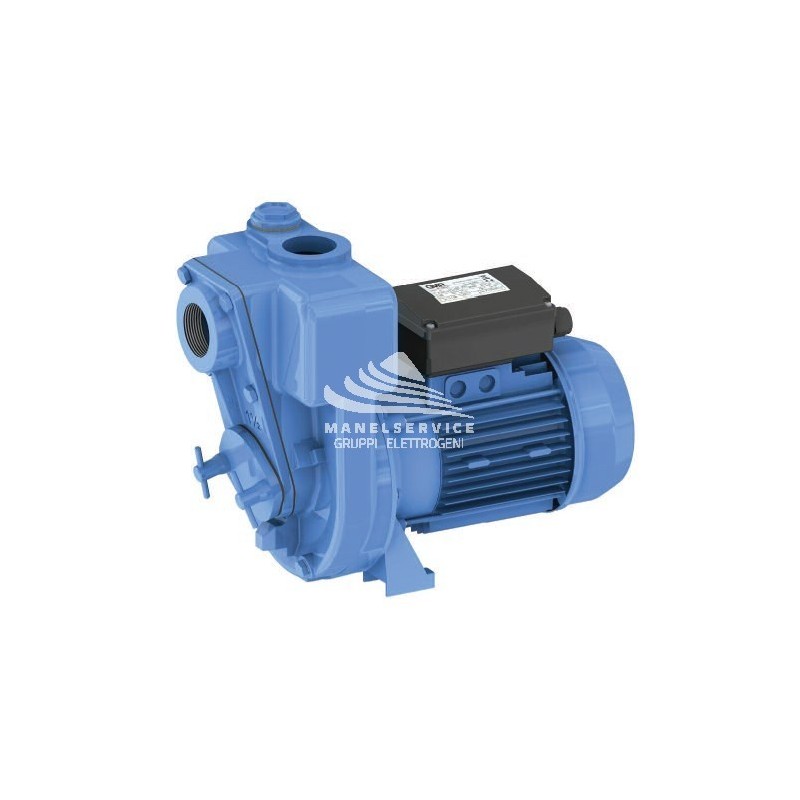

GMP B11-2KQ-A-ST T Three Phase - KW 0,75 KW T. 60 HZ 220 V. CAT. EAWR
B11-2KQ-A-ST T 60hz
New product
Phase Type: Three-phase
Pumping group power
Voltage: 220V/400V
Frequency: 60 Hz
Protection: IP54
Maximum suction height: 6 m.
Max. suction depth: 6 m.
Max. liquid temperature: +70°C
Max. solids diameter: 11 mm
Max. delivery: 16 m³/h
Max. manometric head: 1,5 bar
Ø inlet / outlet: 1½”G
Pump body: Cast iron
Valve body: Cast iron
Support: Aluminium
Impeller: Cast iron
Motor shaft: Stainless Steel AISI 316
Seal: Silicon Carbide/ Nbr/ Alumina
Length: 371.5 mm
Width: 190 mm
Height: 220 mm
Weight: 20 Kg
Technical features
- Phase
- Three phase
- Maximum power single phase (KW)
- 0.75
- Frequency (Hz)
- 60
- Voltage (V)
- 220 - 400
- Fluid type
- Waste waters
- Height of suction (m)
- 6
- Maximum output capacity (Lt/min)
- 250
- Diameter (Ø)
- 1" 1/2
- Power (W)
- 750
- Main body material
- Cast Iron
- Inlet diameter thread type (mm/inches)
- 40 mm / 1'' 1/2
- Outlet diameter thread type (mm/inches)
- 40 mm - 1" 1/2
- Length (mm)
- 371
- Width (mm)
- 190
- Height (mm)
- 285
- Dry weight (Kg)
- 20
- Product type
- Pompa
Details
GMP B11-2KQ-A-ST T Three Phase - KW 0,75 KW T. 60 HZ 220 V. CAT. EAWR
Self priming electric pump monobloc execution with multi-blades open impeller, suitable for pumping dirty water, with special impeller and inspection door.
A suitable non return valve is placed inside the pump body to avoid the empty after stopping.
Not-binding images and data
Technical Sheet / Manuals
Technical features
- Phase
- Three phase
- Maximum power single phase (KW)
- 0.75
- Frequency (Hz)
- 60
- Voltage (V)
- 220 - 400
- Fluid type
- Waste waters
- Height of suction (m)
- 6
- Maximum output capacity (Lt/min)
- 250
- Diameter (Ø)
- 1" 1/2
- Power (W)
- 750
- Main body material
- Cast Iron
- Inlet diameter thread type (mm/inches)
- 40 mm / 1'' 1/2
- Outlet diameter thread type (mm/inches)
- 40 mm - 1" 1/2
- Length (mm)
- 371
- Width (mm)
- 190
- Height (mm)
- 285
- Dry weight (Kg)
- 20
- Product type
- Pompa
Details
Technical Sheet / Manuals
