CGM C13000 SINGLE PHASE GENERATOR 12KVA

  • New
CGM C13000T
search
  • CGM C13000T
CGM
CGM C13000 Compound
New product

Phase Type: Single Phase
Maximum Power: 11.8 KW
Continuous Use Power: 10.8 KW
Maximum Power: 13. 2 KVA
Continuous use power: 12 KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Motor: BRIGGS & STRATTON 18HP
Emission standard: STAGE V
Motor RPM: 3000 RPM
Start: Manual
Voltage regulator system: Compound, optional AVR
Consumption: 4. 3 Lt/h at 75% of load
Tank capacity: 8.5 Lt
Autonomy: 2 h at 75% of load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 111 Kg

Technical features
Phase
Single phase
Maximum power single phase (KW)
11.8
Continuous power single phase (KW)
10.8
Maximum power single phase (KVA)
13.2
Continuous power single phase (KVA)
12
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE
Engine
Briggs&Stratton
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Manual
Engine capacity (cm³)
570
Number cylinders
2
Alternator
Linz, brushless
Poles
2
Fuel tank capacity (L)
8.5
Consumption (L/h)
4.3
Running time (h)
2
Length (mm)
910
Width (mm)
580
Height (mm)
640
Dry weight (Kg)
111
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
No
Voltage regulator
Compound / AVR (optional)
Engine manufacturer
Briggs&Stratton
Details

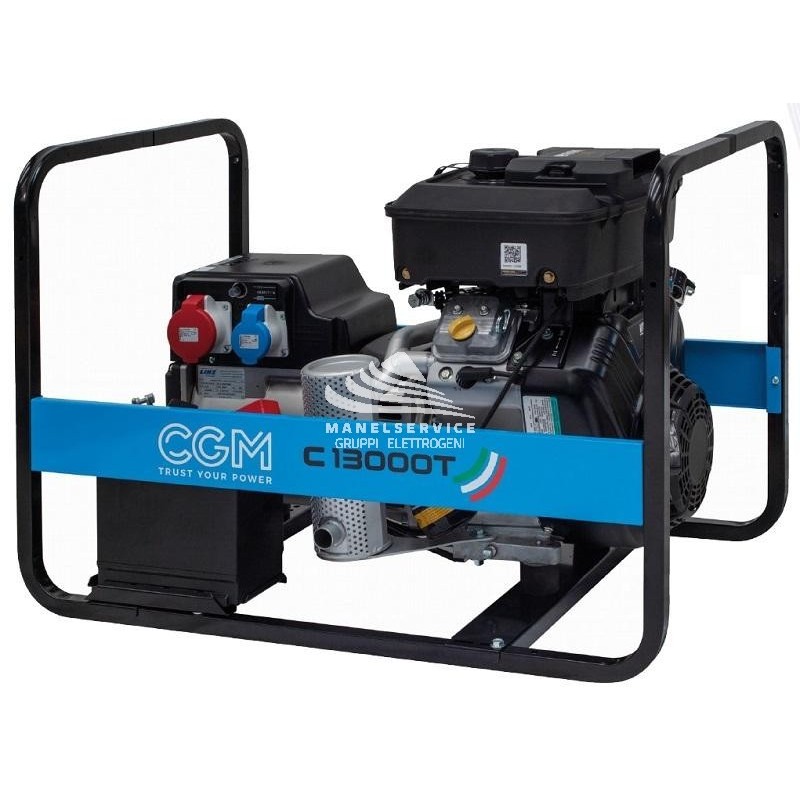

CGM C13000 SINGLE-PHASE GENERATOR 12 KVA

CGM C13000 single-phase generator of 12 KVA with Briggs & Stratton engine powered by STAGE V gasoline at 3000 rpm, compact and easy to use, mounted on a fixed base with rubber anti-vibration

The CGM C13000 generator consists of a Made in Italy alternator from Linz or NSM, self-excited with brushes and with optional compound or AVR voltage regulator. The CGM C13000 generator set is equipped with manual recoil start and low fuel consumption, in fact it consumes only 4.3 liters/hour at 75% load for an autonomy of up to 3 hours of operation.

The CGM C13000 generator is part of the CLASSIC series and is easily adaptable to a variety of uses such as homes, mobile facilities, camping, hobbies, construction sites, etc.. The C13000 generator set at 3000 rpm is suitable for emergency use only. It is not recommended to use it for more than 6 hours continuously and for more than 500 hours per year.

Technical Specifications CGM C13000:

Phase Type: Single Phase
Maximum Power: 11.8 KW
Continuous Use Power: 10.8 KW
Maximum Power: 13. 2 KVA
Continuous use power: 12 KVA
Fuel: Gasoline
Voltage: 230 V
Frequency: 50 Hz
Motor: BRIGGS & STRATTON 18HP
Emission standard: STAGE V
Motor RPM: 3000 RPM
Start: Manual
Voltage regulator system: Compound, optional AVR
Consumption: 4. 3 Lt/h at 75% of load
Tank capacity: 8.5 Lt
Autonomy: 2 h at 75% of load
Length: 910 mm
Width: 580 mm
Height: 640 mm
Weight: 111 Kg

Discover the full range reserved for ground generators of CGM or other top brands by browsing our catalog to find the one that best suits your needs.

Images and technical data are not binding and may be subject to review by the manufacturer.
