Single phase Maximum power (kVA): 1
Single phase Maximum power (kW): 0.8
Single phase Continuous power (kVA): 0.9
Single phase Continuous power (kW): 0.72
Fuel: Petrol
Voltage (Volts): 230 V
Rate (Hz): 50
DC Output (V/A): 12 / 8.3
Fuel carrying capacity (Lt): 2.7
Autonomy (h): from 2.5 to 8
Noise (dB (A) at 7m): 58
Length (mm): 490
Width (mm): 275
Height (mm): 415
Dry weight (Kg): 13
Engine: Axo
Engine model: X4144F
Cilindrata (cc): 53
Power (Hp) at 3600 rpm: 1.9
Rpm speed (rpm): 4500
Engine starting: Manual
Cooling: Air
Voltage Regulation: Inverter
Protection degree: IP23
Oil Alert: Yes
Economizer: Yes
ATS control unit: No
Battery: No

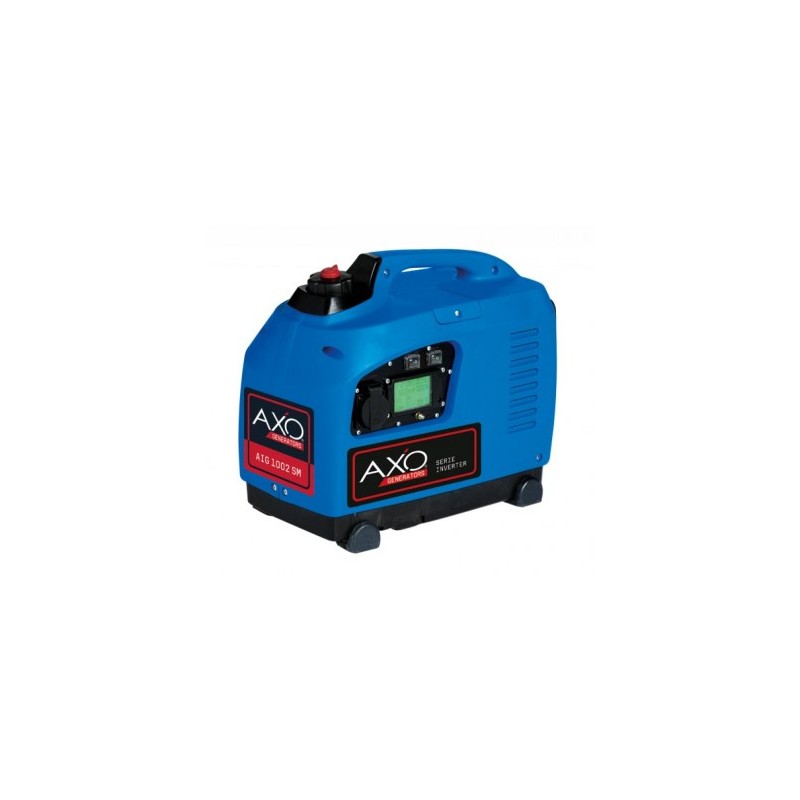

The petrol Axo AIG 1002SM inverter unit is equipped with a multi-phase alternator+ inverter board with stabilised
220V single-phase output. The THD (total harmonic distortion) value is less than 2%, the voltage accuracy is
between +1% and -1%.
The overload capacity for starting is insignificant.
Connection
220 V: N.2 SCHUKO sockets 16A
Batt. charger /reading instrument
N.2 screw type banana plugs one red (+) and one black (-) / multifunc. digital instrument
Protections
If battery charger is present: thermal protection device on 12 V DC.
Recommended use
Sophisticated electronic equipment, computers, appliances that are microprocessor-controlled, electronic
boards, electronic scales and likewise.
Safe use
Before use, check the electrical requirements of the user and the simultaneous start-up of the loads to
connect to a compliant socket board.
The pictures are for illustrative purposes only.
