0
Max power: 37 KW
Voltage: 400 / 690 V
Frequency: 50 Hz
Nominal current: 66.10 / 38.10 A
Max suction height: 6 m.
Max liquid temperature: +70°C
Max solids passage: 70 mm
Max flow rate: 8333 l/min
Pump speed: 1450 rpm
Max head: 2 bar
Suction Ø: DN 200 (PN 6)
Delivery Ø: DN 200 (PN 6)
Pump body: Spheroidal cast iron (GS 400/15)
Valve body: Cast iron (GJL-250 EN-1561)
Circuit board: Cast iron (GJL-250 EN-1561)
Motor support: Cast iron (GJL-250 EN-1561)
Shaft: Steel 42CrMo4
Mechanical seal: Silicon carbide / Viton
Protection class: IP 55
Width: 670 mm
Depth: 1900 mm
Height: 950 mm
Dry weight: 660 Kg

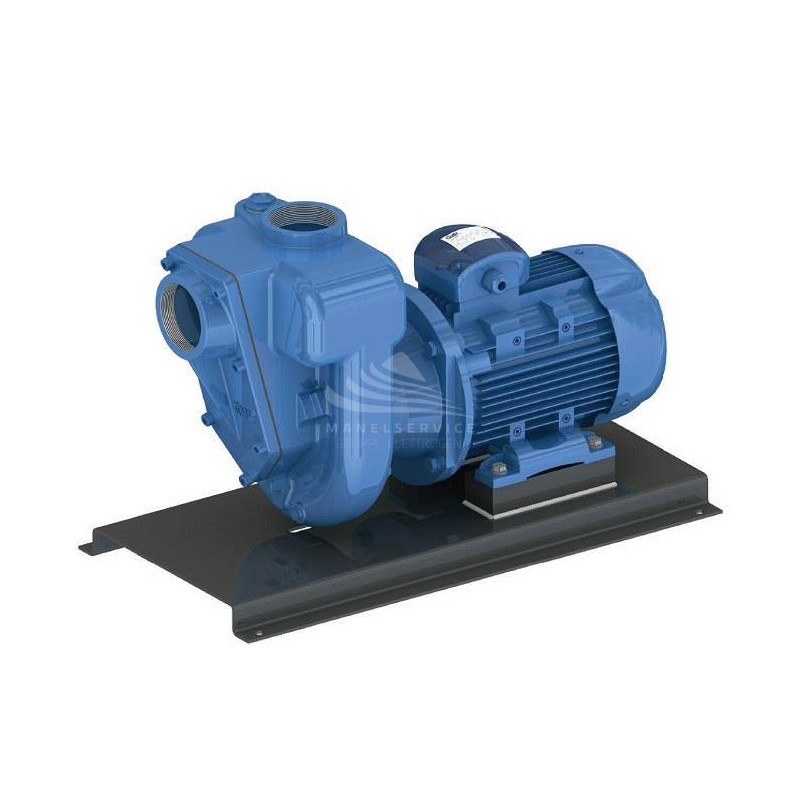

GMP B8XR-A is a self-priming electric pump with a cast iron body, capable of delivering a power of 37 kW for a maximum flow rate of 8333 l/min.
GMP B8XR-A is particularly suitable for the transfer of sewage with the presence of solids up to 70 mm. Suitable in the agricultural sector for flood irrigation, in the building industry and for rapid emergency draining.
The GMP B8XR-A electricpump is equipped with a central inspection door for easy cleaning of the impeller and wear disk. A clapet valve, prevents the pump from draining
GMP B8XR-A TECHNICAL SPECIFICATIONS
Max power: 37 KW
Voltage: 400 / 690 V
Frequency: 50 Hz
Nominal current: 66.10 / 38.10 A
Maximum suction height: 6 m.
Maximum liquid temperature: +70°C
Maximum solids passage: 70 mm
Maximum flow rate: 8333 l/min
Pump speed: 1450 rpm
Max head: 2 bar
Suction Ø: DN 200 (PN 6)
Delivery Ø: DN 200 (PN 6)
Pump body: Spheroidal cast iron (GS 400/15)
Valve body: Cast iron (GJL-250 EN-1561)
Circuit board: Cast iron (GJL-250 EN-1561)
Motor support: Cast iron (GJL-250 EN-1561)
Shaft: Steel 42CrMo4
Mechanical seal: Silicon carbide / Viton
Protection class: IP 55
Width: 670 mm
Depth: 1900 mm
Height: 950 mm
Dry weight: 660 Kg
Are you looking for an electricpump with different technical characteristics? Here you can find the section dedicated to GMP pumps or other specialized brands.
Images and technical data are not binding and may be subject to revision by the manufacturer.
