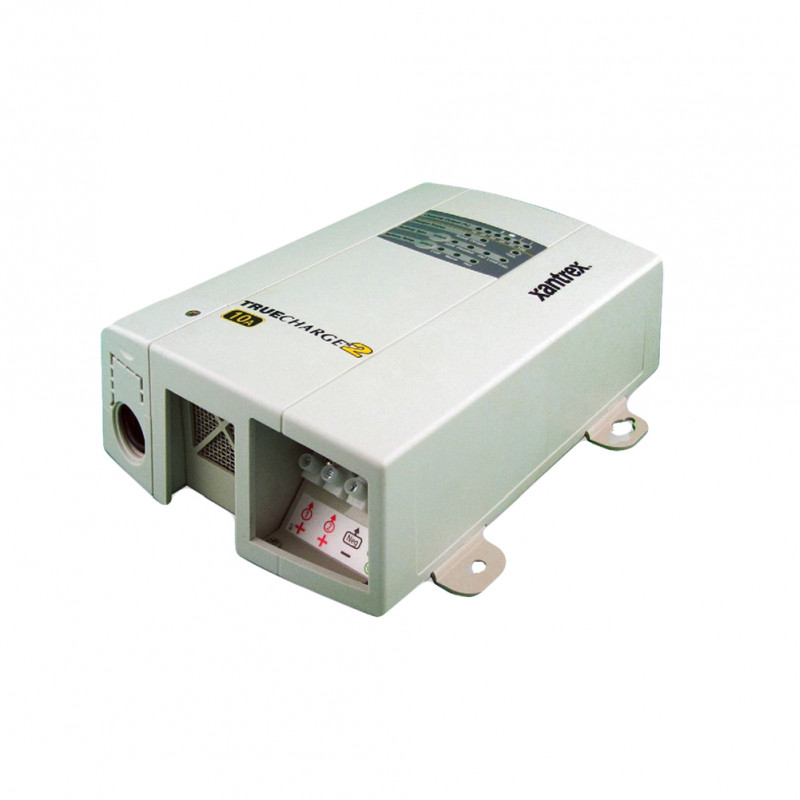

XANTREX TRUECHARGE2 10 VEHICLE BATTERY CHARGER 10A 12 Vac

  • New
xantrex truecharge2 10 vehicle battery charger 10a 12 vac
search
  • xantrex truecharge2 10 vehicle battery charger 10a 12 vac
804-1210
New product

Rated voltage: 13.4 - 13. 8 V
Rated current: 10 A
Number of battery outputs: 2
Battery capacity range: 20 Ah
Rated input voltage: 90-265 Vac 47-63 Hz
Input voltage range: 120 Vac / 230 Vac / 240 Vac
Power supply function (even without battery): no
Galvanic isolation: yes
Display readouts: LED indicators
Battery types: Gel, Flooded, AGM, Pb-Ca
Depth: 70 mm
Width: 138 mm
Height: 224 mm
Weight: 1. 5 kg

Technical features
Phase
Single phase
Frequency (Hz)
50
Protection degree
IP23
Charging voltage (V)
12
Length (mm)
70
Width (mm)
138
Height (mm)
224
Nominal output voltage (V)
12
Total charge current
20
Number of battery outlets
2
Battery capacity range (Ah)
20
Nominal input voltage (V)
120 Vac / 230 Vac / 240 Vac
Display/read-out
LED Indicators
DC voltage compensation
Yes
Power consumption (DC side) (mA)
Less than 1
Power factor control
Greater than 0.95
Temperature range (ambient temp.)
-25 °C at 80 °C, reduction greater than 45 °C -13 °F at 176 °F
Protections
Over temperature, over load, short circuit, high/low battery voltage
Charger Status Interface (alarm contact)
Yes
Weight (Kg)
1.5
Details

XANTREX TRUECHARGE2 10 VEHICLE CHARGER 10A 12 Vac

The charger XANTREX TRUECHARGE2 10 has a nominal voltage of 12 Vac, perfect for any vehicle, recommended for marine applications.

The XANTREX TRUECHARGE2 10 chargers are designed for heavy duty service in professional, semi-professional and recreational environments. Even under extreme conditions, the XANTREX TRUECHARGE2 10 will run smoothly at full power.

The XANTREX TRUECHARGE2 10 charger is designed for heavy-duty professional, semi-professional and recreational use.

The XANTREX TRUECHARGE2 10 charger uses power factor correction to provide a full charge in three cycles. As a result, the charger requires less energy input to operate at its maximum efficiency, freeing up more usable power for on-board electronics.

Multistage charging ensures optimal efficiency with minimum wear and tear by regulating the voltage and current supplied to the batteries in three automatic stages:

- Ground: Replaces 70-80% of the battery's capacity at the fastest possible rate
- Absorption: Replenishes the remaining 20-30% of the charge, bringing the battery to a full charge at a slow and safe rate
- Float: Voltage is reduced and kept constant to prevent damage and keep the batteries at a full charge

TECHNICAL CHARACTERISTICS XANTREX TRUECHARGE2 10 charger

Rated voltage: 13.4 - 13. 8 V
Rated current: 10 A
Number of outputs: 2
Capacity range: 20 Ah
Rated input voltage: 90-265 Vac 47-63 Hz
Input voltage range: 120 Vac / 230 Vac / 240 Vac
Power supply function: no
Galvanic isolation: yes
Display readouts: LED indicators
Battery types: Gel, Flooded, AGM, Pb-Ca
Depth: 70 mm
Width: 138 mm
Height: 224 mm
Weight: 1. 5 kg

Looking for a charger with different specifications? Here you can find the whole range of chargers of the specialized brands.

Images and technical data are not binding and may be subject to revision by the manufacturer.
