Phase type: Single-phase
Voltage: 230 V
Frequency: 50/60 Hz
Power: 600 W
Battery voltage: 12/24 V
Charging current: 40 A / 20 A
Charging capacity: 600 Ah 15h
Charging positions: ∞
Length: 315 mm
Width: 115 mm
Height: 225 mm
Weight: 3.7 Kg

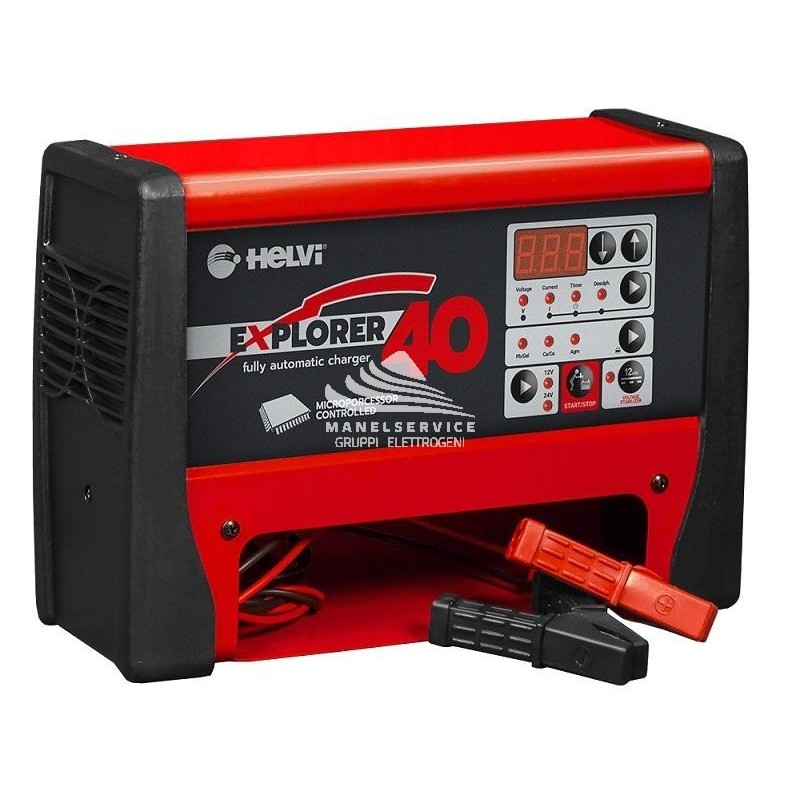

HELVI EXPLORER40 is a new generation professional battery charger with inverter technology equipped with charge current selector, digital ammeter and voltmeter, thermostatic protection against overcurrent, protection against short circuits and polarity reversal, timer. HELVI EXPLORER40 is also equipped with battery charge voltage tester and alternator tester. The charging function of the HELVI EXPLORER40 battery charger is performed without output voltage peaks that can damage the electronic boards on board vehicles. Thanks to a dedicated software the HELVI EXPLORER40 is ideal for charging AGM, GEL, calcium and lead batteries mounted on modern vehicles.
The charging modes of the HELVI EXPLORER40 battery charger are:
1) Manual: choice of battery voltage, type of battery to be charged, maximum current and maximum charging time, desulphation procedure;
2) Automatic charging from pre-set parameters: the user has the possibility to save an ideal charging configuration to be recalled later in automatic mode:
3) Automatic: the charger will charge fully automatically after pressing the START key.
The HELVI EXPLORER40 battery charger is also equipped with a 12 V voltage stabilisation function and a maximum current of 10 A.
This function allows the vehicle's electronic boards to be powered during the following operations:
A) changing the battery.
B) when the engine is off, keep the on-board electronics powered (e.g. for vehicles displayed in showrooms).
The HELVI EXPLORER40 battery charger is perfect for charging batteries with a 12 V or 24 V voltage and a current of 40/20 A.
The HELVI EXPLORER40 battery charger can charge batteries for various types of vehicles such as motorbikes, cars, vans, trucks and boats. The main applications of the HELVI EXPLORER40 battery charger are in the automotive, domestic, custom, construction and agricultural sectors.
HELVI EXPLORER40 is a single-phase battery charger with 230 V power supply and 50/60 Hz frequency. The HELVI EXPLORER40 battery charger has a nominal power of 600 W.
The nominal charging capacity of the HELVI EXPLORER40 battery charger is 600 Ah.
HELVI EXPLORER40 is very compact and extremely light thanks to its weight of about 3 Kg.
Technical characteristics of the HELVI DISCOVERY60 battery charger:
Phase type: Single-phase
Voltage: 230 V
Frequency: 50/60 Hz
Power: 600 W
Battery voltage: 12/24 V
Charging current: 40 A / 20 A
Charging capacity: 600 Ah 15h
Charging positions: ∞
Length: 315 mm
Width: 115 mm
Height: 225 mm
Weight: 3.7 Kg
If you are looking for another product similar to the HELVI DISCOVERY60 portable charger, then we recommend that you take a look at the entire range dedicated to battery chargers.
Images and technical data are not binding.
