ALTERNATORS

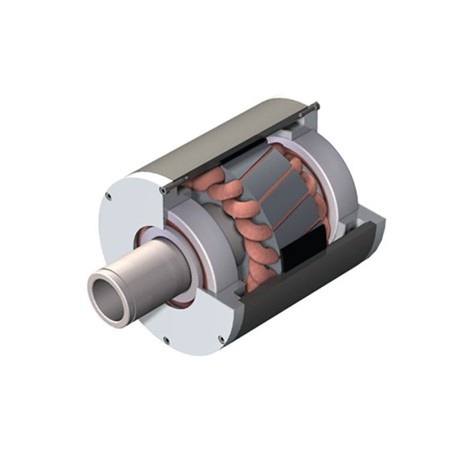

Power: 20 KW Voltage: 400 V Nominal speed: 150 rpm Maximum speed: 4200 rpm Number of poles: 34 Magnets: NeFeB Protection class: IP 55 Bearings: SKF low friction Efficiency: > 92.5% Weight: 410 Kg Width: 470 mm Length: 760 mm Height: 470 mm Bearing Size: 6024 2z Maximum Axial Load: >2550

Phase: Three Phase Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 8.1 Constant Speed Alternator AVR Brushless Protection: IP22 (Optional IP23) Weight (Kg): 101

Phase: Three Phase Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Single Phase Output (kVA): ---- Three Phase Output (kVA): 11 Constant Speed Alternator AVR Brushless Protection: IP22 (Optional IP23) Weight (Kg): 108

Phase Type: Threephase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Singlephase power (kVA): ---- Threephase power (kVA): 13. 5 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (on request IP 23) Weight (Kg): 110

Phase type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 16 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (on request IP 23) Weight (Kg): 116

Phase Type: Three Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 22.5 Alternator type: Constant speed Voltage regulator: AVR Brushless Degree of protection: IP22 (on request IP 23) Weight (Kg): 141

Phase Type: Three Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 27.5 Alternator type: Constant speed Voltage regulator: AVR Brushless Protection degree: IP22 (on request IP 23) Weight (Kg): 164

Phase Type: Three Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 31.3 Alternator type: Constant speed Voltage regulator: AVR Brushless Protection degree: IP22 (on request IP 23) Weight (Kg): 172

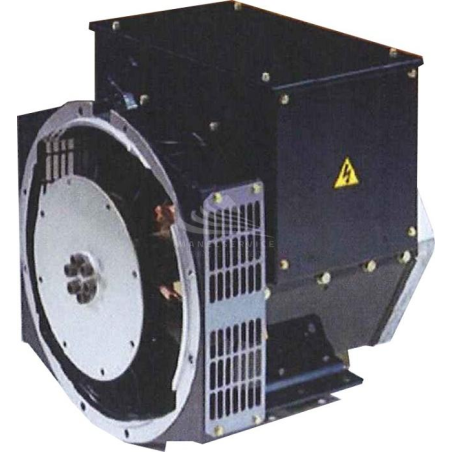

Phase Type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 40 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 240

Phase Type: Three Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 40 Alternator type: constant speed Voltage regulator: AVR Brushless Protection degree: IP22 (on request IP 23) Weight (Kg): 240

Phase Type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 42. 5 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 on request) Weight (Kg): 255

Phase Type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Single-phase power (kVA): ---- Three-phase power (kVA): 50 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (on request IP 23) Weight (Kg): 268

Phase Type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Three-phase Power: 48 KW Three-phase Power (kVA): 60 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 290

Phase: Three Phase Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Three Phase Output (kW): 58 Three Phase Output (kVA): 72.5 Constant Speed Alternator AVR Brushless Protection: IP22 (Optional IP23) Weight (Kg): 316

Phase Type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Three-phase Power: 68 KW Three-phase Power (kVA): 85 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 370

Phase type: Three-phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Three-phase power (kW): 80 Three-phase power (kVA): 100 Alternator type: Constant speed Voltage regulator: AVR Brushless Protection degree: IP22 (on request IP 23) Weight (Kg): 435

Phase: Three Phase Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Three Phase Output (kW): 100 Three Phase Output (kVA): 125 Constant Speed Alternator AVR Brushless Protection: IP22 (Optional IP23) Weight (Kg): 460

Phase Type: Three-Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions Per Minute (rpm): 1500 Three-Phase Power (kW): 112 Three-Phase Power (kVA): 140 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 510

Phase: Three Phase Voltage (V): 400 Frequency (Hz): 50 Rpm Speed: 1500 Three Phase Output (kW): 128 Three Phase Output (kVA): 160 Constant Speed Alternator AVR Brushless Protection: IP22 (Optional IP23) Weight (Kg): 560

Phase Type: ThreePhase Voltage (V): 400 Frequency (Hz): 50 Revolutions Per Minute (rpm): 1500 ThreePhase Power (kW): 144 ThreePhase Power (kVA): 180 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 580

Phase Type: ThreePhase Voltage (V): 400 Frequency (Hz): 50 Revolutions Per Minute (rpm): 1500 ThreePhase Power (kW): 160 ThreePhase Power (kVA): 200 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (on request IP 23) Weight (Kg): 650

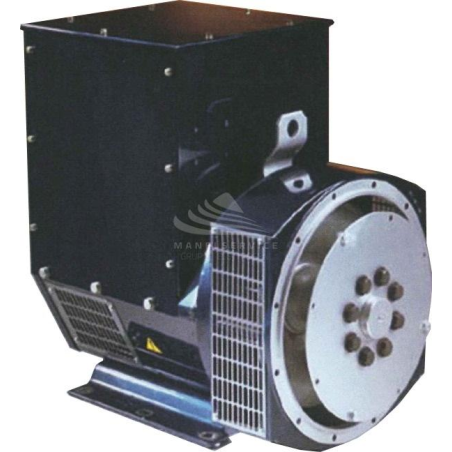

Phase Type: ThreePhase Voltage (V): 400 Frequency (Hz): 50 Revolutions Per Minute (rpm): 1500 ThreePhase Power (kW): 180 ThreePhase Power (kVA): 225 Type of alternator: constant speed Voltage regulator: AVR Brushless Protection class: IP22 (IP 23 upon request) Weight (Kg): 730

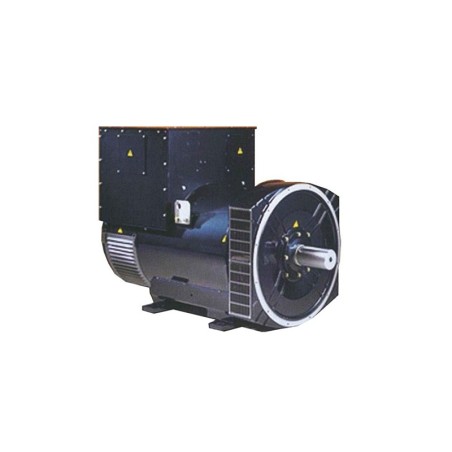

Phase Type: Three Phase Voltage (V): 400 Frequency (Hz): 50 Revolutions per minute (rpm): 1500 Three-phase power (kW): 200 Three-phase power (kVA): 250 Alternator type: Constant speed Voltage regulator: AVR Brushless Protection degree: IP22 (on request IP 23) Weight (Kg): 730

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 200KW Maximum power (50 Hz): 250KVA Maximum power (60 Hz): 240KW Maximum power (60 Hz): 300KVA RPM: 1500 rpm Efficiency %: 92.4 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1172 mm Length: 776...

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 240KW Maximum power (50Hz): 300KVA Maximum power (60 Hz): 288KW Maximum power (60 Hz): 360KVA RPM: 1500 rpm Efficiency %: 92.7 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1172 mm Length: 776...

Phase Type: Three Phase Power Supply Voltage: 400 - 440 V Frequency: 50 - 60 Hz Maximum Power (50 Hz): 280KW Maximum Power (50 Hz): 350KVA Maximum Power (60 Hz): 320KW Maximum Power (60 Hz): 400KVA Revolutions Per Minute: 1500 rpm Efficiency %: 93. 3 Brush type: Brushless Voltage regulator: AVR Protection class: IP22 Width: 1172...

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 320KW Maximum power (50 Hz): 400KVA Maximum power (60 Hz): 364KW Maximum power (60 Hz): 455KVA RPM: 1500 rpm Efficiency %: 93.0 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1172 mm Length: 776...

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50 - 60 Hz Maximum power (50 Hz): 360KW Maximum power (50 Hz): 450KVA Maximum power (60 Hz): 428KW Maximum power (60 Hz): 535KVA RPM: 1500 rpm Efficiency %: 94.0 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1337 mm Length:...

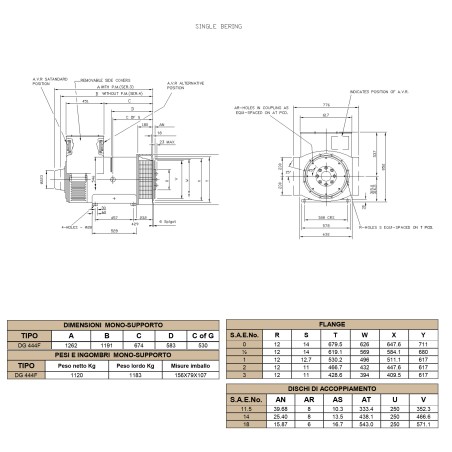

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 400KW Maximum power (50 Hz): 500KVA Maximum power (60 Hz): 428KW Maximum power (60 Hz): 535KVA RPM: 1500 rpm Efficiency %: 94.0 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1337 mm Length: 862...

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power: 450KW Maximum power: 563KVA RPM: 1500 rpm Efficiency %: 94.4 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1337 mm Length: 862 mm Height: 971 mm Dry weight: 1358 Kg

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power: 500KW Maximum power: 625KVA RPM: 1500 rpm Efficiency %: 95.0 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1337 mm Length: 862 mm Height: 971 mm Dry weight: 1498 Kg

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power: 536KW Maximum power: 670KVA RPM: 1500 rpm Efficiency %: 94.7 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1412 mm Length: 862 mm Height: 971 mm Dry weight: 1663 Kg

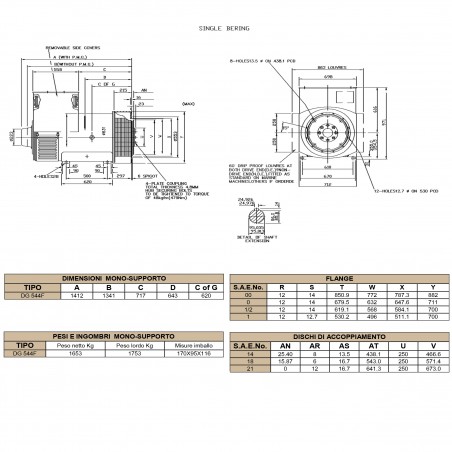

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 600KW Maximum power (50 Hz): 750KVA Maximum power (60 Hz): 684KW Maximum power (60 Hz): 855KVA RPM: 1500 rpm Efficiency %: 93.3 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1578 mm Length: 893...

Phase type: Three-phase Power supply voltage: 400 - 440 V Frequency: 50 - 60 Hz Maximum power (50 Hz): 640KW Maximum power (50 Hz): 800KVA Maximum power (60 Hz): 732KW Maximum power (60 Hz): 916KVA RPM: 1500 rpm Efficiency %: 93.7 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1578 mm Length:...

Phase Type: Three Phase Power Supply Voltage: 400 - 440 V Frequency: 50 - 60 Hz Maximum Power: 728KW Maximum Power: 910KVA Revolutions Per Minute: 1500 rpm Efficiency %: 93. 6 Brush type: Brushless Voltage regulator: AVR Protection class: IP22 Width: 1578 mm Length: 893 mm Height: 1148 mm Dry weight: 2090 Kg

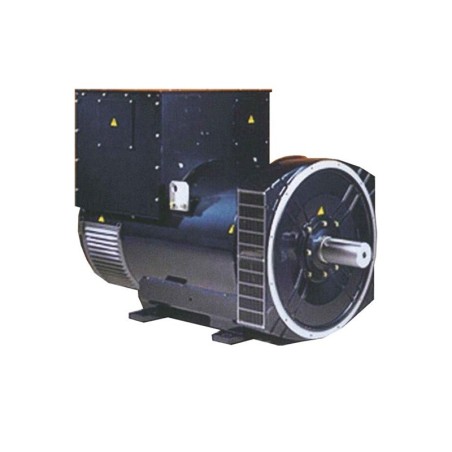

Phase type: Three phase Power supply voltage: 400 - 440 V Frequency: 50-60Hz Maximum power (50 Hz): 800KW Maximum power (50 Hz): 1000KVA Maximum power (60 Hz): 916KW Maximum power (60 Hz): 1145KVA RPM: 1500 rpm Efficiency %: 94.5 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1578 mm Length:...

Phase type: Three-phase Power supply: 400 - 440 V Frequency: 50 - 60 Hz Maximum power (50 Hz): 904KW Maximum power (50 Hz): 1130KVA Maximum power (60 Hz): 1019KW Maximum power (60 Hz): 1274KVA RPM: 1500 rpm Efficiency %: 94.7 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1578 mm Length: 893...

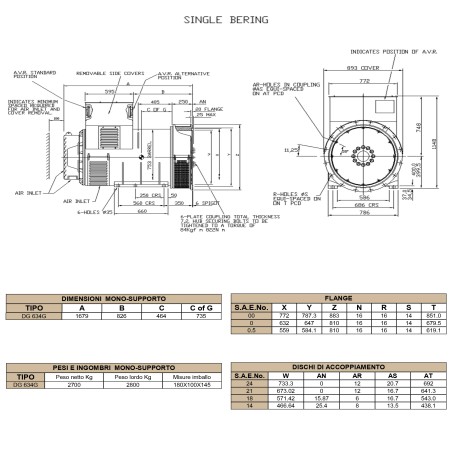

Phase type: Three-phase Supply voltage: 400 - 440 V Frequency: 50 - 60 Hz Maximum power (50 Hz): 1000KW Maximum power (50 Hz): 1250KVA Maximum power (60 Hz): 1109KW Maximum power (60 Hz): 1336KVA RPM: 1500 rpm Efficiency %: 94.9 Brushes Type: Brushless Voltage regulator: AVR Degree of protection: IP22 Width: 1578 mm Length: 893...

Rated Power at 50Hz (kVA): 1,7 Rated Power Factor: 1 Nominal Temperature (°C)/ 40 Control System: self-excited Execution| brushless Regulation Type: capacitor Insulation Class: H Protection: IP21 Maximum Over speed (rpm): 4500 Overload 110% of rated power for one hour in a cycle of 6 hours Air Flow Requirement (m3/min) 3,85 at 50Hz<br...

Rated Power at 60Hz (kVA): 2 Rated Power Factor: 1 Nominal Temperature (°C)/ 40 Control System: self-excited Execution| brushless Regulation Type: capacitor Insulation Class: H Protection: IP21 Maximum Over speed (rpm): 4500 Overload 110% of rated power for one hour in a cycle of 6 hours Air Flow Requirement (m3/min) 4,85 at 60Hz R.F.I....
