Welding current: 150A / 20V ÷ 130A / 25.2V Adjusting scope: continuous 20A / 20.8V to 150A / 20V Duty: 130A / 25.2V @ 60% ÷ 100A / 24V @ 100% Trigger voltage (no load): 67 VDC Welding Type: Coated Electrode Welding (SMAW) Engine Model: Honda GX 200 Fuel: Gasoline Starter: Manual Stappo Engine RPM: 4000 rpm Cylinders / Displacement: 1 /196 cm³<br...

THIS PRODUCT IS OUT OF PRODUCTION

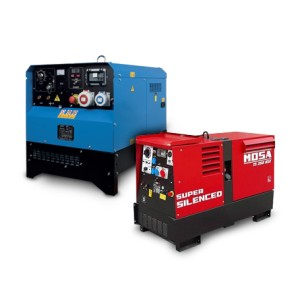

Maximum singlephase power: 10 KVA Continuous use single-phase power: 5 KVA Maximum three-phase power: 15 KVA Continuous use threephase power: 13.5 KVA Fuel: Diesel Voltage: 230 V / 400 V Frequency: 50 Hz Motor: Kubota D1105-E Emissions Standard: STAGE V Starting: Electric Trigger voltage: 70 V Maximum electrode diameter: 6 mm<br...

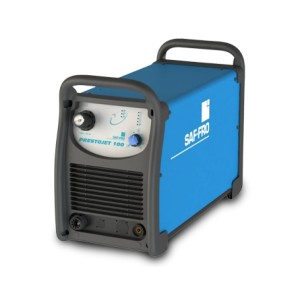

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Power: 2500/3000 VA Type of cut: Plasma cutter Open-circuit voltage: 310 V Current regulation: 10 - 25 A / 10 - 30 A Duty cycle at 40°: 25 A at 40% - 12 A at 100% / 30 A at 30% - 12 A at 100% Maximum current: 25 A / 30 A Separation cut: 8 mm / 10 mm Air pressure: 4.5 bar Air...

Phase type: Three-phase Frequency: 50/60 Hz Voltage: 230 V / 400 V Power: 14.5 KVA @ 60% Welding Type: MIG No-load voltage: 18 ÷ 45 V Current regulation: 30 - 400 A Maximum current: 400 A Amp. 60974-1: 40% 400 A 60% 326 A 100% 255 A Welding positions: 28 Steel wire diameter: 0.6 - 1.6 mm Stainless steel wire diameter: 0.8 - 1.2 mm<br...

Phase Type: SinglePhase/ThreePhase Maximum ThreePhase Power: 8 KVA / 6.4 KW Maximum SinglePhase Power: 5 KVA / 5 KW Voltage: 48 V / 110 V / 230 V / 400 V Frequency: 50 Hz Fuel: Diesel Motor: KOHLER KDW702 Emission Standard: Stage V Engine RPM: 3000 RPM Adjustment Range: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (Tig)<br...

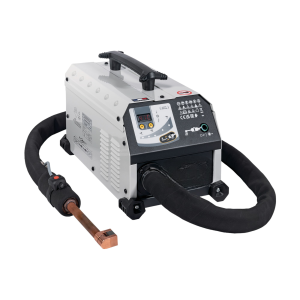

Supplied with 1 half-moon inductor 20°C  Frequency: 50 Hz Coolant tank capacity 37LG: 1.5 l 39LG: 7 l 50LG: 7 l Power: 3700 W Heating frequency: 20-50 kHz Power supply: 230 V 1~ Current consumption: 16 A Dimensions: 70 x 53 x 37 cm Weight: 50 kg

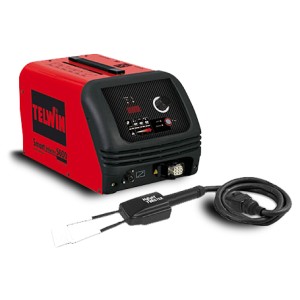

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Power: 2300 W Maximum power: 13000 W Delayed fuse: 25 A Spot current: 6300 A Open-circuit voltage: 2.5 V Maximum electrode force (at 6 bar): 2 + 2 / Ø 6 + 6 mm Points / Thickness: 300 / 1 + 1 N°/mm Length: 100 mm Width: 440 mm Height: 185 mm Weight: 11.1 Kg

Phase Type: SinglePhase/ThreePhase Maximum ThreePhase Power: 8 KVA / 6.4 KW Maximum SinglePhase Power: 5 KVA / 5 KW Voltage: 48 V / 110 V / 230 V / 400 V Frequency: 50 Hz Fuel: Diesel Motor: KOHLER KDW702 Emission Standard: Stage V Engine RPM: 3000 RPM Adjustment Range: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (Tig)<br...

Product supplied with half-moon inductor 20 C Frequency: 50 Hz Coolant tank capacity 37LG: 1.5 l 39LG: 7 l 50LG: 7 l Power: 3700 W Heating frequency: 20-30 kHz Power supply: 230 V 1~ Current consumption: 16 A Dimensions: 28.5 x 45 x 25 cm Weight: 15 kg

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Power: 3300 VA Type of cut: Plasma cutter Open-circuit voltage: 350 V Current regulation: 10 - 40 A Duty cycle at 40°: 20 A at 40% - 25 A at 60% - 20 A at 100% Maximum current: 40 A Separation cut: 15 mm Quality cut 25 cm/min: 13 mm Air pressure: 4 - 5.5 bar Air capacity:...

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Power: 1200 W Maximum power: 6000 W Delayed fuse: 16 A Spot current: 3800 A Open-circuit voltage: 2 V Maximum electrode force (at 6 bar): 1 + 1 / Ø 6 + 6 mm Points / Thickness: 300 / 1 + 1 N°/mm Length: 100 mm Width: 440 mm Height: 185 mm Weight: 10.6 Kg

Phase: Single phase Frequency: 50/60 Hz Voltage: 200 - 240 V Heating frequency: 35 - 100 KHz Max heating power: 2.3 KW Length: 390 mm Width: 260 mm Height: 230 mm Weight: 7.3 Kg

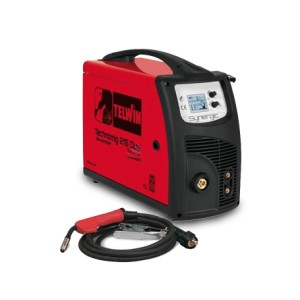

Power supply: 230V 50/60Hz MIG/MAG 40°C : 25 ÷ 180 A - 180 A @ 20% - 75 A @ 100% MMA 40°C: 20 ÷ 180 A - 180 A @ 20% - 75 A @ 100% TIG 40°C: 5 ÷ 180 A - 180 A @ 20% - 75 A @ 100%. Iron: Ø 0,6 ÷ 1,0 mm Stainless steel: Ø 0,8 ÷ 1,0 mm Flux-cored wire: Ø 0,9 mm Aluminium: Ø 0,8 ÷ 1,0 mm Electrode diameter: Ø 1,6 ÷ 4,0 mm Electrode type: 6013 - 7018 -...

Welding type: Electrode / Tig Maximum threephase power: 6.0 KVA Maximum threephase power: 4.8 KW Maximum singlephase power: 2.0 KVA Maximum singlephase power: 1.6 KW Fuel: Diesel Voltage: 230/400 V Frequency: 50 Hz Engine: Yanmar L100V Number of cylinders: 1 Displacement: 435 cm3 Mechanical power: 8.8 HP Starter: Electric Tank...

Product supplied with half-moon inductor: 20°C Frequency: 50 Hz Coolant tank capacity 37LG: 1.5 l 39LG: 7 l 50LG: 7 l Power: 5200 W Heating frequency: 20-50 kHz Power supply: 230 V 1~ Current consumption: 16 A Dimensions: 70 x 53 x 37 cm Weight: 50 kg

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Power: 2800 VA Type of cut: Plasma cutter Open-circuit voltage: 310 V Current regulation: 10 - 30 A Duty cycle at 40°: 30 A at 30% - 12 A at 100% Maximum current: 30 A Separation cut: 10 mm Air pressure: 4 - 5 bar Air capacity: 100 Lt/min Insulation: H Degree of...

Phase: Single phase Frequency: 50/60 Hz Voltage: 230 V No-load voltage: 400 V Regulation current: 7 - 40 A Current max: 35 A Max cutting thickness: 10 mm Length: 550 mm Width: 170 mm Height: 340 mm Weight: 16.45 Kg

Phase type: Single phase Frequency: 50/60 Hz Voltage: 230 V Power 60%: 2.5 KW Welding type: MMA No-load voltage: 53 V Current regulation: 10 - 120 A Maximum current: 120 A Working cycle at 40°C: 120 A @ 20% - 70 A @ 50% - 55 A @ 100%. Duty cycle at 20°C: 120 A @ 30% - 85 A @ 60% - 65 A @ 100% Electrode diameter: 1,6 ÷ 3,2 mm Electrode...

Frequency: 50 Hz Coolant tank capacity 110LG: 7 l Power: 11 kW Heating frequency: 25-50 kHz X @ 35°C: min 100% Power supply: 400 V 3~ Current consumption: 16 A Dimensions: 59 x 88 x 59 cm Weight: 80 kg

Phase: Single phase Frequency: 50/60 Hz Voltage: 230 V No-load voltage: 405 V Regulation current: 7 - 40 A Current max: 35 A Max cutting thickness: 12 mm Compressed air pressure: 4 - 5 bar Length: 540 mm Width: 150 mm Height: 270 mm Weight: 7.6 Kg

OUT OF PRODUCTION Phase: Single phase Frequency: 50/60 Hz Voltage: 230 V Capacity: 19500 µF Spot time: 1 - 3 ms Number spottable studs: 7 studs/min Spottable stud diameter: 3 - 4 mm Length: 450 mm Width: 150 mm Height: 270 mm Weight: 11.7 Kg

Phase type: Single phase Frequency: 50/60 Hz Voltage: 230 V Power 60%: 2.5 KW Welding type: MMA No load voltage: 70 V Current setting: 10 - 160 A Maximum current: 120 A Working cycle at 40°C: 160 A @ 15% - 80 A @ 60% - 65 A @ 100%. Working cycle at 20°C: 160 A @ 25% - 100 A @ 60% - 80 A @ 100% Electrode diameter: 1,6 ÷ 40 mm Electrode...

Phase type: Single-phase Frequency: 50/60 Hz Voltage: 230 V Welding Type: MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift No-load voltage: 96 V Current regulation: 20 - 220 A Maximum current: 200 A Electrode diameter: 1.6 - 4 mm Welding wire diameter steel: 0.6 - 1 mm Stainless steel welding wire diameter: 0.8 - 1 mm Aluminium welding wire diameter: 0.8...

Phase Type: Single Phase / Three Phase Maximum single-phase 50Hz power: 5.5KVA / 4.4KW Continuous Power Single Phase 50HZ: 2.7KVA / 2.1KW Maximum single-phase 60Hz power: 6KVA / 4.8KW Continuous Power Single-phase 60HZ: 3KVA / 2.4KW Maximum Three-phase 50/60Hz Power: 16KVA / 12.8KW Voltage: 115 / 230 / 240 / 400V Frequency: 50/60 Hz Motor: Perkins...

DISCONTINUED PRODUCT Product requires the use of a special welding coolant, not supplied. Frequency: 60 Hz Coolant tank capacity 110LG: 7 l Power: 11 kW Heating frequency: 25-50 kHz X @ 35°C: min 100% Power supply: 208V-240V 3~ Current consumption: 35 A Dimensions: 59 x 88 x 59 cm Weight: 86 kg

Phase Type: SinglePhase/ThreePhase Maximum ThreePhase Power: 8 KVA / 6.4 KW Maximum SinglePhase Power: 5 KVA / 5 KW Voltage: 48 V / 110 V / 230 V / 400 V Frequency: 50 Hz Fuel: Diesel Motor: KOHLER KDW702 Emission Standard: Stage V Engine RPM: 3000 RPM Adjustment Range: 20A / 20.8V ÷ 270A / 21V (Stick) | 20A / 10.8V ÷ 270A / 20.8V (Tig)<br...

Supplied with the following accessories MIG welding torch length 3.0 m Ground cable. Length 2.0 m. Cable section 16mm2 Flux-cored wire reel diameter 0.9 mm - 0.5 kg Brush hammer. Power supply: 230V 50/60Hz Adjustment range: MIG - 25 -150 A - MMA - 25 - 150 A - TIG - 20 - 150 A MIG/MAG - Duty cycle 40°C: 150 A @ 25% - 95 A @ 60% - 75 A @...

Phase: Single phase Frequency: 50/60 Hz Voltage: 200 - 240 V Heating frequency: 35 - 100 KHz Max heating power: 2.3 KW Length: 390 mm Width: 260 mm Height: 230 mm Weight: 13.6 Kg

Maximum singlephase power: 10 KVA Continuous use single-phase power: 5 KVA Maximum three-phase power: 15 KVA Continuous use threephase power: 13.5 KVA Fuel: Diesel Voltage: 230 V / 400 V Frequency: 50 Hz Motor: Kubota D1105-E Emissions Standard: STAGE 0 Starting: Electric Trigger voltage: 70 V Maximum electrode diameter: 6 mm<br...

Phase type: Single phase Frequency: 50/60 Hz Voltage: 230 V Power 60%: 3.2 KW Welding type: MMA No-load voltage: 70 V Current regulation: 10 - 200 A Maximum current: 120 A Working cycle at 40°C: 200 A @ 15% - 100 A @ 60% - 80 A @ 100%. Working cycle at 20°C: 200 A @ 25% - 130 A @ 60% - 100 A @ 100% Electrode diameter: 1,6 ÷ 5.0 mm<br...

Phase Type: Single-Phase / Three-Phase Maximum Three-Phase Power: 14 KVA / 11.2 KW Maximum Single-Phase Power: 8 KVA / 8KW Voltage: 48 V / 230 V / 400 V Frequency: 50 Hz Fuel: Diesel Motor: KOHLER KDW 1003 Emission Standard: Stage V Motor RPM: 3000 RPM Setting range: 20 A ÷ 380 A 14 ÷ 45 V (MIG-WIRE ANIMATED) Service: 325 A - 60% | 300 A -...

THIS PRODUCT IS OUT OF PRODUCTION

Power supply: (1ph) 230V 50/60Hz Working range: TIG - 5 ÷ 200 A - MMA - 5 ÷ 170 A TIG - Duty cycle 40°C: 200 A @ 25% - 130 A @ 60% - 100 A @ 100%. MMA - Duty cycle 40°C: 170 A @ 25% - 110 A @ 60% - 85 A @ 100%. Electrode diameter: Ø 1,6 ÷ 4,0 mm Electrode type: 6013 - 7018 Insulation class: H Degree of protection: IP23S Length: 400 mm Width: 140...

Power supply: 230V 50/60Hz Adjustment Range: 10-150A Working cycle at 40°C: 150A 20% 90A 60% 70A 100% Duty cycle at 20%C: 150A 30% 105A 60% 80A 100% Copper plated steel: Ø 0,8mm Flux-cored wire (NO GAS): Ø 0,9mm Insulation class: H Degree of protection: IP22S Length: 370 mm Width: 170 mm Height: 260 mm Weight: 8 Kg

Phase: Single phase Frequency: 50/60 Hz Voltage: 200 - 240 V Heating frequency: 35 - 100 KHz Max heating power: 2.3 KW Length: 390 mm Width: 260 mm Height: 230 mm Weight: 10.4 Kg

Phase type: Single-phase / Three-phase Maximum three-phase power: 8 KVA / 6.4 KW Maximum single-phase power: 2.7 KVA / 2.16 KW Frequency: 50 Hz Motor: Yanmar 3TNM72 Fuel: Diesel Emissions standard: Not Emissions Engine speed: 3000 rpm Starter: Electric Regulation range: 30A - 300A DC welding: Electronic Current Regulation Intermittence...

THIS PRODUCT IS OUT OF PRODUCTION Phase type: Single-phase Voltage: 230 V Frequency: 50 / 60 Hz Current setting range: 20 - 200 A Max current: 200 A - 35% Current at 60%: 140 A Max. open circuit voltage: 60 V Maximum current consumption: 36 A Current consumption at 60%: 24 A Max. power consumption: 6 KW Power...

Phase: Single phase Frequency: 50/60 Hz Voltage: 115 / 230 V Capacity: 66000 µF Spot time: 1 - 3 ms Number spottable studs: 20 studs/min Spottable stud diameter: 3 - 8 mm Length: 430 mm Width: 170 mm Height: 290 mm Weight: 15.5 Kg
