      DG544F SAE00 disk joint 14

      Phase type: Three phase
      Power supply voltage: 400 - 440 V
      Frequency: 50-60Hz
      Maximum power: 536KW
      Maximum power: 670KVA
      RPM: 1500 rpm
      Efficiency %: 94.7
      Brushes Type: Brushless
      Voltage regulator: AVR
      Degree of protection: IP22
      Width: 1412 mm
      Length: 862 mm
      Height: 971 mm
      Dry weight: 1663 Kg

      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      DG544F SAE00 disk joint 14

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      536
      Maximum power three phase (KVA)
      670
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Efficiency (%)
      94.7
      Protection degree
      IP22
      Length (mm)
      1412
      Width (mm)
      862
      Height (mm)
      971
      Dry weight (Kg)
      1663
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      DINGOL DG544F THREE-PHASE 600KVA AVR

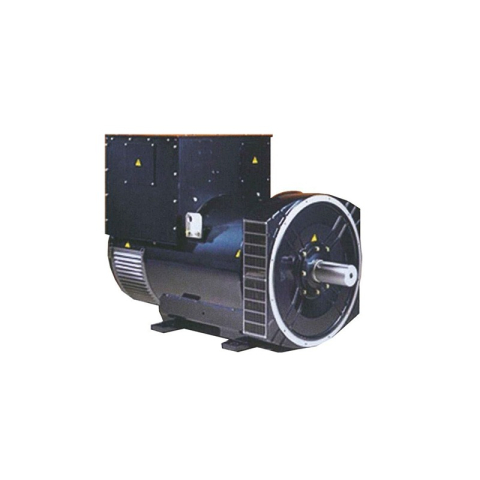

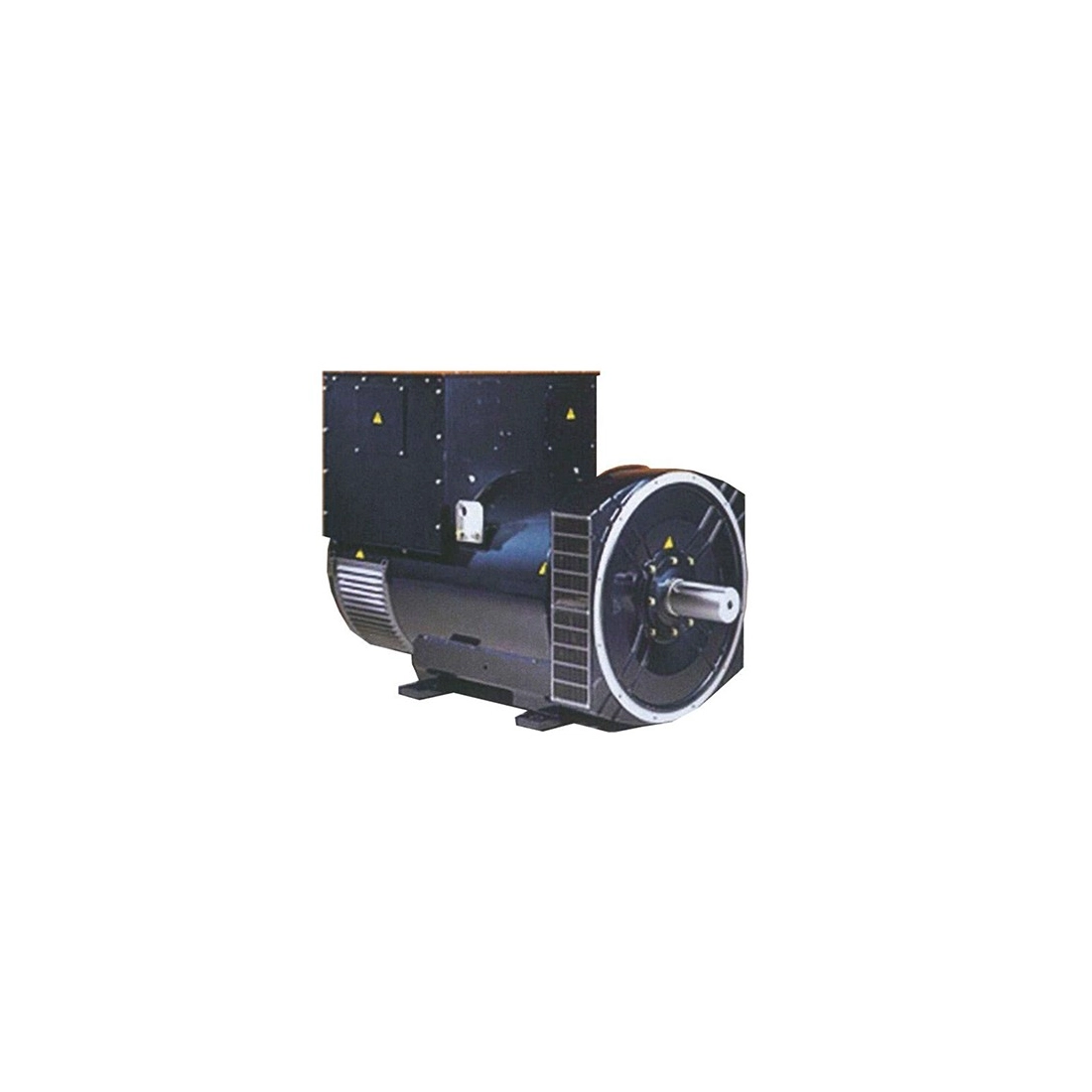

      DINGOL DG544F is a three-phase brushless alternator capable of delivering a maximum power of 600KVA complete with AVR voltage regulator.

      All the components that make up the DINGOL DG544F are subjected to a specific coating and/or impregnation process to safeguard the functionality of the generator and to protect the critical parts in the various conditions of use.

      On the test bench, DINGOL rotors are balanced to the best of BS6861: part 1 box 2.5. To allow operation with the lowest possible vibration.

      The THF (as defined by the directive BS4999 part 40) is better than 2%, while the TIF : Telephone Influence Factor as defined by the directive NEMA MG1-32) is better than 50.

      DINGOL DG544F are designed to guarantee a protection class of IP22 for industrial use suitable for protection against normal atmospheric conditions.

      DINGOL DG544F is equipped with twelve terminal blocks and are delivered pre-configured in three-phase configuration unless otherwise specified by the customer. However, if it is necessary to change the configuration, a table of possible configurations is shown on the back of the termination box cover.

      DINGOL DG544F is a brushless alternator, this feature together with the high efficiency of the AVR ensure a low level of interference with radio waves.

      AVR REGULATOR

      The AVR is an electronic device that regulates the alternating current coming from the alternator and transforms it into direct current.

      By means of a voltage regulator, it is possible to convert the alternating current into direct current to and thus avoid voltage and current surges.

      Automatic electronic voltage regulators are installed on both industrial and marine alternators. They allow to transfer in a constant way the necessary energy from the excitation stator to the main exciter independently from the power developed moment by moment by the generator. The high efficiency of the AVR ensures operation even when the residual excitation current is very low. The output current from the excitation rotor that is used to power the main exciter passes through a wave rectifier bridge. The rectifier itself is equipped with protection against overvoltages caused, for example, by a short circuit or a parallel made out of phase.

      TECHNICAL CHARACTERISTICS DINGOL DG544F

      Phase Type: Three Phase
      Power Supply Voltage: 400 - 440 V
      Frequency: 50 - 60 Hz
      Maximum Power (50 Hz): 480KW
      Maximum Power (50 Hz): 600KVA
      Maximum Power (60 Hz): 570KW
      Maximum Power (60 Hz): 713KVA
      Revolutions Per Minute: 1500 rpm
      Efficiency %: 94. 7
      Brush type: Brushless
      Voltage regulator: AVR
      Protection class: IP22
      Width: 1412 mm
      Length: 862 mm
      Height: 971 mm
      Dry weight: 1663 Kg

      Are you looking for an alternator with different characteristics? Here you can find the whole range DINGOL or other specialized brands.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
