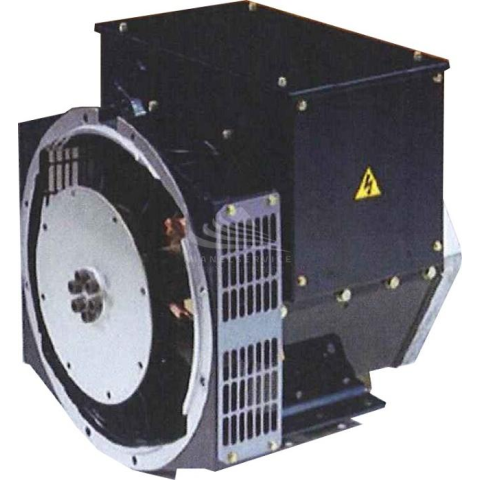

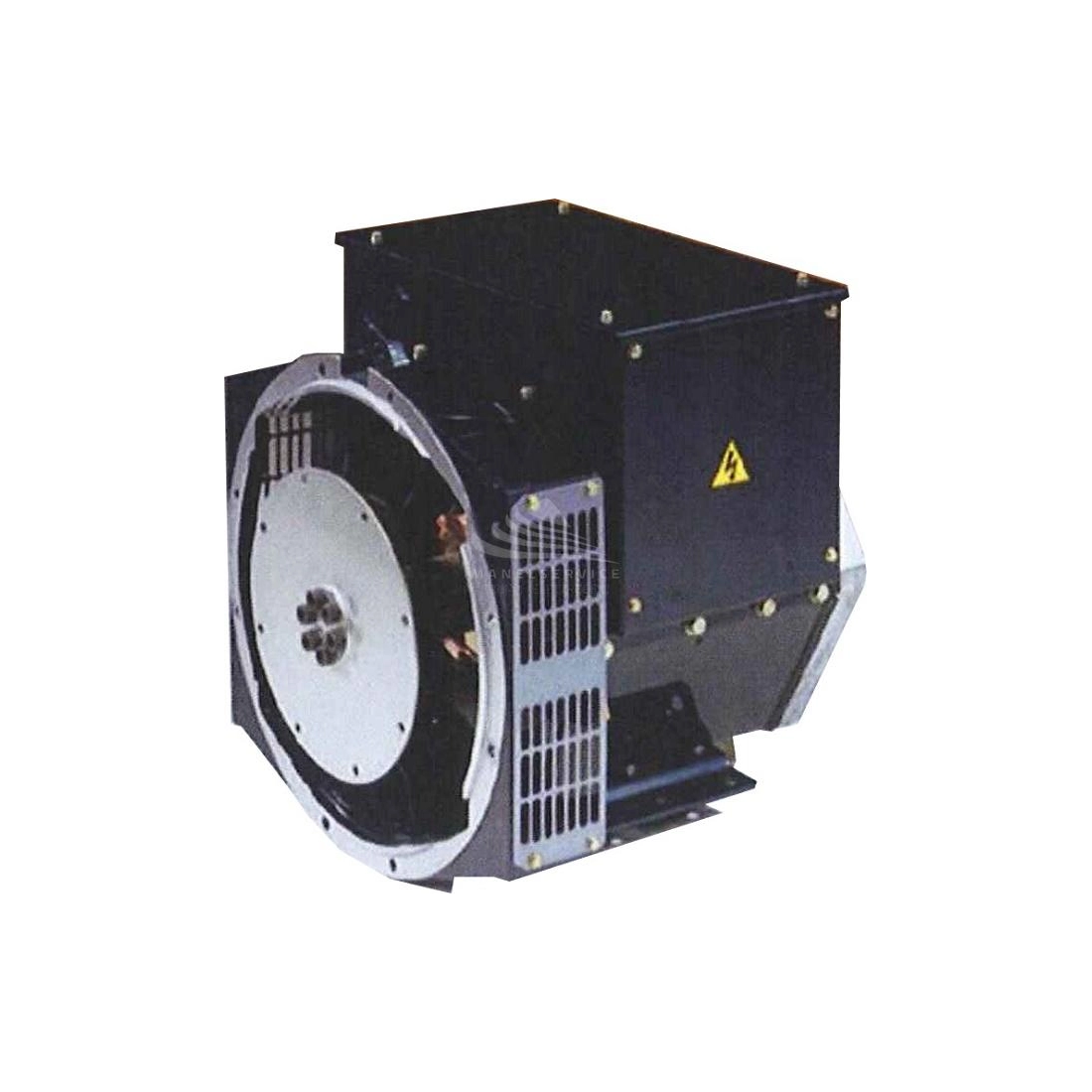

DINGOL DG164B Three-phase Alternator 11 KVA AVR
      DINGOL DG164B Three-phase Alternator 11 KVA AVR

      DINGOL DG164B Three-phase Alternator 11 KVA AVR

      DG164B

      Phase: Three Phase
      Voltage (V): 400
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): ----
      Three Phase Output (kVA): 11
      Constant Speed Alternator
      AVR
      Brushless
      Protection: IP22 (Optional IP23)
      Weight (Kg): 108

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      DG164B

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Three-phase power (KW)
      8.8
      Three-phase power (KVA)
      11
      Efficiency (%)
      79.4
      Protection degree
      IP22
      Length (mm)
      500
      Width (mm)
      480
      Height (mm)
      670
      Dry weight (Kg)
      108
      AVR
      Yes
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      DINGOL DG164B THREEPHASE 11KVA AVR

      DINGOL DG164B is a threephase brushless alternator capable of delivering a maximum power of 11KVA complete with AVR voltage regulator.

      DINGOL DG164B is equipped with a class H insulation system. All components are subjected to a specific coating and/or impregnation process to safeguard the functionality of the generator and protect critical parts in various conditions of use. The resins and paints used are suitable to make the surface of the static windings resistant, and to give mechanical strength to all rotating components.

      The DINGOL DG164B alternators respond optimally even in the presence of non-linear loads. This result is obtained by winding the electric cable of the stators with a pitch of 2/3, thus eliminating third order harmonics (3° - 9° - 15°). In fact, this also eliminates the excess neutral current that sometimes appears with larger pitch windings during parallel operation. A fully connected auxiliary buffer winding helps to drastically reduce parallel oscillations.

      DINGOL DG164B adopt the IP22 (NEMA1) standard for industrial use suitable to guarantee protection from normal weather conditions. For extreme weather conditions, the IP23 standard is also available, which provides protection against water up to 60° from vertical.

      DINGOL DG164B have twelve end terminals and are delivered pre-configured in threephase configuration unless otherwise specified by the customer. However, if it is necessary to change the configuration, a table of possible configurations is shown on the back of the termination box cover.
      The termination box has ample space for wiring and also houses the voltage regulator. Two removable panels provide quick and easy side access to the termination box.

      AVR VOLTAGE REGULATOR

      Electronic AVRs are installed indifferently on alternators intended for industrial use and those intended for marine use. They allow to transfer in a constant way the necessary energy from the excitation stator to the main exciter independently from the power developed instant by instant by the generator.

      The high efficiency of the AVR ensures operation even when the residual excitation current is very low. The output current from the excitation rotor that is used to power the main exciter passes through a wave rectifier bridge. The rectifier itself is equipped with protection against overvoltages caused, for example, by a short circuit or a parallel made out of phase.

      TECHNICAL FEATURES DINGOL DG164B

      Phase type: Threephase
      Voltage (V): 400
      Frequency (Hz): 50
      Revolutions per minute (rpm): 1500
      Singlephase power (kVA): ----
      Threephase power (kVA): 11
      Alternator type: Constant speed
      Voltage regulator: AVR
      Brushless
      Protection degree: IP22 (on request IP 23)
      Weight (Kg): 108

      Are you looking for an alternator with different characteristics? Here you can find the whole range DINGOL or other specialized brands.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
