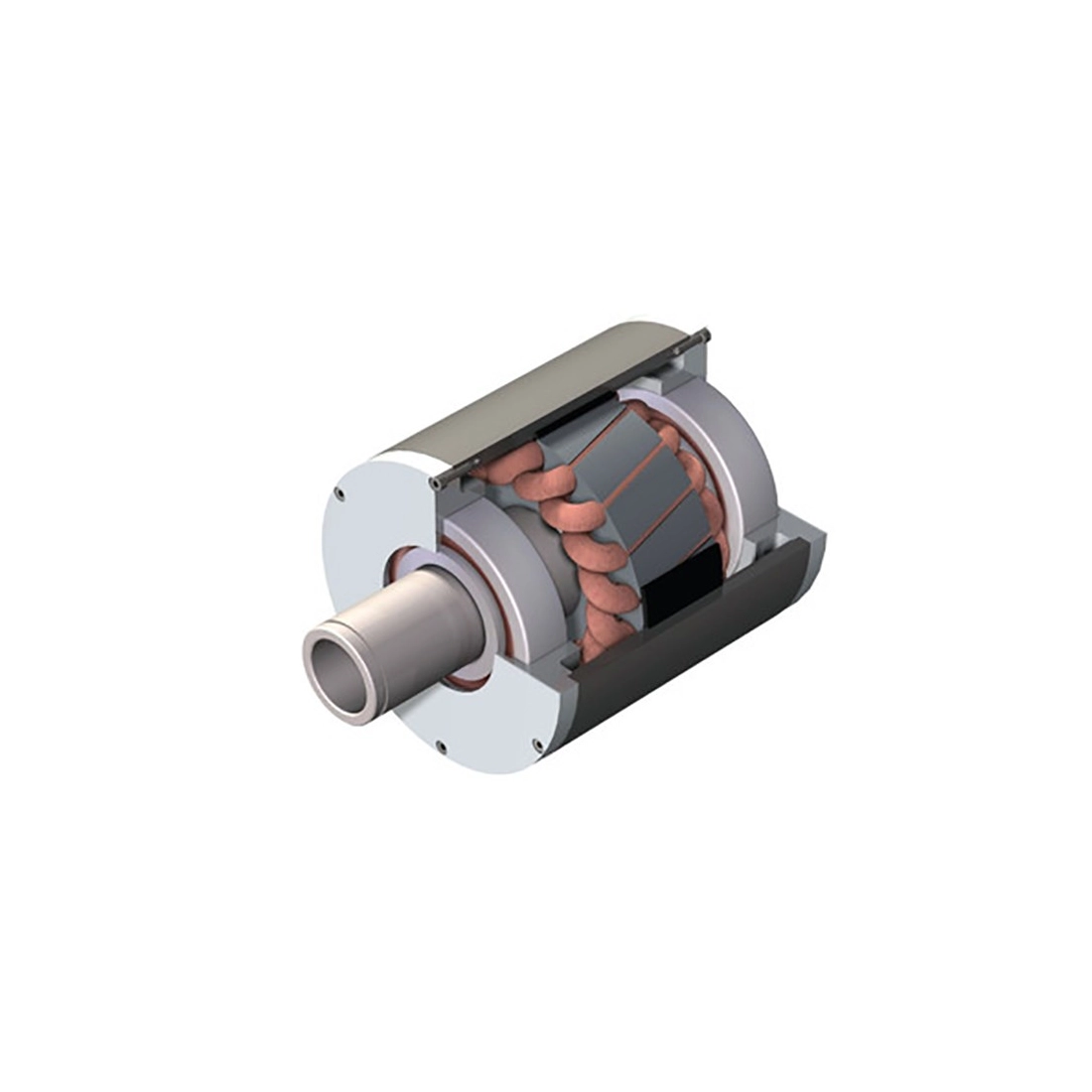

ALTERNATOR FOR WIND TURBINES

Reference PALE EOLICHE 20KW

Power: 20 KW
Voltage: 400 V
Nominal speed: 150 rpm
Maximum speed: 4200 rpm
Number of poles: 34
Magnets: NeFeB
Protection class: IP 55
Bearings: SKF low friction
Efficiency: > 92.5%
Weight: 410 Kg
Width: 470 mm
Length: 760 mm
Height: 470 mm
Bearing Size: 6024 2z
Maximum Axial Load: >2550

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Product Details
Description

Reference PALE EOLICHE 20KW

Data sheet

Phase: Three phase
Maximum power single phase (KW): 20
Voltage (V): 400
Engine rpm (rpm): 1500
Poles: 34
Efficiency (%): 92.5
Protection degree: IP55
Brushes: No
Weight (Kg): 410

Specific References

Condition New

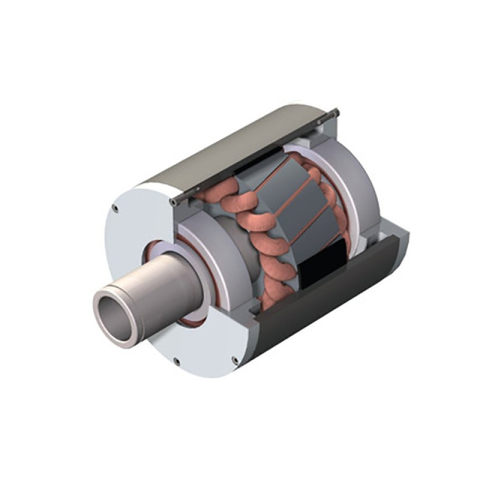

ALTERNATOR FOR WIND BLADES

Alternator for small wind turbine blades capable of delivering a maximum power of 20 KW, totally enclosed with protection class IP 55.

Small wind turbines are one of the most adaptable, flexible and easy-to-use technologies for generating sustainable and economical electricity.

Thanks to the oversized double bearing design, these alternators are the perfect solution for both vertical and horizontal wind turbines as they can be used as a rotating hub for the blades, resulting in the best solution for the integrator.

TECHNICAL FEATURES ALTERNATOR FOR WIND BLADES

Power: 20 KW
Voltage: 400 V
Nominal speed: 150 rpm
Maximum speed: 4200 rpm
Number of poles: 34
Magnets: NeFeB
Protection class: IP 55
Bearings: SKF low friction
Efficiency: > 92. 5%
Weight: 410 Kg
Width: 470 mm
Length: 760 mm
Height: 470 mm
Bearing Size: 6024 2z
Maximum Axial Load:gt >2550

Are you looking for an alternator with different characteristics? Enter our dedicated area by clicking Here

Pictures and technical data not binding.

alternator yuifytd suushi bdsi ububs ipub suibuibas bxu bsaibsbb iabis bsbba ypbspy bdyb uud fux bsbc cb asbs bcfb sufw eds uvyd vadsv oasvoy duvooy ups9 duq9b d9bq9d w9bqy fdhbsi bdiub7w epfjdsxa iccidni naè89 w8bqè bsab9 bceèw qb8cè8 bwabsu bubcup a8xèp9 wb8bè cabcb8 9bè8 èèhdè hè0as a0hd ncsah xd

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
