DINGOL DG444F Three-phase Alternator 400 kVA AVR
      DINGOL DG444F Three-phase Alternator 400 kVA AVR
      DINGOL DG444F Three-phase Alternator 400 kVA AVR
      DINGOL DG444F Three-phase Alternator 400 kVA AVR

      DINGOL DG444F Three-phase Alternator 400 kVA AVR

      DG444F SAE0 disk joint 11.5

      Phase type: Three phase
      Power supply voltage: 400 - 440 V
      Frequency: 50-60Hz
      Maximum power (50 Hz): 320KW
      Maximum power (50 Hz): 400KVA
      Maximum power (60 Hz): 364KW
      Maximum power (60 Hz): 455KVA
      RPM: 1500 rpm
      Efficiency %: 93.0
      Brushes Type: Brushless
      Voltage regulator: AVR
      Degree of protection: IP22
      Width: 1172 mm
      Length: 776 mm
      Height: 852 mm
      Dry weight: 1120 Kg

      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      DG444F SAE0 disk joint 11.5

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      320
      Maximum power three phase (KVA)
      400
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Efficiency (%)
      93
      Protection degree
      IP22
      Length (mm)
      1172
      Width (mm)
      776
      Height (mm)
      852
      Dry weight (Kg)
      1120
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

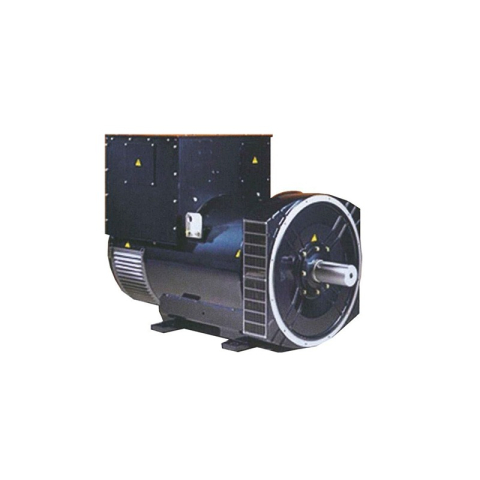

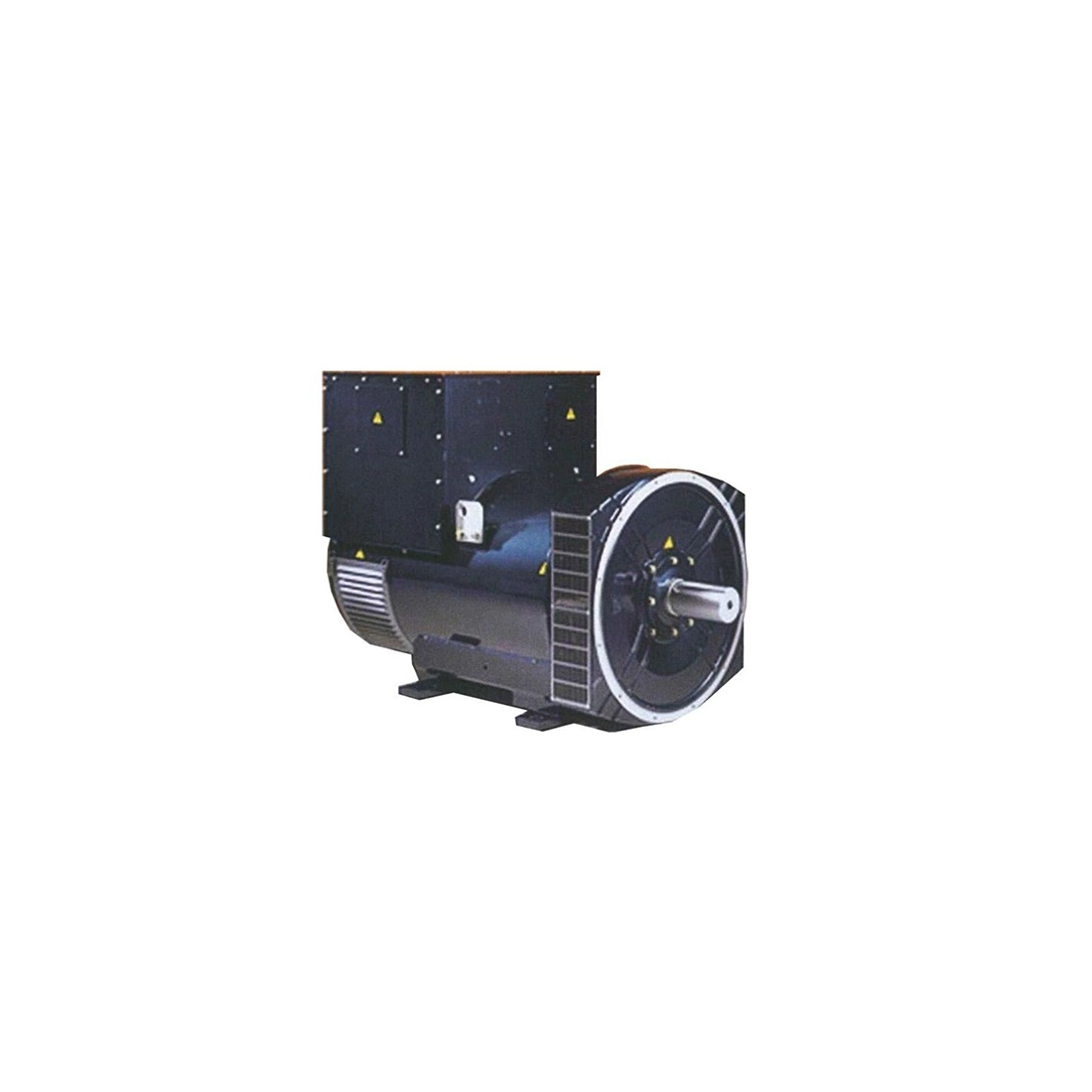

      DINGOL DG444F THREE-PHASE 400KVA AVR

      DINGOL DG444F is a three-phase brushless alternator capable of delivering a maximum power of 400KVA complete with AVR voltage regulator.

      All the components that make up the DINGOL DG444F alternator are subjected to a specific coating and/or impregnation process to safeguard the generator's functionality and protect its critical peers under various conditions of use.

      DINGOL DG444F responds optimally even in the presence of non-linear loads. This result is obtained by winding the electrical cable of the stators with a 2/3 pitch, thus eliminating third order harmonics (3° - 9° - 15°) from the voltage curve. This also eliminates the excess of neutral current that sometimes appears with larger pitch windings, during parallel operation.

      DINGOL DG444F are designed to guarantee IP22 protection class for industrial use suitable for protection from normal weather conditions.

      DINGOL DG444F is equipped with twelve terminal blocks and are delivered pre-configured in three-phase configuration unless otherwise specified by the customer. However, if it is necessary to change the configuration, a table of possible configurations is shown on the back of the termination box cover.

      DINGOL DG444F is a brushless alternator, this feature together with the high efficiency of the AVR ensure a low level of interference with radio waves.

      AVR REGULATOR

      The AVR is an electronic device that regulates the alternating current coming from the alternator and transforms it into direct current.

      By means of a voltage regulator, it is possible to convert the alternating current into direct current and thus avoid voltage and current surges.

      All synchronous machines, in order to work, need an electronic control system, and this device, known as AVR, guarantees the good working of the machine and above all of the electric network behind it.

      The high efficiency of the AVR ensures operation even when the residual excitation current is very low. The output current from the excitation rotor that is used to power the main exciter passes through a wave rectifier bridge.
      The rectifier itself is equipped with protection against overvoltages caused, for example, by a short circuit or a parallel made out of phase.

      TECHNICAL CHARACTERISTICS DINGOL DG444F

      Phase Type: Three Phase
      Power Supply Voltage: 400 - 440 V
      Frequency: 50 - 60 Hz
      Maximum Power (50 Hz): 320KW
      Maximum Power (50 Hz): 400KVA
      Maximum Power (60 Hz): 364KW
      Maximum Power (60 Hz): 455KVA
      Revolutions Per Minute: 1500 rpm
      Efficiency %: 93. 0
      Brush Type: Brushless
      Voltage Regulator: AVR
      Protection Degree: IP22
      Width: 1172 mm
      Length: 776 mm
      Height: 852 mm
      Dry Weight: 1120 Kg

      Are you looking for an alternator with different characteristics? Here you can find the whole range DINGOL or other specialized brands.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
