MECC ALTE
RCM (SCIOLTO) PER S20W
New product

Supply voltage: 50÷150Vac
Accuracy: 1%
Thermal stability: 2%
Max Cadd capacitor current: 8 Amp
Peak volt. between 5 and 6: 650V
Ext. pot. voltage regul. range: ±5%
Load application transient: 200ms ΔV < -10%
Load removal transient: 400ms ΔV <+10%

Technical features
Details

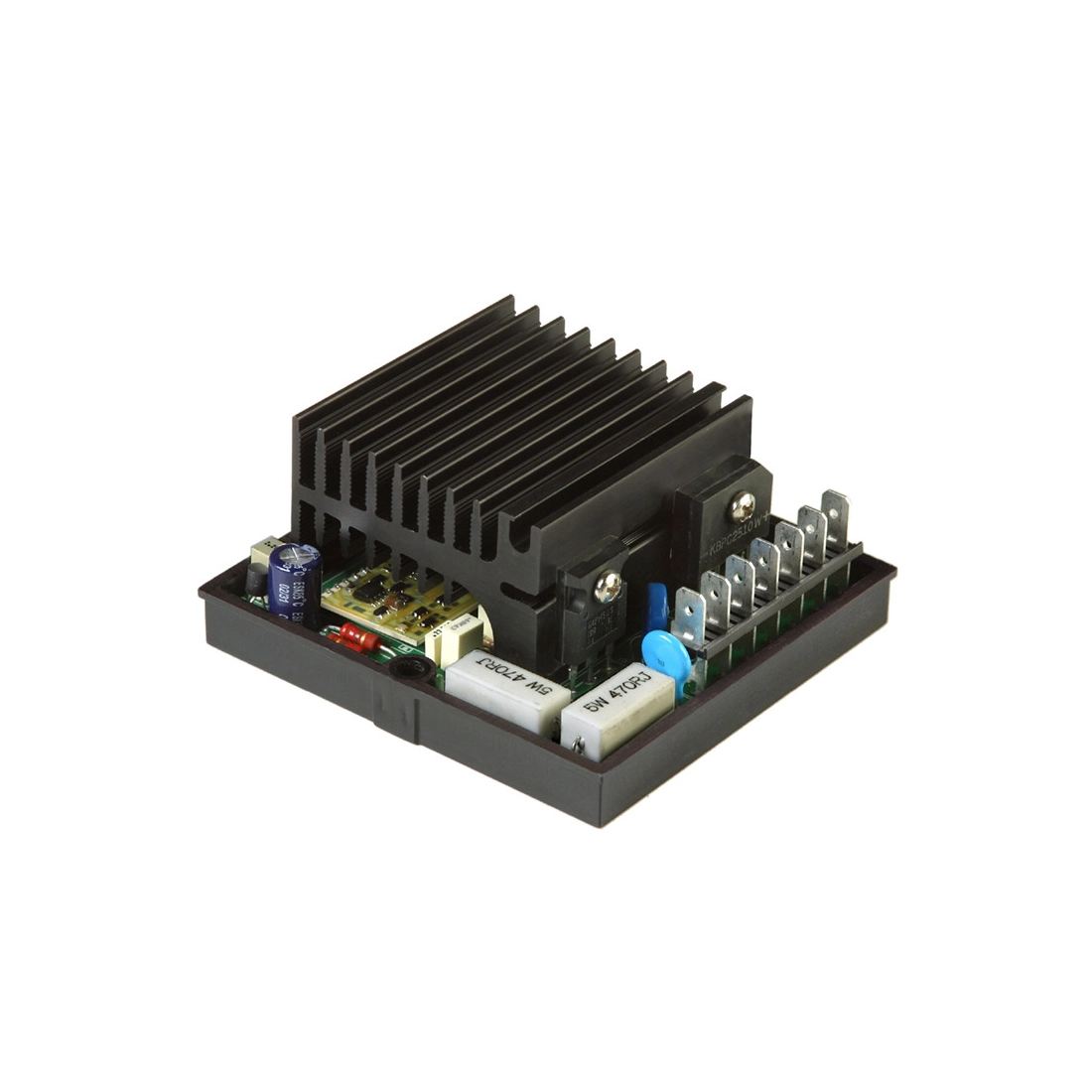

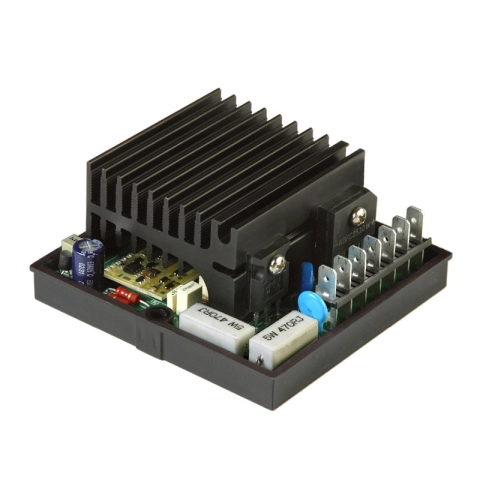

Automatic voltage regulator RCM (loose) for S20W alternators.

Prices valid only if ordered with alternators.

Not binding images and technical data.

Price
€184.00 tax incl.
€184.00 tax excl.
