VOLTAGE REGULATORS

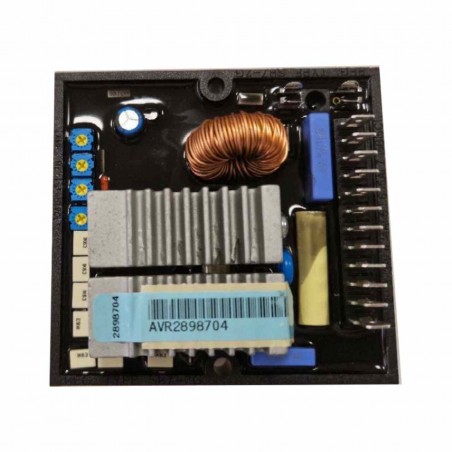

Input power supply: 180 to 280 Vac Regulation accuracy: ± 2.5% Maximum output current: 6 A Working temperature: -20°C ÷ +70°C Standard regulation: 100 ÷ 280 Vac

Automatic voltage regulator RCM (loose) for S15W alternators.

Automatic voltage regulator RCM (loose) for S16F alternators.

Automatic voltage regulator RCM (loose) for S16W alternators.

Automatic voltage regulator RCM (loose) for S20F/ES20F alternators.

Supply voltage: 50÷150Vac Accuracy: 1% Thermal stability: 2% Max Cadd capacitor current: 8 Amp Peak volt. between 5 and 6: 650V Ext. pot. voltage regul. range: ±5% Load application transient: 200ms ΔV < -10% Load removal transient: 400ms ΔV <+10%

Automatic voltage regulator RCM (loose) for T16F/ET16F alternators.

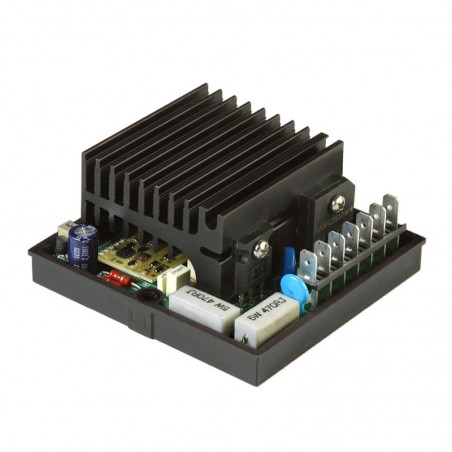

Automatic voltage regulator RCM (loose) for T20F/ET20F alternators.

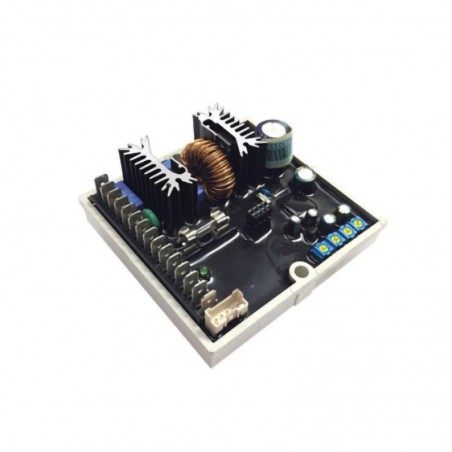

Supply voltage: 40 ÷ 270 VaC Frequency operating range: 12 Hz ÷ 72 Hz Voltage regulation accuracy: ± 1% Voltage regulation accuracy (stabilized conditions): ± 0,5% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Voltage adjustment range: 75 ÷ 300 Vac Transient voltage drop and overvoltage: within ± 15% Voltage recovery time:...

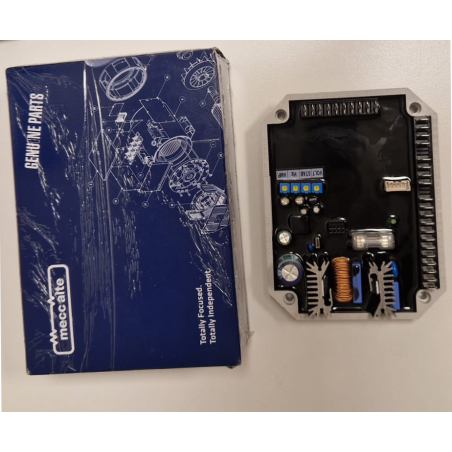

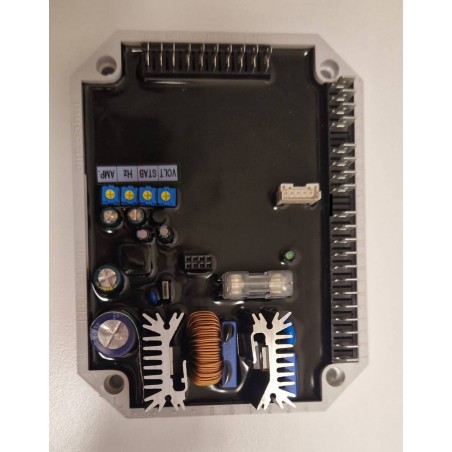

Power supply: 40 to 270 Vac Frequency operating range: 12 Hz to 72 Hz Regulation accuracy: ± 1% Regulation accuracy (stabilized conditions): ± 0.5% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Voltage regulation range: 75 ÷ 300 Vac Transient voltage drop and overvoltage: within ± 15% Recovery time: within ± 3% of set...

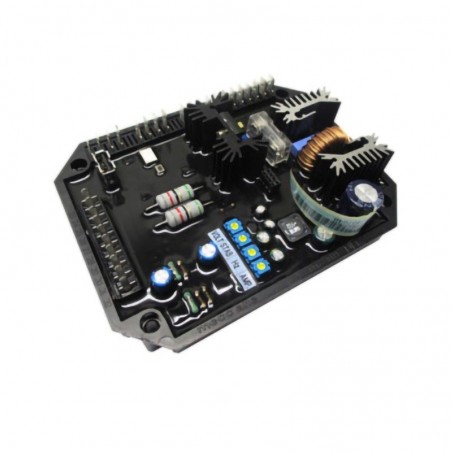

Power supply: 40 ÷ 270 Vac Frequency operating range: 15 Hz ÷ 72 Hz Regulation accuracy: ± 1% Maximum continuous output current: 5 Adc Ambient temperature: -25°C ÷ +70°C Regulation True RMS or average value measurement: 70÷280 Vac Transient voltage drop and overvoltage: within ± 15% Voltage recovery time: within ± 3% of the set value in less than 300...

Sensing input: 80~350 VAC single phase Power supply input: voltage 50~270 VAC, frequency 50/60 Hz Magnetic field output: max. Input 63 VDC @ 220 VAC, continuous 6A Regulation accuracy: < ±1% (with 4% motor regulation) Voltage storage: residual voltage greater than 5 VAC 25 Hz External voltage regulation: 100 K ohm 1/2 watt ±7% Unit power dissipation: max....

Frequency: 50/60 Hz Low speed protection Reference: Single-phase or Three-phase
