TECNOGEN SD180LE

Reference SD180LE

OUT OF STOCK

Soldering at 60%: 170
Maximum single-phase power: 5.5 KVA
Fuel: Diesel
Voltage: 230V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 110 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SD180LE

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 5.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: HONDA GC160
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 160
Number cylinders: 1
Cooling: Air
Welding current (A): 180 al 35% - 170 al 60%
Fuel tank capacity (L): 2
Consumption (L/h): 0,8 al 75% del carico
Running time (h): 2,5
Length (mm): 78
Width (mm): 52
Height (mm): 56
Dry weight (Kg): 27
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

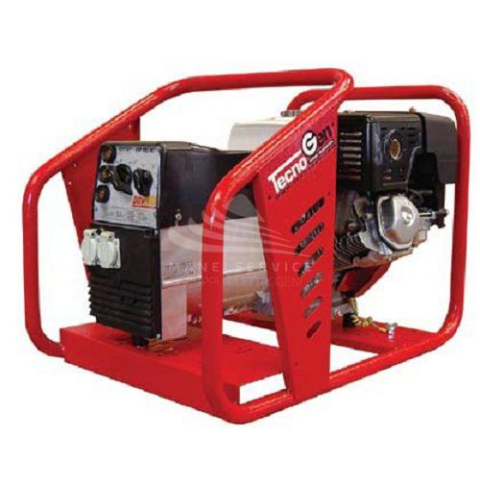

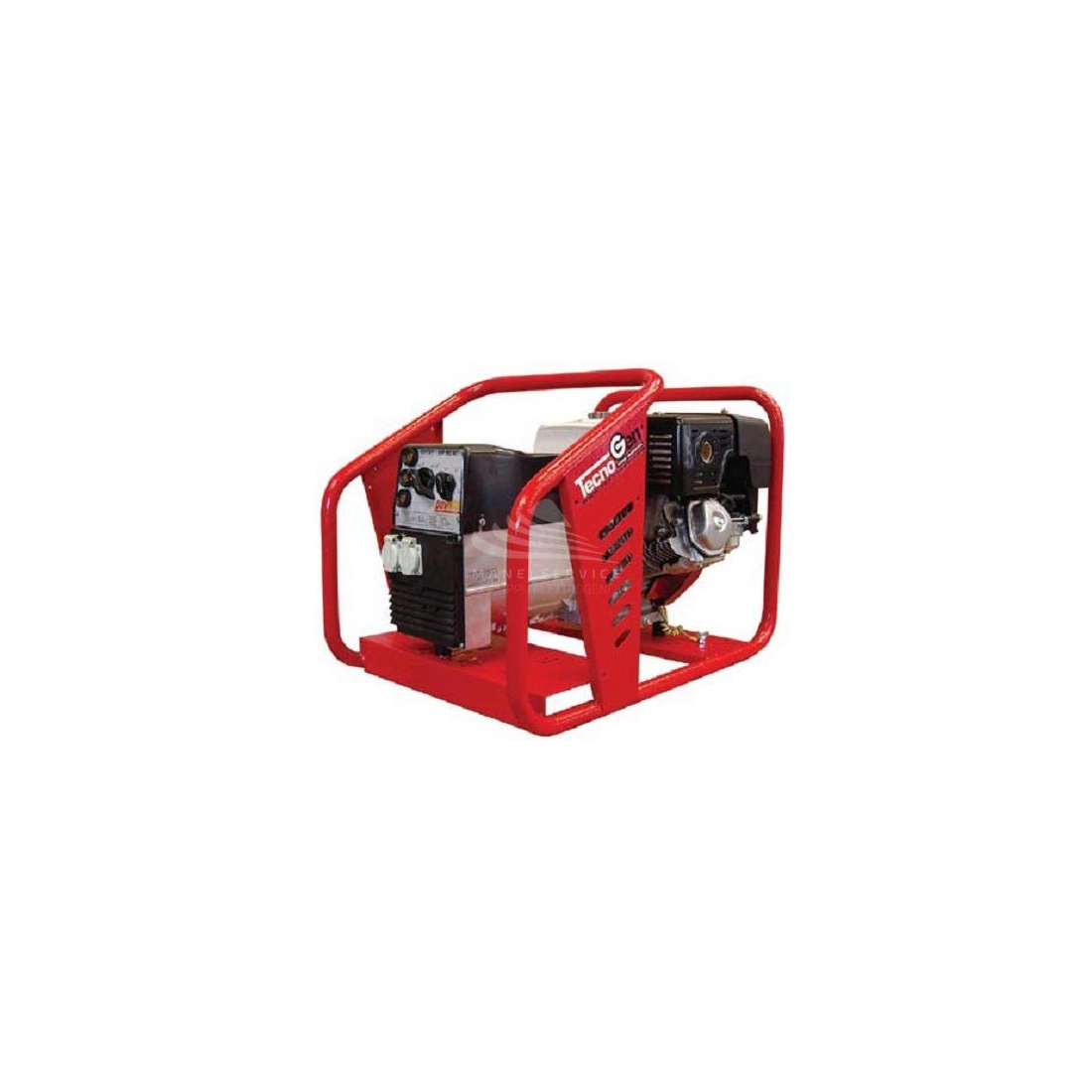

TECNOGEN SD180LE MOTORWELDER 5,5KVA

TECNOGEN SD180LE is equipped with a sturdy frame to protect a powerful Lombardini 15LD440 engine capable of delivering a power of 5.5KVA with a maximum load consumption of 2.4 L/h.

TECNOGEN SD180LE is with electric start with 12V battery supplied with acid or manual with self-winding, with control panel QM115 composed of single-phase CEE socket 2P+T 16A, thermal protection, Schuko socket 2P+T 16A.

TECHNICAL FEATURES TECNOGEN SD180LE

Soldering at 60%: 170
Maximum single-phase power: 5.5 KVA
Fuel: Diesel
Voltage: 230V
Engine: Lombardini 15LD440
Boosting: Electric
Length: 920 mm
Width: 520 mm
Height: 660 mm
Weight: 110 Kg

Are you looking for a motorwelding with different technical characteristics? Here you can find the full range of TECNOGEN and other specialized brands.

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
