MOSA GM 7-200 HBT MOTORWELDING 7KVA

Name: MOSA GM 7-200 HBT MOTORWELDING 7KVA
Brand: MOSA
SKU: C1TN7000
Price: 2275.3 EUR
Availability: InStock

Reference C1TN7000

Welding Current: 40A / 21.6V ÷ 200A / 20V
Duty cycle: 160A / 26.4V - 60%, 120A / 24.8 - 100%.
Trigger voltage (open circuit voltage): 85 V

NOMINAL OUTPUT POWERS
Max. three-phase power: 7 kVA (5.6 kW) / 400 V / 10.1 A
Three-phase power PRP: 6.5 kVA (5.2 kW) / 400 V / 9.4 A
Single-phase power PRP: 4 kVA / 230 V / 17.4 A

GENERAL SPECIFICATIONS
Tank capacity: 6.1 l
Autonomy (60% soldering): 2.9 h
Measured acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)

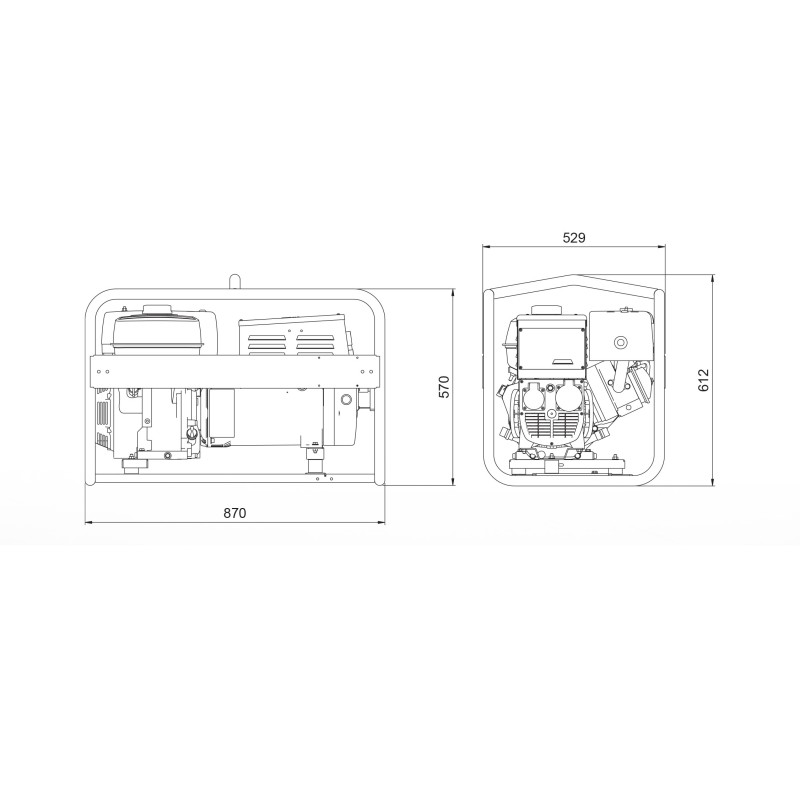

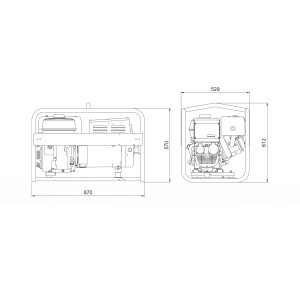

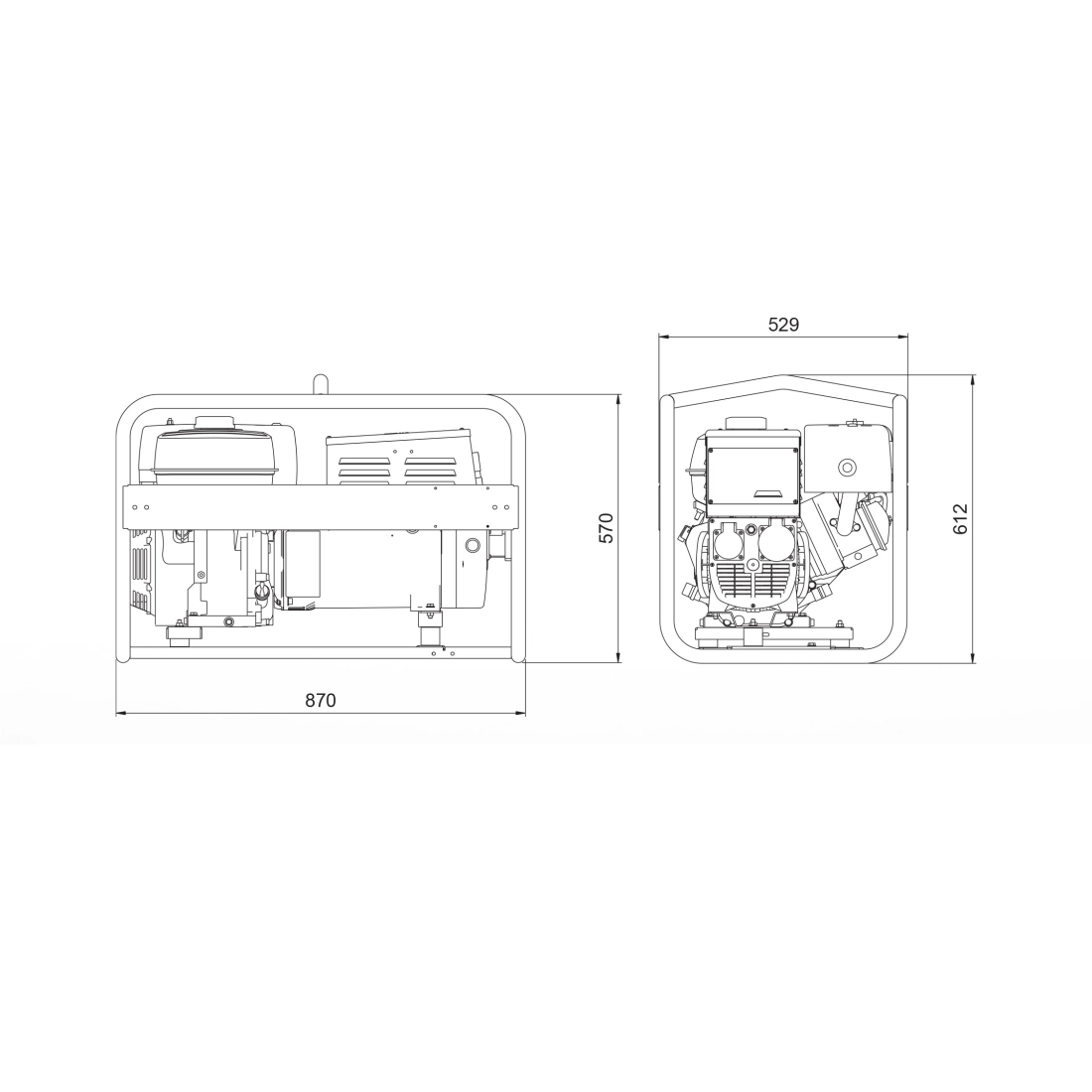

Width: 870 mm
Length: 525 mm
Height: 613 mm
Dry weight: 100 Kg

List price

4,636.00 € tax incl.

3,800.00 € tax excl.

Discounted Price

2,275.30 € tax incl.

1,865.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C1TN7000

Data sheet

Phase: Three phase
Continuous power single phase (KVA): 4
Maximum power three phase (KVA): 7
Continuous power three phase (KVA): 6.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1x 400V 16A 3P +N+T CEE1x 230V 16A 2P+T CEE
Engine: Honda GX390, 4 stroke, OHV
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Starting system: Manuale
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 40 - 200
Welding current (A): 160 (max) - 120 at 60%
Open circuit voltage (V): 85
Type of welding current: DC
Type of welding: MIG-MAG
Fuel tank capacity (L): 6.1
Consumption (L/h): 3.2 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 870
Width (mm): 525
Height (mm): 613
Dry weight (Kg): 100
Silenced: No
Super silenced: No
Engine manufacturer: Honda

Specific References

Condition New

MOSA GM7-200 HBT MOTORWELDING 7KVA

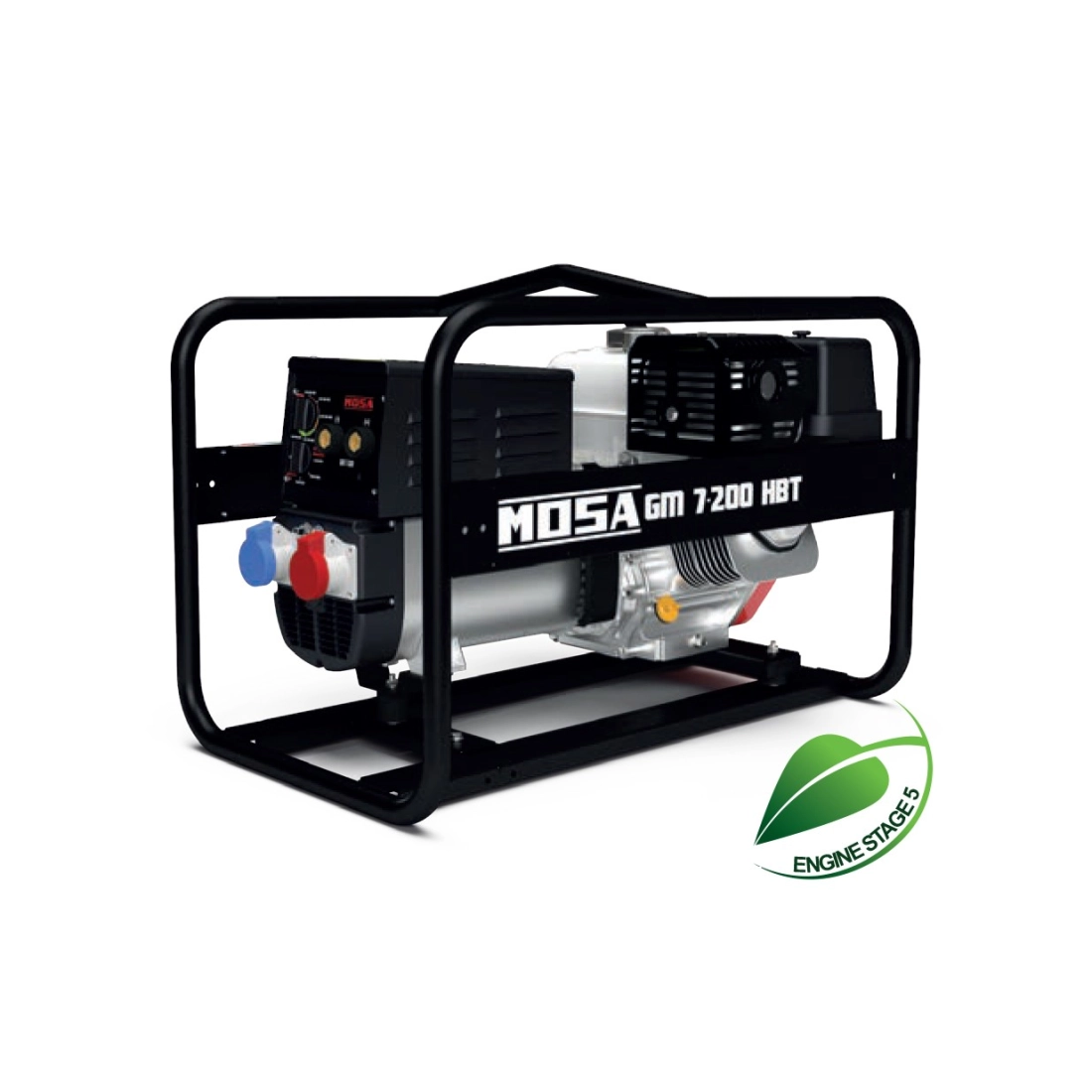

MOSA GM7-200 HBT is a three-phase motor welding machine equipped with a HONDA - GX 390 gasoline engine capable of delivering a power of 7KVA.

The MOSA GM7-200 HBM is a motor welder that performs the dual function of current source for arc welding and current generator for auxiliary generation.

The MOSA GM7-200 HBM motor welder is intended for industrial and professional use. Driven by an endothermic engine, it consists of several parts such as: the engine, the alternator, the electrical and electronic controls, the bodywork and a protective structure. The assembly is carried out on a steel structure on which elastic supports are foreseen in order to dampen vibrations and eventually eliminate resonances that would produce noise.

The HBM MOSA GM7-200 is built in accordance with IEC- EN 60974-10. It must be installed and operated in accordance with the following provisions in order to achieve electromagnetic compatibility.

TECHNICAL FEATURES MOSA GM7-200 HBM

Welding current: 40A / 21.6V ÷ 200A / 20V
Service: 160A / 26.4V - 60%, 120A / 24.8 - 100%
Trigger voltage (no-load voltage): 85 V

MOTOR DATA
Model: HONDA - GX 390
Net standby power: 8.2 kWm (11.1 hp)
Net PRP power: 6.4 kWm (8.7 hp )
Cylinders / Displacement: 1 / 389 cm³ (0.39 lt.)
Bore / Stroke: 88 / 64 (mm)
Compression ratio: 8. 2 : 1
RPM controller: Mechanical
110 % (Standby Output): 3.5 lt./h
100 % PRP: 3.2 lt./h
75 % PRP: 2.4 lt./h
50 % PRP: 1.6 lt./h
Cooling system: Air
Sump oil capacity: 1.1 lt.

NOMINAL OUTPUT POWER
Three-phase max Output: 7 kVA (5.6 kW) / 400 V / 10.1 A
Three-phase PRP Output: 6.5 kVA (5.2 kW) / 400 V / 9.4 A
Single-phase PRP Output: 4 kVA / 230 V / 17.4 A

GENERAL SPECIFICATIONS
Tank capacity: 6.1 l
Autonomy (60% soldering): 2. 9 h
Measured acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Width: 870 mm
Length: 525 mm
Height: 613 mm
Dry weight: 100 Kg

Are you looking for a welding machine with different technical characteristics? Here you can find the full range of MOSA or other brands specializing in the field.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
