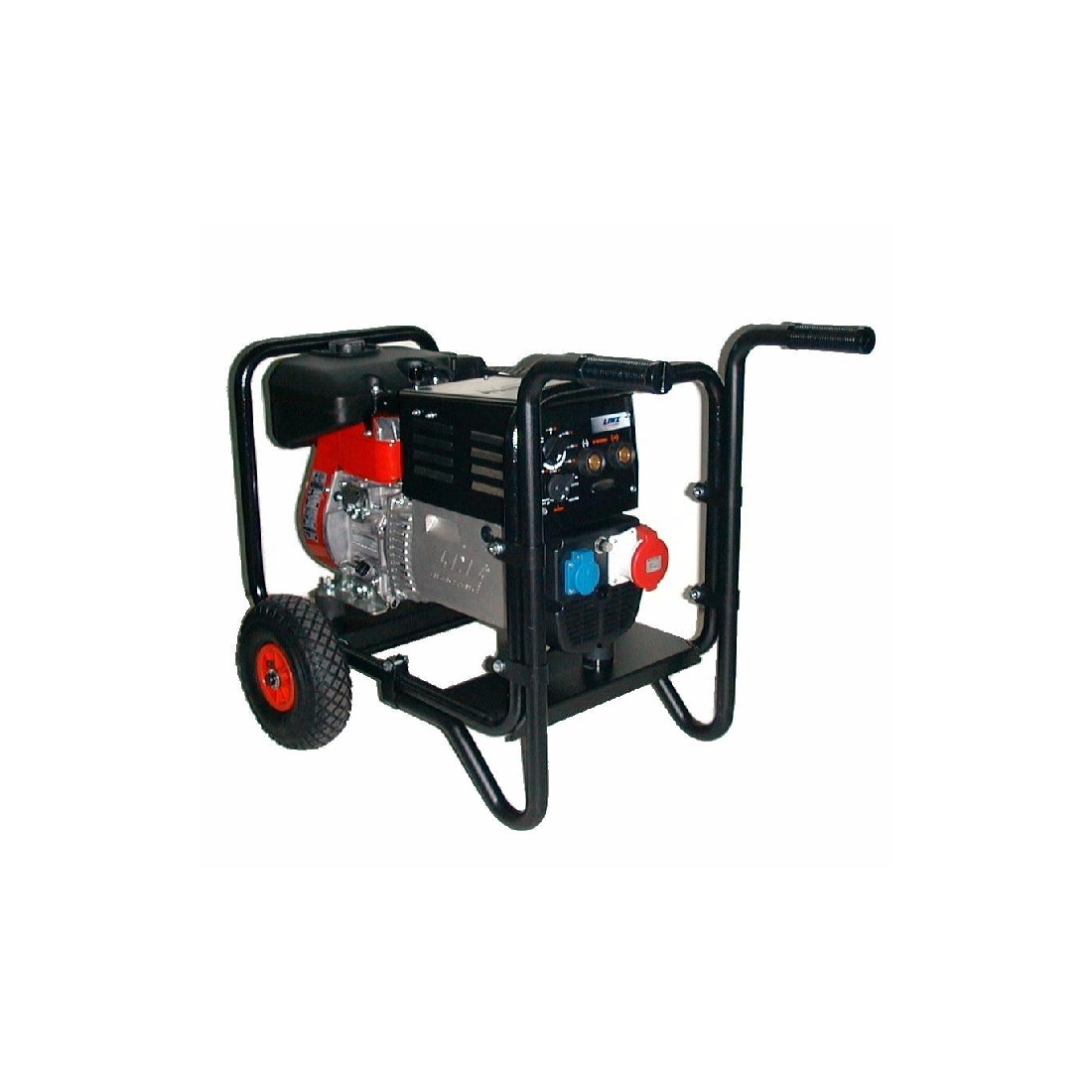

CGM 170SB MOTORWELDING MACHINE WITH STRAP START
CGM 170SB /
OUT OF STOCK
Type of phase : 230V single phase.
Phase type : Singlephase
Maximum singlephase output : 2.4 KW / 3 KVA
Engine : Honda GX270
Fuel : Gasoline
Cylinders : 1
Displacement : 270 cm3
Maximum engine power : 9 HP / 6.6
Welding at 50%: 170
Tank : 6 Lt
Socket : N.2 x 230V SCHUKO
Starting : Manual breakaway
Acoustic power : 70 dB(A) at 7 m
Voltage : 230 V
Frequency : 50 Hz
Power factor : 0. 8
Welding current : 45-170 A
Number of turns : 3000 rpm
Cooling : Air
Autonomy : 3.8 h
Consumption at 3/4 load : 1. 6 L/h
Oil capacity : 1 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 1
Welding voltage : 21.8 - 26. 6 V
Power consumption : 9.5 hp / 7.5 KW
Voltage regulation : Capacitor
Width : 740 mm
Length : 450 mm
Height : 500 mm
Weight : 76 Kg
List price
tax incl.
tax excl.
Discounted Price
1,550.62 € tax incl.
1,271.00 € tax excl.
CGM 170SB /
Data sheet
- Phase
- Single phase
- Maximum power single phase (KW)
- 2.4
- Maximum power single phase (KVA)
- 3
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 2 x 230V SCHUKO
- Engine
- HONDA GX270
- Engine rpm (rpm)
- 3000
- Starting system
- Manual recoil
- Engine capacity (cm³)
- 270
- Number cylinders
- 1
- Oil capacity (L)
- 1
- Cooling
- Air
- Alternator
- With brushes
- Poles
- 2
- Welding current (A)
- 170A al 50%
- Welding voltage min/max (V)
- 21.8 / 26.6 V
- Fuel tank capacity (L)
- 6
- Consumption (L/h)
- 1.6 al 75% del carico
- Running time (h)
- 3.8
- Acoustic pressure
- 70 dB(A) at 7 m
- Length (mm)
- 450
- Width (mm)
- 740
- Height (mm)
- 500
- Dry weight (Kg)
- 76
- Silenced
- Yes
- Super silenced
- No
Specific References
New

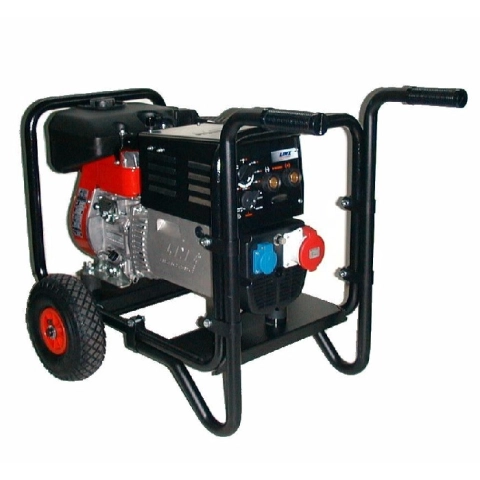

CGM 170SB MOTORWELDING MACHINE WITH STRAP START
CGM 170SB is a single-phase, light and versatile motorwelder, equipped with a Honda GX270 gasoline engine capable of delivering a maximum power of 3KVA.
The CGM 170SB motorwelder is equipped with Honda gasoline engines with recoil start. Mounted on a fixed base and running at 3000 rpm, they are suitable for welding and supply 230V single-phase.
On request: careened, hooded, silenced and special equipment units. The motorwelding machines CGM 170SB are suitable for a not continuous emergency use, it is not recommended to use them for more than 6 continuous hours and for more than 500 hours/year.
TECHNICAL CHARACTERISTICS MOTORWELDING MACHINE CGM 170SB
Type of phase : 230V single phase.
Phase type : Singlephase
Maximum singlephase output : 2.4 KW / 3 KVA
Engine : Honda GX270
Fuel : Gasoline
Cylinders : 1
Displacement : 270 cm3
Maximum engine power : 9 HP / 6.6
Welding at 50%: 170
Tank : 6 Lt
Socket : N.2 x 230V SCHUKO
Starting : Manual breakaway
Acoustic power : 70 dB(A) at 7 m
Voltage : 230 V
Frequency : 50 Hz
Power factor : 0. 8
Welding current : 45-170 A
Number of turns : 3000 rpm
Cooling : Air
Autonomy : 3.8 h
Consumption at 3/4 load : 1. 6 L/h
Oil capacity : 1 Lt
Alternator : SINCRO, with brushes
Number of Poles : 2
Number of Phases : 1
Welding voltage : 21.8 - 26. 6 V
Power consumption : 9.5 hp / 7.5 KW
Voltage regulation : Capacitor
Width : 740 mm
Length : 450 mm
Height : 500 mm
Weight : 76 Kg
Are you looking for a motorwelding machine with different technical characteristics? Here you can find the whole range of CGM or other specialized brands
Images and technical data are not binding and may be subject to revision by the supplier.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
