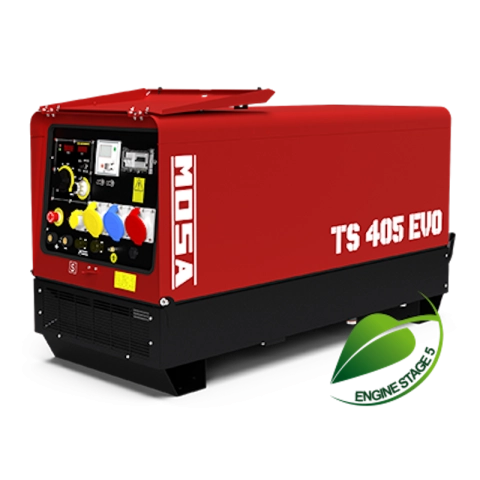

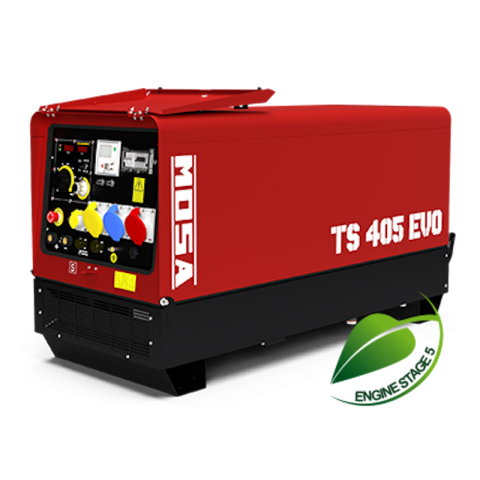

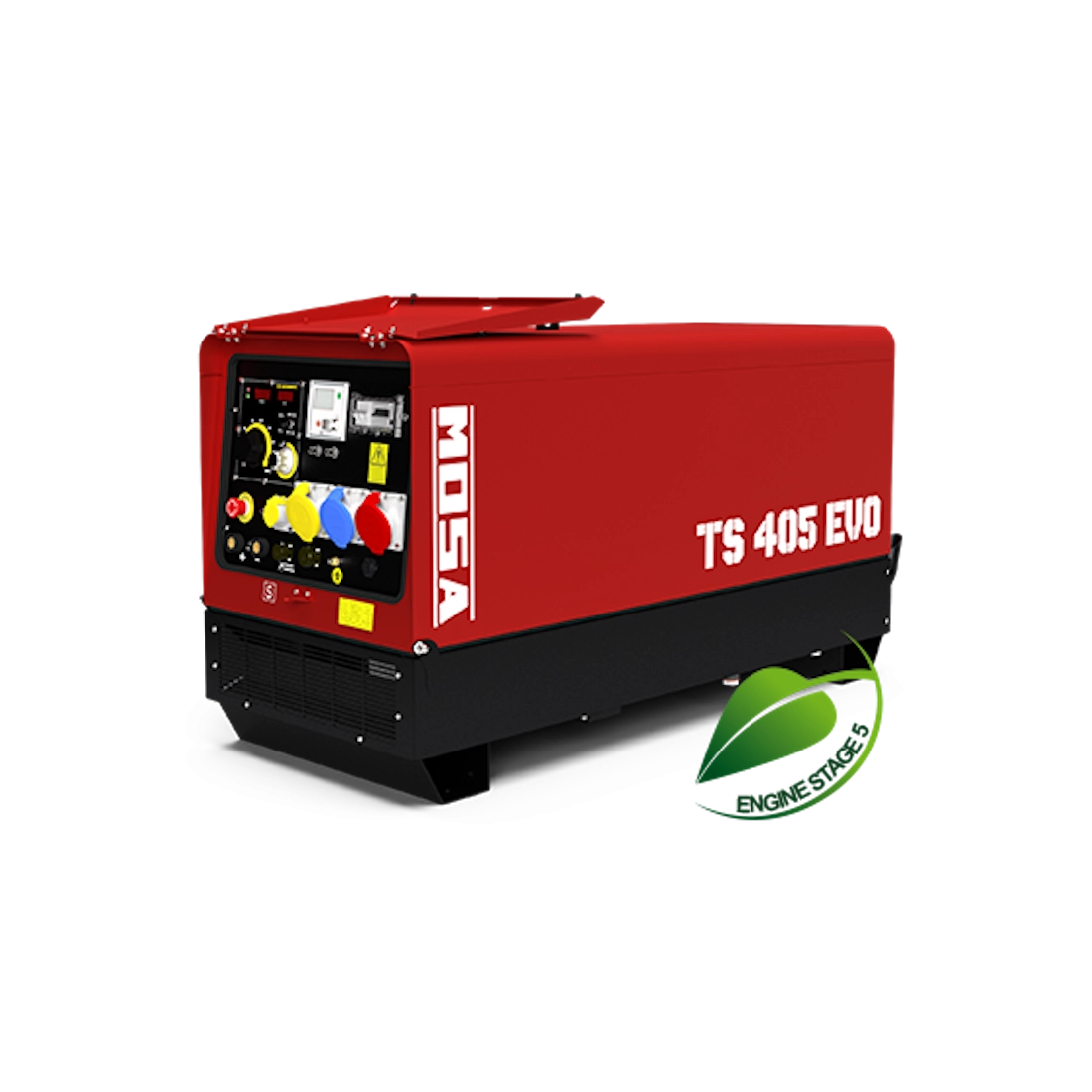

MOSA TS405 EVO
The MOSA TS405 EVO is equipped with a Kohler diesel engine and an asynchronous, brushless alternator with a speed of 3000 rpm.
It is a motor welder with a compact casing, suitable for a wide range of applications including the construction of metal structures, pipelines and construction site use.
Welding EVO CONTROL:
Continuous welding current control
Welding scale switch
Connector for remote control Automatic switching when connector is plugged in.
Welding output sockets: 1x Welding (+) 400A
1x Welding (-) 400A
EVO INSTRUMENT:
Continuous welding current control
Continuous arc penetration control
Welding scale switch
Connector for remote control. Automatic switchover when inserting the connector.
Welding output sockets: 1x Welding (+) 400A
1x Welding (-) 400A
2x Display - 4 digits
Pre-setting welding current and arc
Current and voltage measurement during welding phase
VRD ON/OFF switch
Connector for connection to
PL400 box
Available versions:
400 V - 230 V - 48 V version
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Single-phase power: 5 kVA/kW / 48 V / 104 A
Sockets : 1 x 400V 32A CEE 1 x 230V 32A CEE 1 x 230V 16A CEE 1x 48V
400V- 230V - 110V version
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Single-phase power: 4 kVA/kW / 110 V / 36.4 A
Sockets: 1x 400V 32A CEE 1x 230V 32A CEE 1x 110V 32A CEE 1x 110V 16A CEE
EVO INSTRUMENT version
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Single-phase power: 4 kVA/kW / 110 V / 36.4 A
Sockets: 1x 400V 32A CEE 1x 230V 32A CEE 1x 110V 32A CEE 1x 110V 16A CEE
Version EVO INSTRUMENT 400V - 230V - 48V|CEE
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Single-phase power: 5 kVA/kW / 48 V / 104 A
Sockets : 1 x 400V 32A CEE 1 x 230V 32A CEE 1 X 230V 16A CEE 1x 48V
Instrument version - 400V - 230V - 48V AUS
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Single-phase power: 5 kVA/kW / 48V / 104 A
Sockets: 1 x 400V 32A AUS 1 x 230V 32A AUS 1 x 230V 15A AUS
AUXILIARY GENERATION:
OUTPUT 1 - Power kVA (Power kW) Max: 14 kVA (11.2 kW)
OUTPUT 2 - Power kVA (Power kW) Max: 8 KVA - KW
OUTPUT 3 - Power kVA (Power kW) Max: 4 KVA - KW
OUTPUT 4 - Power kVA (Power kW) Max: 5 KVA - KW
Technical characteristics of the MOSA TS405 EVO motor welding machine:
Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
Single-phase power: 8 kVA/kW / 230 V / 34.8 A
Voltage: 230 V / 400 V
Tank capacity: 38 l
Autonomy (100% welding): 11.5 h
Guaranteed sound power level Lwa (LpA pressure): 96 dB(A) (71 dB(A) @ 7 m)
Measured sound power Lwa (LpA pressure): 94.7 dB(A) (69.7 dB(A) @ 7 m)
Dry weight: 455 kg
Dimensions (LxWxH): 1433x710x945 mm
Frequency: 50 Hz
Fuel: Diesel
Engine: KOHLER KDW 1003
Motor speed: 3000 rpm
Duty: 325 A - 60% / 300 A - 100%
Trigger voltage: 75 V
Discover all our motorwelding by clicking here!
Images and technical data Mosa TS405 EVO not binding.
