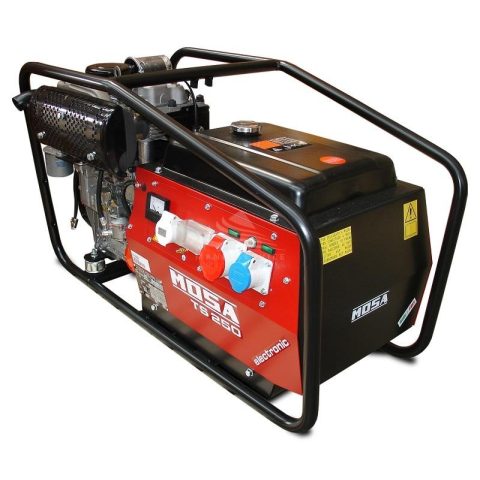

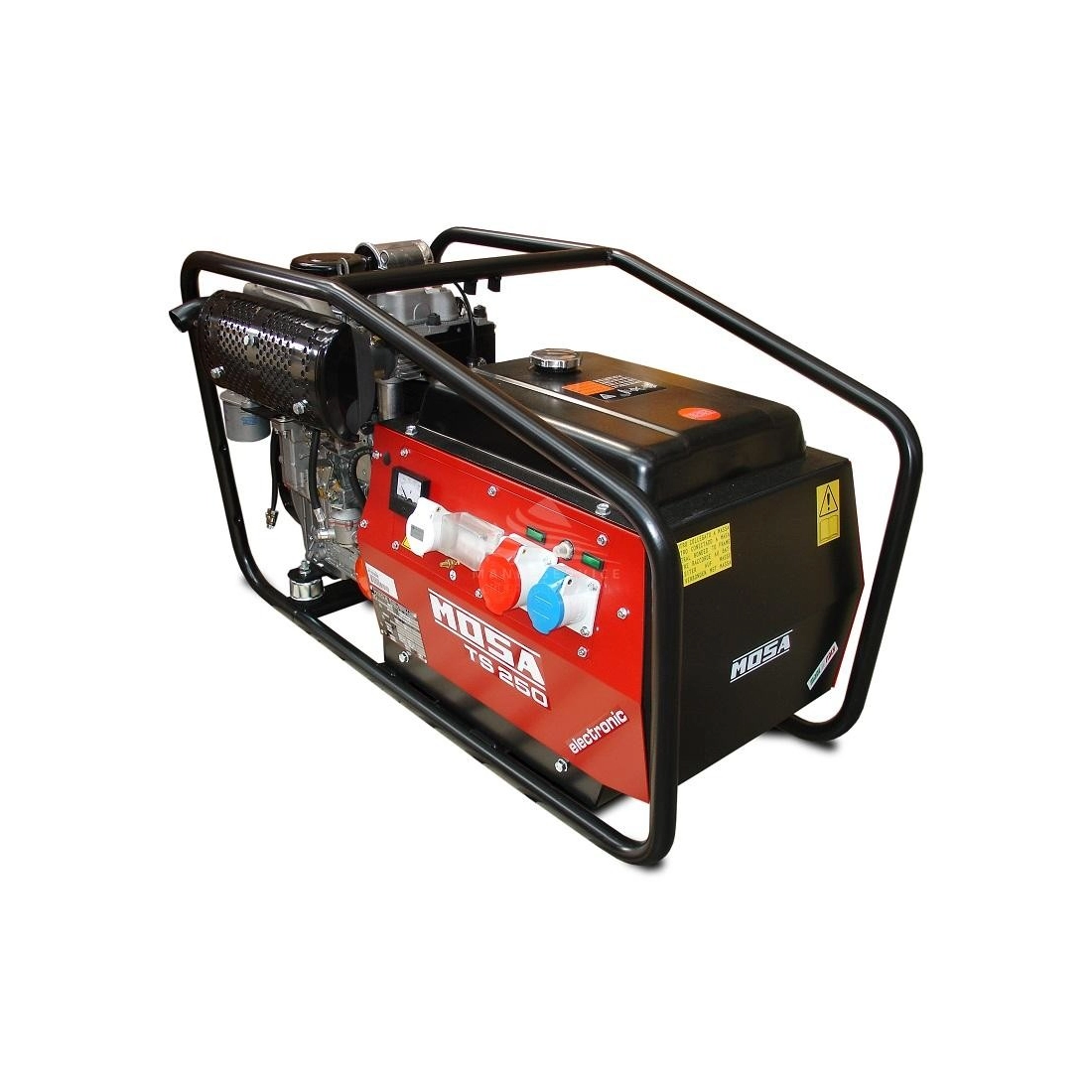

MOSA TS 250 KD-EL MMA Arc Welder with 6.5 kVA Kohler Engine

Reference C0LA5060 /

OUT OF STOCK

Fuel: Diesel
Phase Type: Single Phase / Three Phase
Voltage: 48 V / 230 V / 400 V
Maximum Single Phase 230 V power (kVA): 4.5
Maximum Three Phase 400 V power (kVA): 6. 5
Welding Current (A): 250 A at 35% - 200 A at 60%
Welding Current Type: DC
Welding Type: MMA STICK
Electrodes Supported: all maximum diameter 6 mm
Silenced: NO
LENGTH (mm): 1050
WIDTH (mm): 530
HEIGHT (mm): 630
Dry weight (Kg): 200
Electrical power

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C0LA5060 /

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.6
Maximum power single phase (KVA): 4.5
Maximum power three phase (KW): 5.2
Maximum power three phase (KVA): 6.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 230V 16A 2P+T CEE - 1 x 48V 32A 2P CEE
Engine: Kohler KD 477/2, 4 stroke
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 954
Number cylinders: 2
Cooling: Air
Inyección: Direct
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 20 - 250
Welding current (A): 250 at 35% - 200 at 60%
Open circuit voltage (V): 70
Maximum diameter electrodes (mm): 6
Type of welding current: DC
Type of welding: MMA
Fuel tank capacity (L): 9
Consumption (L/h): 1.7
Running time (h): 5.3
Acoustic power: 103 dB(A)
Acoustic pressure: 78 dB(A) at 7 m
Length (mm): 1050
Width (mm): 530
Height (mm): 630
Dry weight (Kg): 200
Silenced: No
Super silenced: No
Engine manufacturer: Kohler

Specific References

Condition New

MOSA TS250 KD/EL MOTORWELDING MACHINE 6,5KVA

Mosa TS250 KD/EL is a light and efficient motor welding, equipped with a KOHLER KD477-2 Diesel engine capable of delivering a power of 6,5KVA.

The Mosa TS250 KD/EL motorwelder is equipped with electronic control of the welding current. Equipped with a KOHLER KD477-2 diesel engine and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase or single-phase generator set up to 6,5 kVA.

The welding current is continuous and has two scales (20-100A / 90-190A) which are selected by connecting two different sockets. The current is continuous and can weld with electrodes up to 6 mm in diameter.

MOSA TS250 KD/EL is also available with an optional remote welding control that allows adjustment of the welding current up to 20 meters from the welder The Mosa TS250 KD/EL can weld any type of electrode (rutile, base, cellulose) up to 4 mm in diameter.

Technical characteristics MOSA TS250 KD/EL

Fuel: Diesel
Phase Type: SinglePhase / ThreePhase
Voltage: 48 V / 230 V / 400 V
Maximum SinglePhase 230 V power (kVA): 4.5
Maximum ThreePhase 400 V power (kVA): 6.5
WeldingCurrent (A): 250 A at 35% - 200 A at 60%
WeldingCurrent Type: DC
WeldingType: MMA STICK
Electrodes Supported: all maximum diameter 6 mm
Silenced: NO
LENGTH (mm): 1050
WIDTH (mm): 530
HEIGHT (mm): 630
Dry weight (Kg): 200
Electrical power

Are you looking for a product with different technical characteristics? Here you can find the entire range MOSA or other brands specializing in the field.

Images and technical data are not binding.

""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
