MASE MW 15/400 I-K MOTORWELDER 15KVA STAGE V

Name: MASE MW 15/400 I-K MOTORWELDER 15KVA STAGE V
Brand: MASE
SKU: MW 15/400 I-K STAGE V
Price: 13750 EUR
Availability: InStock

Maximum singlephase power: 10 KVA
Continuous use single-phase power: 5 KVA
Maximum three-phase power: 15 KVA
Continuous use threephase power: 13.5 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: Kubota D1105-E
Emissions Standard: STAGE V
Starting: Electric
Trigger voltage: 70 V
Maximum electrode diameter: 6 mm
Intermittance at 35%: 370A - 35V
Intermittance at 40%: 450A - 29V
Intermittance at 60%: 350A - 34V
Tank capacity: 38 l
Consumption: 4. 9 Lt/h at 75% load
Length: 1590 mm
Width: 730 mm
Height: 920 mm
Weight: 450 Kg

Prezzo

16,775.00 € tax incl.

13,750.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MASE MW 15/400 I-K MOTORWELDER 15KVA STAGE V

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MASE MW 15/400 I-K MOTORWELDER 15KVA STAGE V

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MASE MW 15/400 I-K MOTORWELDER 15KVA STAGE V

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MW 15/400 I-K STAGE V

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KVA): 10
Continuous power single phase (KVA): 5
Maximum power three phase (KVA): 15
Continuous power three phase (KVA): 13.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Kubota D1105
Emissions Regulations: STAGE V
Engine rpm (rpm): 3000
Ignition: Recoil
Starting system: Electric
Number cylinders: 3
Cooling: Water
Alternator: Gen Set asynchronous self-excited, self-protected
Open circuit voltage (V): 70
Maximum diameter electrodes (mm): 6
Fuel tank capacity (L): 38
Consumption (L/h): 4.9 at 75% of the load
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 1590
Width (mm): 730
Height (mm): 920
Dry weight (Kg): 450
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: No

Specific References

Condition New

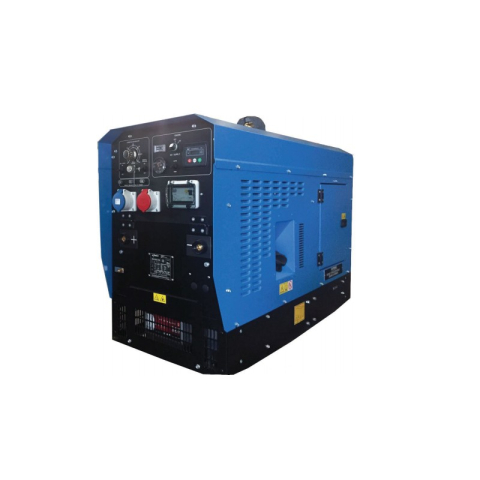

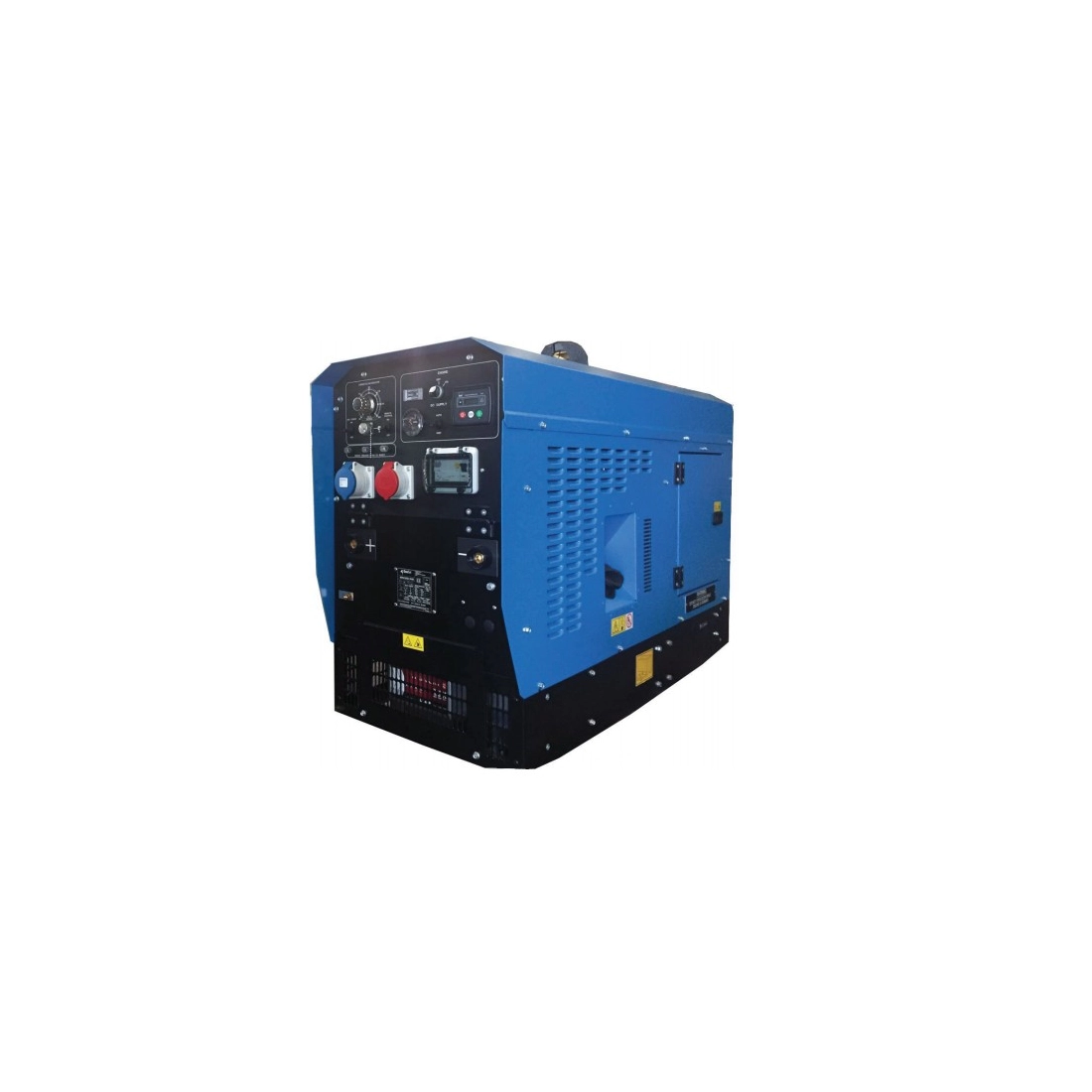

MASE MW 15/400 I-K MOTORWELDING 15KVA

The MASE MW15/400I-K single/threephase MotorWelding is equipped with a diesel-powered Kubota Stage V engine capable of delivering a maximum threephase power of 15KVA.

Mase MotorWelding, consisting of an electric generator and a welder, are often mounted on trolleys to be easily transported. They are usually used for outdoor applications or, if it is problematic to the electric supply, they can also be used indoors.

The Mase single/threephase motorwelder is asynchronous, self-excited and self-protected, capable of delivering a threephase output of 15KVA by means of a Kubota D1105-E Stage V 24.6 HP motor. The motor of feeding is to electric start and it is cooled to water, endowed with a tank with a capacity of 38 Lt that allows an autonomy with a load of 75% of 4.9 Lt/h around

Serial equipment

• Forced arc selector
• Socket for remote control
• Automatic motor stop device with warning lights for
- battery charge failure
- low fuel level
- low oil pressure
- high water temperature
• Automatic return to idle speed in the absence of load
• 12V battery
• Fuel level indicator
• Counter
• Voltmeter
• Differential thermal switch
• Power protections
• 1 three-phase socket CEE 400V - 32A
• 2 single-phase sockets CEE 230V - 32A
• Auto/Idle diverter
• Engine oil extraction pipe
• Central lifting hook
• Drillable base
• Emergency stop button

TECHNICAL FEATURES OF THE MASE MW15/400I-K 15KVA

Maximum singlephase output: 10KVA
Continuous singlephase output: 5KVA
Maximum threephase output: 15KVA
Continuous threephase output: 13.5KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: Kubota D1105-E
Emissions Standard: STAGE V
Starting: Electric
Trigger voltage: 70 V
Maximum electrode diameter: 6 mm
Intermittance at 35%: 370A - 35V
Intermittance at 40%: 450A - 29V
Intermittance at 60%: 350A - 34V
Tank capacity: 38 l
Consumption: 4. 9 Lt/h at 75% load
Length: 1590 mm
Width: 730 mm
Height: 920 mm
Weight: 450 Kg

Are you looking for a MotorWelding with different technical characteristics? Here you can find the full range of MotorWelding MASE or other specialized brands

Images and technical data are not binding.
