MOSA CS 230 YSX CC / CV Multiprocess Welding Machine Stage 5 Engine

Mosa CS230YSX CC-CV Motor welder with electronic adjustment of the welding current in Chopper technology (high frequency 30 kHz), which allows a more stable arc welding and a higher metallographic quality.

Equipped with a Yanmar L 100 N engine and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase and single-phase generator.
The Mosa CS230YSX CC-CV Motosaldatrice is able to weld any type of electrode (basic, rutile, cellulosic) up to 4 mm and takes full advantage of the engine power thanks to a technique developed by MOSA, called '' Power Optimizer ''.

It is possible to select welding in CC or CV mode. In CC mode it is possible to choose between a characteristic with adjustable arc penetration (arc force), suitable for electrode welding and a strictly constant current characteristic, suitable for TIG (scratch striking) welding. CV (constant voltage) mode is suitable for WIRE WELDING (solid or cored).
Mosa CS230YSX CC-CV is a super-silenced engine driven welder with a compact fairing, specially designed to reduce noise emission. It is suitable for a wide range of applications.

TECHNICAL CHARACTERISTICS OF MOSA CS 230 YSX CC / CV

Fuel: Diesel
Phase type: Single-phase / Three-phase
Voltage: 48 V / 230 V / 400 V
Maximum single-phase power (kVA): 5
Maximum three-phase power ( kVA): 10
Welding current (A): 350 A at 35% - 300 A at 60% - 250 A at 100%
Type of welding current: CC - CV
Type welding field: MMA / TIG / STICK / MIG (Optional)
Silenced: Silent 70 dB (A) @ 7 m
LENGTH (mm): 1230
WIDTH (mm): 690
HEIGHT (mm): 925
Dry weight (Kg): 345

discover all our welders and engine driven welders by clicking here!

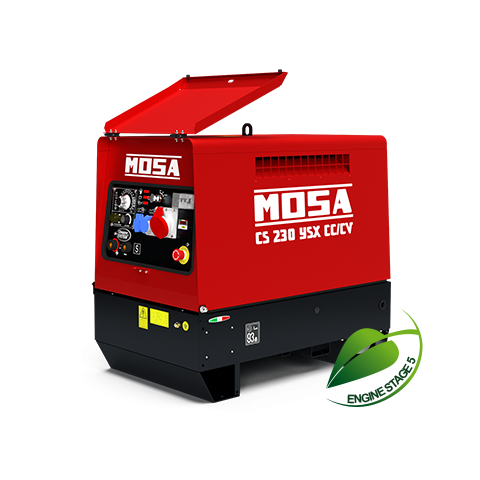

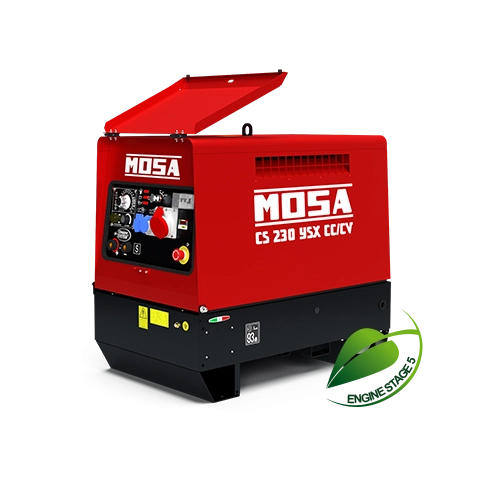

The image is purely indicative.
